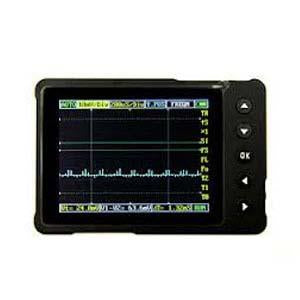

The DSO Nano V3 is a pocket-size compatible 32bit digital storage oscilloscope. Based on ARM -M3, it's equipped with 320*240 color display, SD card, USB port and recharging function. It's compact, simple to operate; meets the basic demands of school lab, electronic troubleshooting, etc.
Features:
- Portable and lightweight
- Color display
- Waveform storage and playback
- 6 triggering modes
- 200 Khz Analog Bandwidth
- Built-In signal generator
- Display: 2.8" color TFT LCD
- Vertical Sensitivity: 10mv/Div ~ 10V/Div (x1 probe), 0.5V/Div ~ 10V/Div (x10 probe)
- Input-Resistance: >500KO
- Max. Input Voltage: 80Vpp(x1 probe) 400Vpp(x10 probe)
- Triggering Mode: Auto, Normal Single, None
- Auto Measurement: Frequency, cycle, duty Vpp, Vram, Vavg, DC Voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor, Triggering Sensitivity Cursor; Hold/Run
- Inbuilt Test Signal: 10 Hz-1MHz (1-2-5 stepping)
- PC Connection Interface: Connection through USB
- Recharging Method: Through USB interface
- Dimensions: 105mm x 53mm x 8mm
