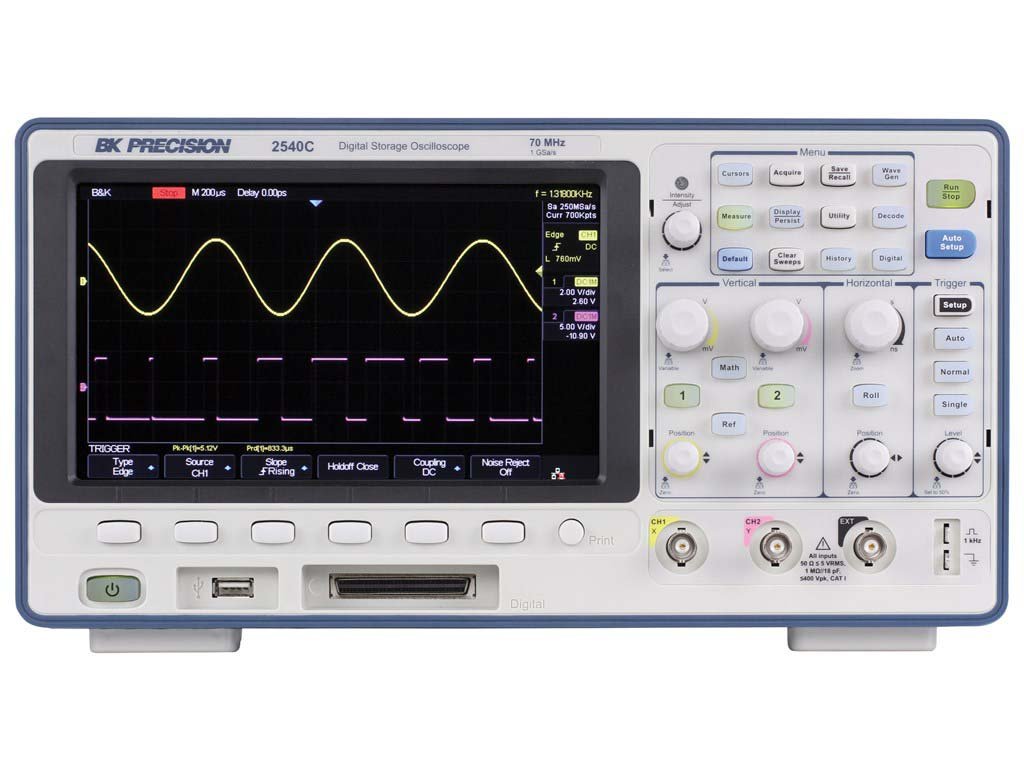

BK Precision 70 MHz Digital Storage Oscilloscope - Model 2540C

The BK Precision 2540C Digital Storage and Mixed Signal Oscilloscope offers 70MHz bandwidth in a 2-channel configuration and 1 GSa/s sample rate, a high waveform update rate up to 60,000 waveforms per second and a maximum memory depth of 14 Mpts. The user interface features an 8 inch high-resolution TFT-LCD display and a comprehensive set of oscilloscope controls.

The 2540C is equipped with a built-in 25 MHz function/arbitrary waveform generator (AWG), allowing seamlessly generation of standard and arbitrary waveforms as well as noise, cardiac, Gaussian pulse, and exponential rise/fall waveforms. This model is equipped with standard LAN and USBTMC-compliant USB device ports.

The 2540C offers a comprehensive set of tools to capture signal anomalies, decode serial bus protocols, and help speed up debug and analysis..

• 70 MHz bandwidth
• 1 GSa/s sample rate
• 14 Mpts maximum record length
• 60,000 wfms/s maximum waveform capture rate
• Built-in Function and Arbitrary Waveform Generator
• Large 8 inch widescreen display with 256-level color gradient
• Selectable 50 and 1 input coupling
• Standard LAN and USBTMC-compliant USB device port
• Kensington security slot
• 4.8inch x 7.2inch x 13.4inch
• 7.3 lbs
• Segmented acquisition history waveform record function
• Record length up to 80,000 frames
• Trigger types: Edge, Slope, Pulse, Video, Window, Runt, Interval, Dropout, Pattern, Serial
• High speed hardware-based pass/fail testing function and masking
• Software provided for remote PC control
• Multi-language user interface and built-in context sensitive help
• 36 automatic measurements supporting statistics, gating, math, history and reference measurements
