Digilent

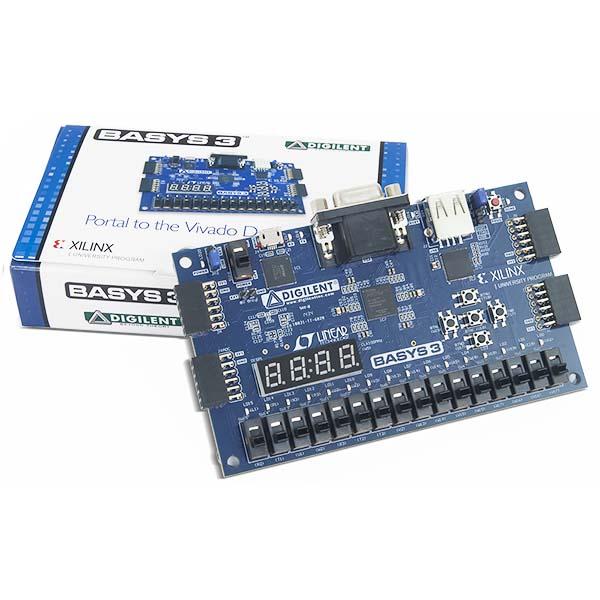

Basys 3 Artix-7 FPGA Trainer Board: Recommended for Introductory Users

SKU: 01DIG410183

  • Sale
  • Regular price $149.00


The Basys 3 is an entry-level FPGA development board designed exclusively for Vivado Design Suite, featuring Xilinx Artix-7 FPGA architecture. Basys 3 is the newest addition to the popular Basys line of FPGA development boards, and is perfectly suited for students or beginners just getting started with FPGA technology. The Basys 3 includes the standard features found on all Basys boards: complete ready-to-use hardware, a large collection of on-board I/O devices, all required FPGA support circuits, a free version of development tools, and at a student-level price point.

Stats:

Device/IC: Xilinx Artix-7 FPGA (XC7A35T-1CPG236C)

Connector(s):

  • USB A
  • USB micro-B
  • Four 12-pin Pmod ports
  • VGA


Features:

  • Features the Xilinx Artix-7 FPGA: XC7A35T-1CPG236C
  • 33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)
  • 1,800 Kbits of fast block RAM
  • Five clock management tiles, each with a phase-locked loop (PLL)
  • 90 DSP slices
  • Internal clock speeds exceeding 450 MHz
  • On-chip analog-to-digital converter (XADC)
  • Digilent USB-JTAG port for FPGA programming and communication
  • Designed Exclusively for Vivado Design Suite (Vivado Design Suite WebPACK edition can be downloaded for free from Xilinx). Expanded features are available through purchase of the Design Edition.
  • Free WebPACKâ„¢ download for standard use.
  • Micro-B USB cable not included.
  • Serial Flash
  • USB-UART Bridge
  • 12-bit VGA output
  • USB HID Host for mice, keyboards and memory sticks
  • 16 user switches
  • 16 user LEDs
  • 5 user pushbuttons
  • 4-digit 7-segment display
  • 4 Pmod ports: 3 Standard 12-pin Pmod ports, 1 dual purpose XADC signal / standard Pmod port
