Digital Stroboscope with RS232 Interface, 20 to 10,500 Flashes Per Minute

SKU: 01DT2269

  • Sale
  • Regular price $235.00

The DT-2269 is a microprocessor circuit design, high accuracy, digital readout STROBOSCOPE. Adjust the "Flash Rate" via the push button keyboard, easy operation with memory recall function. It is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance, production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action.

  • Push keyboard setting.
  • External trigger input.
  • RS232 computer interface output.
  • Flash rate:
    • 5 to 10,500 RPM/FPM.
  • 0.083 to 175 Hz
  • Display 14 mm LED, 6 digits.
  • High resolution.
  • Main function : Fine adjust, Coarse adjust, Multiply by 2, Divide by 2, Fast finder, Memory recall.
  • Memorize 10 sets of measuring data.
  • Crystal time base and microprocessor circuit, it is not necessary to perform any calibration procedures.

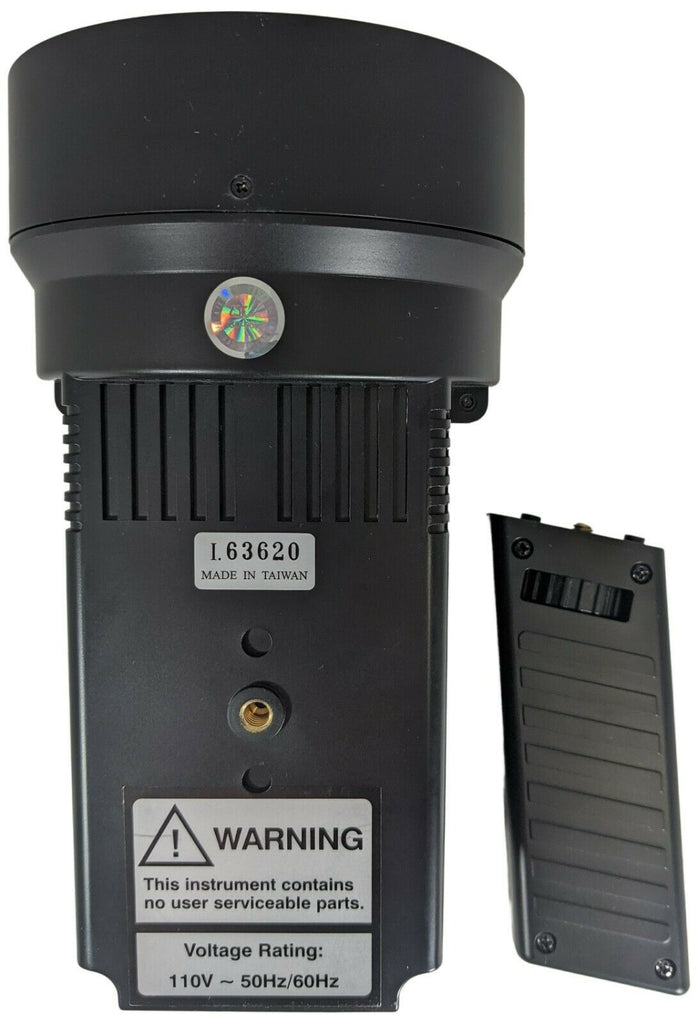

  • Voltage rating: 110V ~ 50Hz/60Hz
