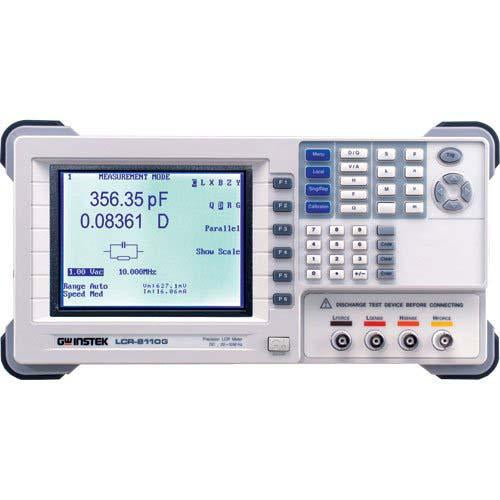

GW Instek LCR-8110G 10 MHz Precision LCR Meter with RS-232/GPIB Interface, 1 MHz Test Frequency

GW Instek

GW Instek LCR-8110G 10 MHz Precision LCR Meter with RS-232/GPIB Interface, 1 MHz Test Frequency

SKU: 01LCR8110

  • Sale
  • $8,743.00
The LCR-8110G from GW Instek is a LCR-8000G series 10MHz high precision LCR meter. It provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and voltage/current monitoring. The multi step function allows on-screen programming of customized measurement sequence with pass/fail indication. Each program includes 30 test steps and each test step can be set with selected parameters and test limits. Under multi step operation, a tedious work routine can be done step by step automatically just at a press of a button. With graph mode, LCR-8110G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. It measures 0.1nH to 100KH inductance, 0.01pF to 1F capacitance, 0.00001 to 9.9999 dissipation factor, 0.1 to 9999.9 quality factor, 10ns to 1000s admittance/conductance/susceptance and -180° to +180° phase angle. Features:
  • 0.1% basic accuracy and 6 digits measurement resolution
  • 320 x 240 dot matrix LCD display with intuitive interface
  • Full measuring functions with DUT V/I monitor, 100 ohm input impedance
  • PASS/FAIL function ( abs, % or delta) with judgment alarm
  • DC resistance measurement, multiple step mode, standard RS-232C/GPIB interface
  • 0.1mohm to 100Mohm resistance/impedance/reactance measurement range
  • AC 115V(+10% / -25%), 230V(+15% / -14%) (selectable), 50/60Hz power source
  • 330mm (W) x 170mm (H) x 340mm (D) dimension and 5Kg weight
  • Measurement in absolute value or percentage difference from the nominal value
  • Graph mode for visual representation of measurement data
