RSR Programmable Logic Device Prototyping Board with Xilinx Software


  • Sale
  • Regular price $79.00

Use design software available from the chip manufacturer.* Then down-load your design from the PC with the parallel port cable (included).

* Design software is available at the Xilinx website page

Comes with a user's manual containing a complete description of the board together with lab experiments, power supply and cable.

To download the following manual (Microsoft Word format), RIGHT click on the link. A window will open up next to the link: choose "Save Target As" (Explorer) or "Save Link As" (Netscape) to save the file.

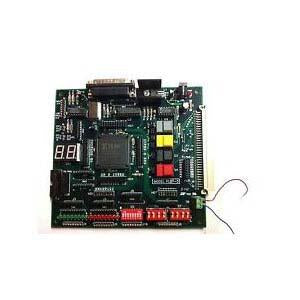

PLDT-3 - has the on-board I/O capability you need:

  • DIP Switches
  • De-bounced Momentary Switches
  • LEDs
  • 7-Segment Displays
  • Lots of Connectors for Jumper-Wires and Ribbon Cables
