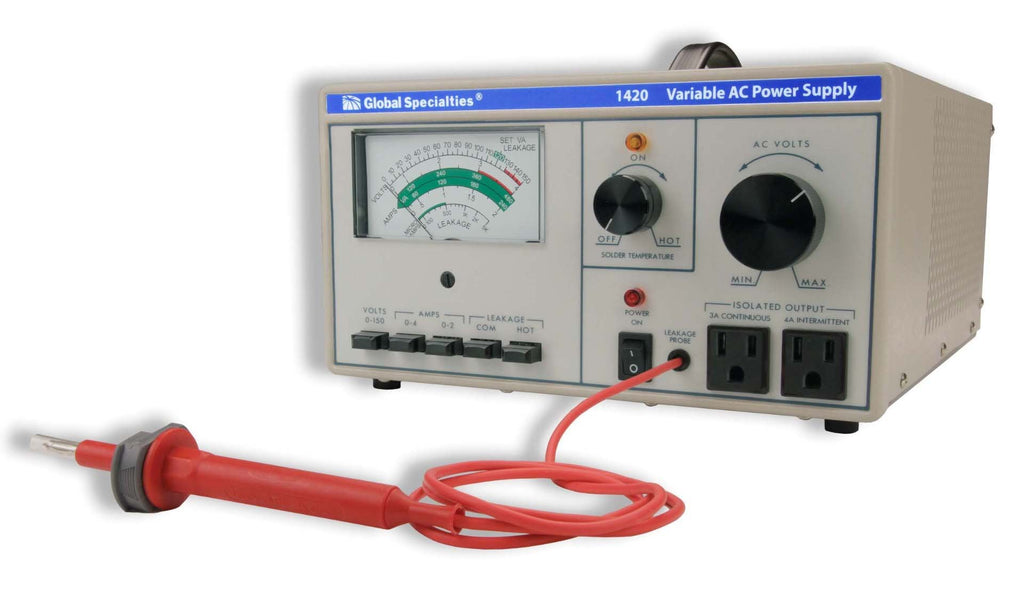

The 1420 variable isolated AC power supply is great for testing AC line voltage variations or any given product requiring AC power.Â
Features:
- Output voltage continuously variable from 0 to 150VAC.
- Heavy duty unit handles virtually all servicing needs. Output current up to 3 amps continuous, 4 amps intermittent.
- Built in multi-function meter. 0-150V. Two current ranges of 0-2A and 0-4A for improved resolution. Current scales also calibrated in VA at 120V.
- Built-in isolation transformer for safe servicing of “hot chassis†equipment. Two isolated outlets on Model 1420.
- 3-1/4 inch meter. Multi-color scales. Overrange protection.
- OSHA, UL, and CSA power line leakage test capability; fast and safe measurement.
- 0-5mA (0-5000µA) leakage scale is expanded in most commonly used 100-500µA portion, compressed to 5 mA full scale. Overload protected.
- Isolated output protected by easily reset circuit breaker.
- Built-in solid state soldering iron temperature control.
- 3 A continuous, 4 A intermittent output
- Built-in soldering iron temperature control
- Expanded leakage scale
- Circuit breaker overload protection
- Displays V, A, VA, leakage
