Elenco

Deluxe Digital / Analog Trainer

SKU: 01XK700

  • Sale
  • Regular price $210.00

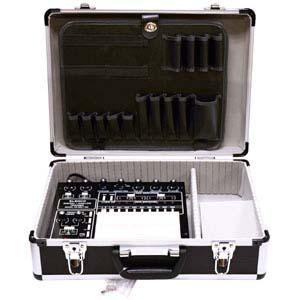

Elenco's advanced designed Digital/Analog Trainer is specially designed for school projects. It is built on a single PC board for maximum reliability. It includes 5 built-in power supplies, a function generator with continuously variable sine, triangular and square waveforms. All power supplies are regulated and protected against shorts. The trainer is mounted in a professional technician tool case made of reinforced metal with heavy-duty handles and locks. The removable, dual-sided tool pallet has many pockets and elastic retainers to hold a broad line of tools and devices. A special ramp in the case will hold the meter of your choice(not included).

Features:
  • Fully assembled and tested

    Tools and Meter not included. Order XK700T for tools.


SPECIFICATIONS:

Power Supplies:

  • Variable Power Supply
    • 0V to 20VDC @ 0.5A
    • (0V to 15VDC @ 1A)
    • 0V to 20VDC @ 0.5A
    • (0V to15VDC @ 1A)
    • +12VDC @ 1A
    • -12VDC @ 1A
    • +5VDC @ 1A
    • +30VAC center-tapped to 15VAC @ 1A



Potentiometers:

  • 2 undedicated potentiometers 1k Ohm & 100k Ohm



Bredboards:

  • 2 bredboards, each containing 830 tie points (total 1,660).


Analog Section:

  • Function Generator - Sine, Triangular, Square Wave.
  • Frequency adjustable in five ranges from 1 to 100kHz.
  • Fine frequency adjust.
  • Amplitude adjust.
  • DC offset



Digital Section:

  • Eight data switches.
  • Two no bounce logic switches.
  • Eight LED readouts, buffered.
  • Clock amplitude 5Vpp square wave.
  • Fast Track Construction:
  • Most of the components are on one PC board, eliminating allwires between the PC board, pots, regulators and switches.Makes assembly easier and faster, eliminates errors.
