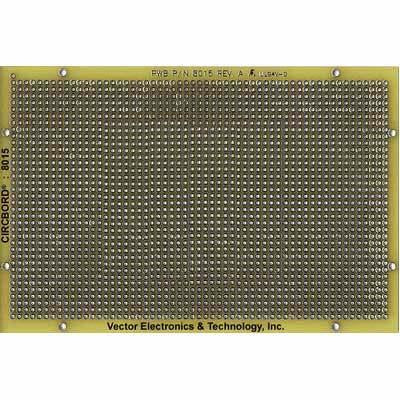

Vector Vectorbord Model 8015- 4.0 x 6.0 Inches- 2 sided pattern

SKU: 0302V8015

  • Sale
  • Regular price $16.55


  • Isolated round pads around each hole (8015-1)
  • Plated-thru holes
  • 0.080" diameter, isolated solder pad around each hole, both sides
  • Unrestricted component placement, extended area for high density applications
  • Circuit Pattern: Pad-Per-Hole
  • Contacts: N/A
  • Width/Thick: 4.00" / .062"
  • Height: 6.00"
  • 16-Pin DIP Capacity: 72
  • Material: FR4

FOR USE WITH:

  • Wire Wrap Terminals: T44, T46, T49, T68
  • Solder Terminals: T42-1, K24C
  • Wire-Wrap Socket Pins: R32
  • Hole Diameter: .042"
