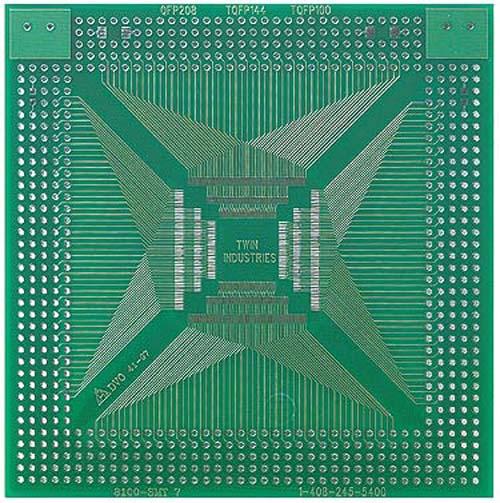

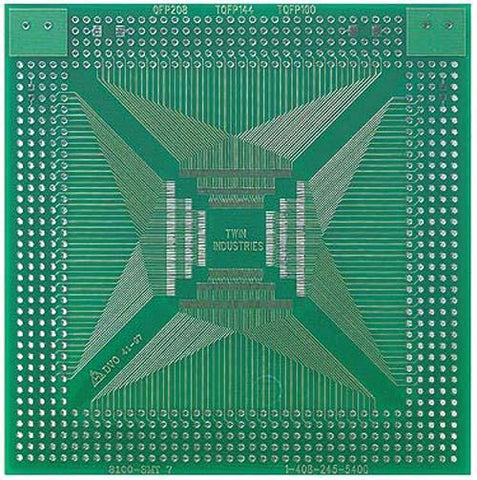

USEful for R and D and evaluation of surface mount products. Components are soldered to pads on the boards. Traces extending from the pads go to prototyping holes on .1" spacing grid. Individual leads may be checked and additional components added.
