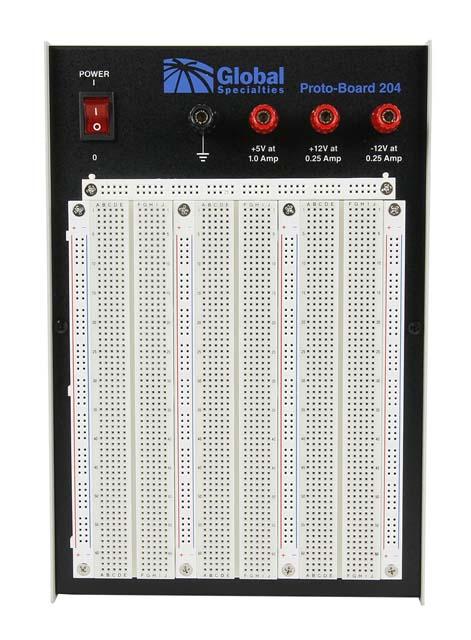

Global Specialties Powered Breadboard Model PB204

Global Specialties

Global Specialties Powered Breadboard Model PB204

SKU: 03PB204

  • Sale
  • $283.00
  • +5VDC (PB-203A, PB-204)
    • Voltage:5.0+/-25VDC
    • Current: 1.0 Amp max, current limited
    • Ripple: 10mV p-p at max current
  • +12 VDC: (PB-204 Only)
    • Voltage: Fixed
    • Current: 250 mA max, current limited
    • Ripple: 20 mV p-p at max current
  • + 15 VDC (PB-203 only)
    • Voltage: Adjustable internally +5.5-18 VDC
    • Current: 0.5 Amp max @ +25 VDC, current limited
    • Ripple: 10mV p-p at max current
  • -15 VDC (PB-203 only)
    • Voltage: Adjusted internally -5.5-18 VDC
    • Current:250 Amp max @ -15 VDC, current limited
    • Ripple: 10mV p-p at max current
  • -12 VDC: (PB-204 only)
    • Voltage: Fixed
    • Current: 250 mA max, current limited
    • Ripple: 20 mV p-p at max current
  • Power: 120 VAC, 60Hz or 220 VAC, 50Hz
  • Dimensions: 9.8"L x 6.6"W x •3.3"H (248x168x83mm)
  • 5.5 lbs.(2.5kg)
