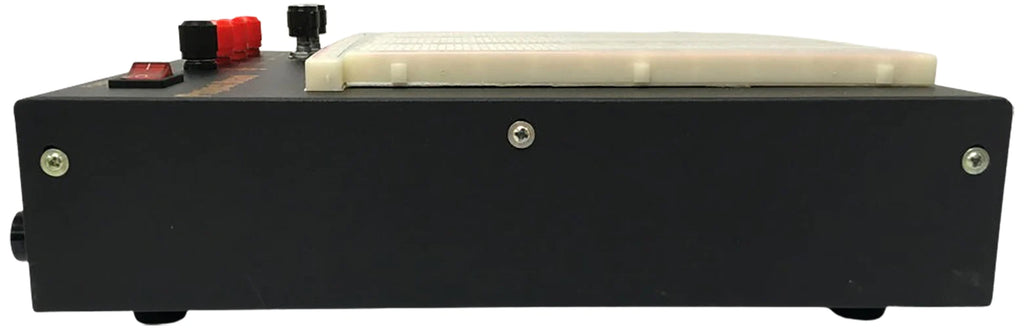

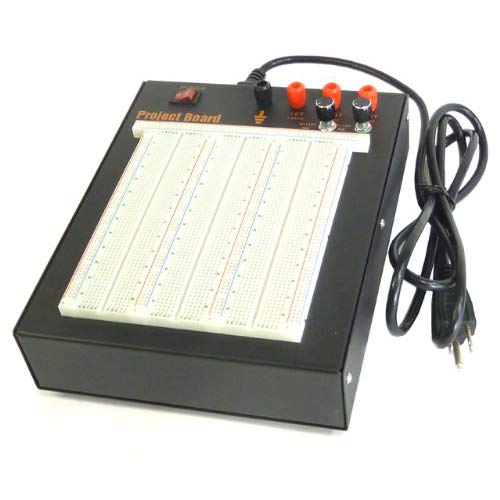

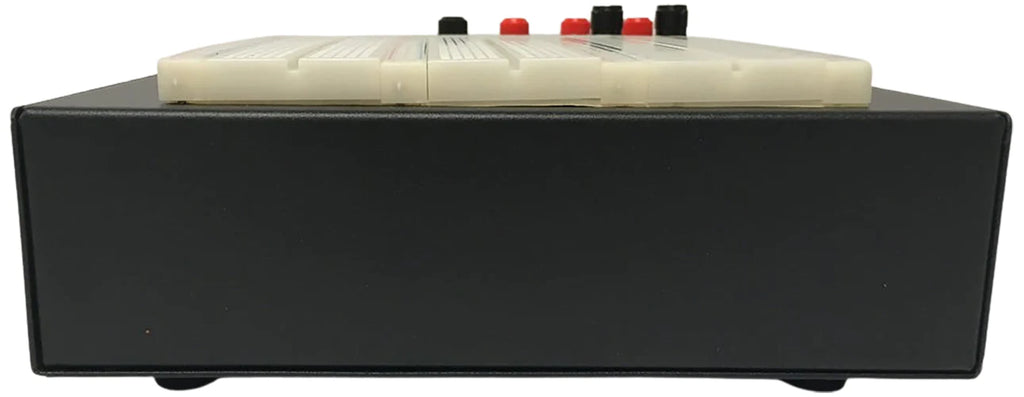

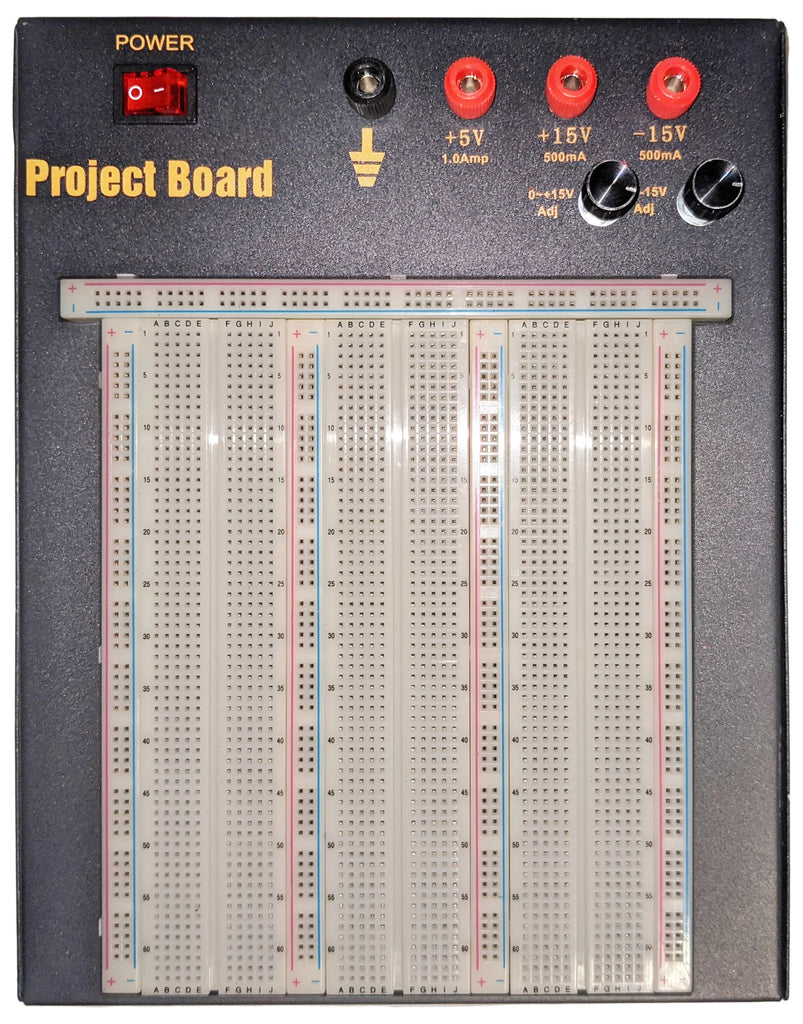

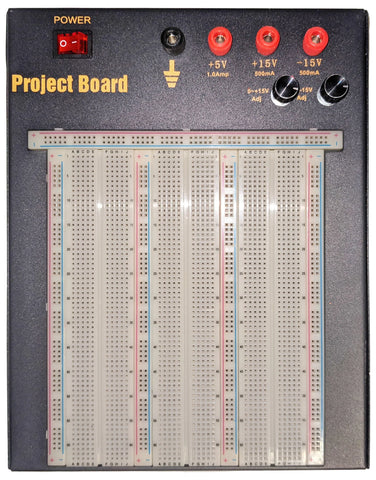

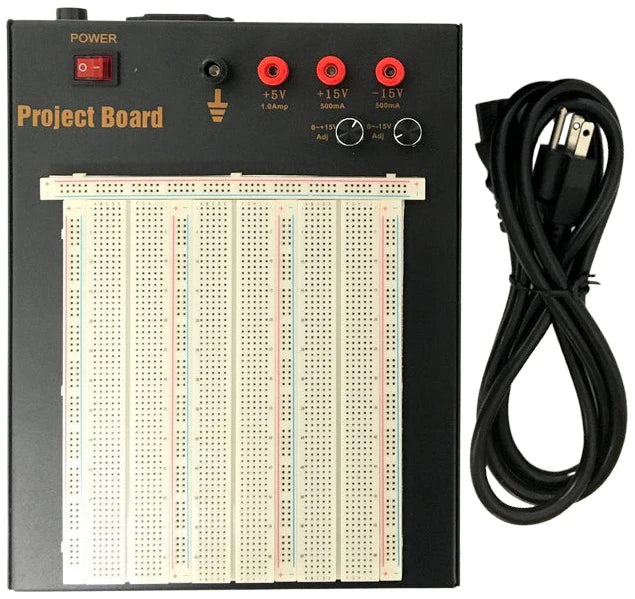

Provides user with efficient way to breadboard electronic circuits. Includes three regulated power supplies along with easy-to-use breadboards.
- Illuminated power switch
- Sturdy metal case
- Solderless breadboard
- 5 distribution and 3 terminal strips (2390 tie points)
- DC Power Supplies: +5@1A; variable 0 to ±15V@500mA

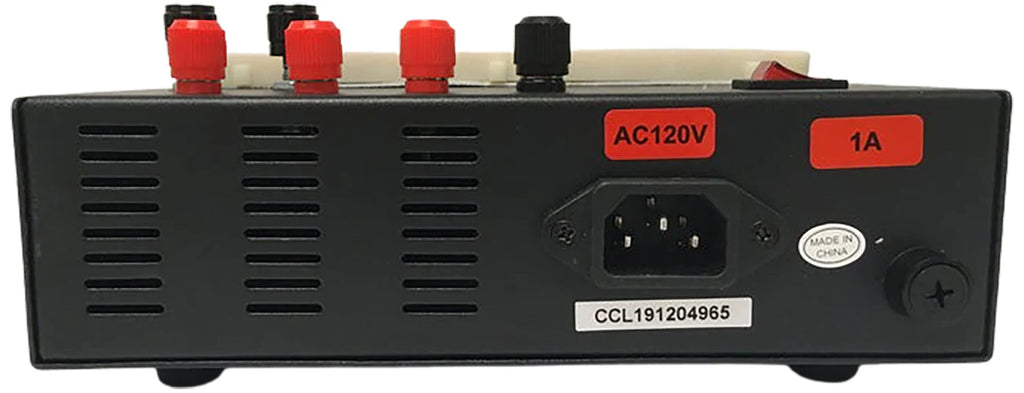

- Input Power: 120VAC @ 60Hz
- One +5V DC @ 1A
- One 0 to +15V (500mA) variable supply
- One 0 to ±15V (500mA) variable supply
- Size: 10.5" x 8" x 3.5"
- Weight: 6.5 lbs.
