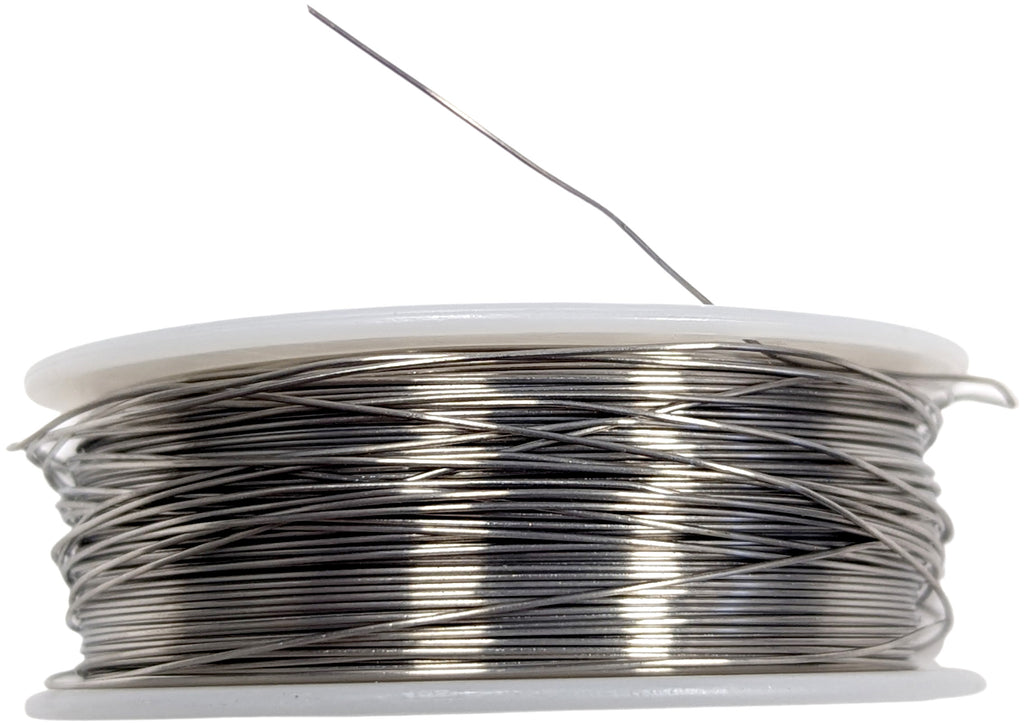

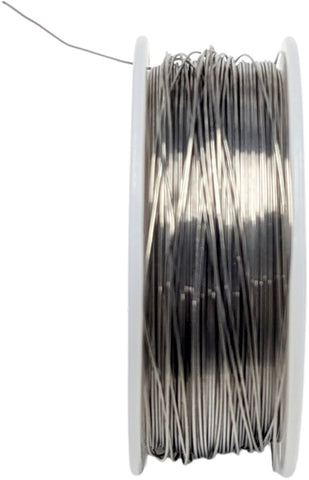

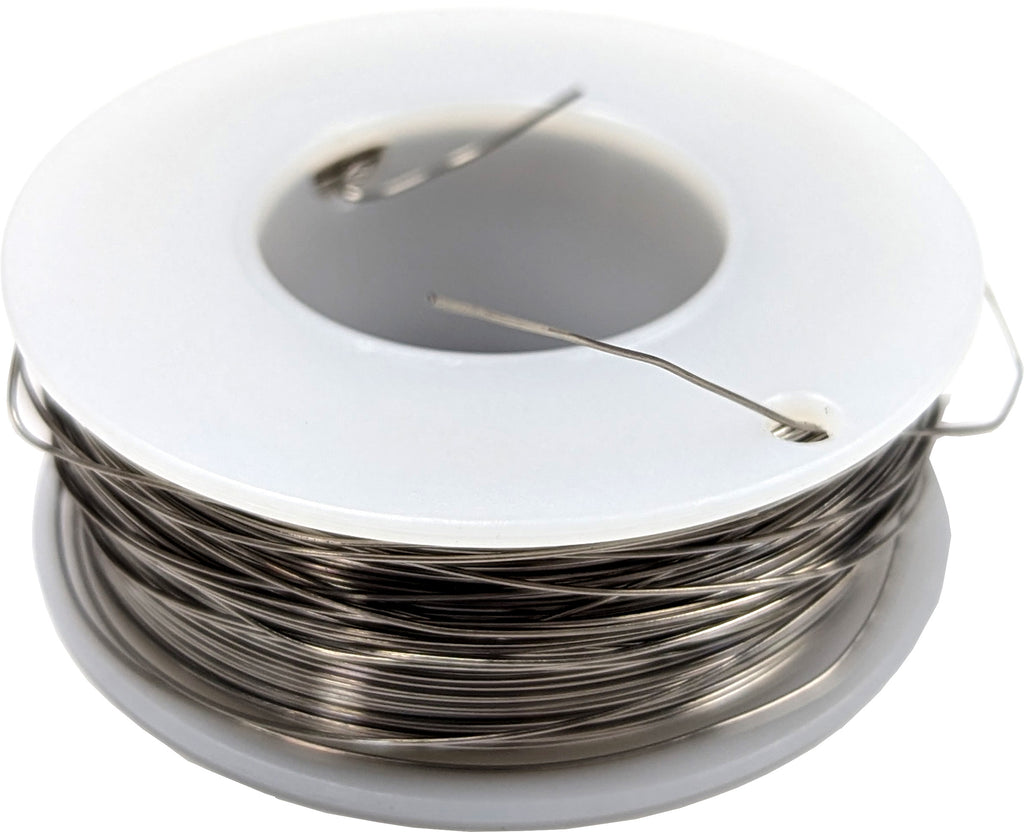

Nichrome Resistance Wire, 1/4 Lb Spool, 24 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267

Specifications:

• Solid soft drawn and annealed, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
• Nichrome 60 (Chromel C)
• 24 AWG Wire
• 1/4 Lb Spool
• Diameter: .0201 (inches)/.511 (mm)
• Nominal impedance: 1.671 Ohms/Feet
• Max. Operating Temperature: 1148°C (2100°F)
• Melting Point: 1350°C (2462°F)
• Tensile Strength: 100-120 KSI

• Yield: 45-55 KSI
• Elongation: 20%
• Element resistance at 68F (Ohms)
• Density .298 lbs/cubic in.

Applications:

• Suitable for electric heating elements or applications that need corrosion resistance
