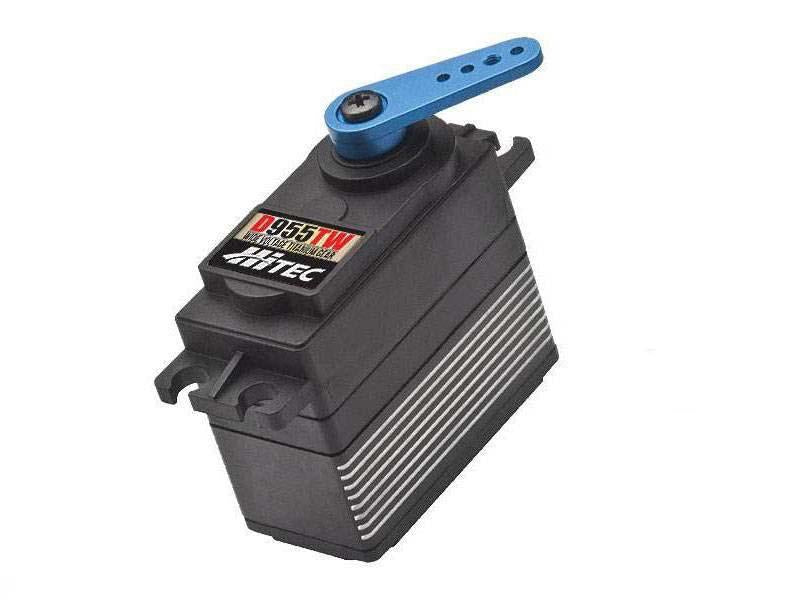

D955TW 32-Bit, High Torque, Titanium Gear Servo

SKU: 29SV15

  • Sale
  • Regular price $129.00


The power of Hitec D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. These technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. The reliably-strong titanium-geared D955TW replaces the well-known HS-7955TH.



Features:

  • Programmable PWM Digital Amplifier
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 8.4 Volts DC
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • Dust Resistant and Splash Proof Case
Programmable Functions:
    • End Point Adjustment
    • Direction
    • Fail Safe
    • Dead Band
    • Speed (Slower)
    • Soft Start Rate
    • Overload Protection
    • Data Save / Load
    • Program Reset



    Performance Specifications
    Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
    Speed (Second @ 60°) 0.19 ~ 0.12
    Maximum Torque Range oz. / in. 251 ~ 404
    Maximum Torque Range kg. / cm. 18.0 ~ 29.0
    Current Draw at Idle 30 mA
    No Load Operating Current Draw 500 mA
    Stall Current Draw 5,200 mA
    Dead Band Width 1µs
    Physical Specifications
    Dimensions (Inches) 1.57 x 0.78 x 1.46
    Dimensions (Metric) 40.0 x 20.0 x 37.0
    Weight (Ounces) 2.33
    Weight (Gram) 66.0
    Circuit Type 32bit Programable Digital
    Motor Type Coreless Metal Brush
    Gear Material MK 1st Gear & 3 Titanium Gears
    Bearing Type Dual Ball Bearing
    Output Shaft (type / mm) H25T
    Case Material Plastic / Aluminum
    Dust / Water Resistance Splash Proof
    Connector Gauge (AWG) / Strand Count 20 / 80
    Radio Control Applications
    Parkflyer N / A
    Sport Plane 30 - 40%
    Sailplane 2 meters and up
    3D Performance 30 - 40%
    Scale 30 - 40%
    Electric Helicopter N / A
    Gas Helicopter N / A
    On Road 1/8th
    Monster Truck 1/8th
    Buggies 1/8th
    Truggies 1/8th
    Short Course / Truck 1/8th
    Crawlers 1/8th
    Sail Boat = >1M & Scale
    Power Boat N/A
