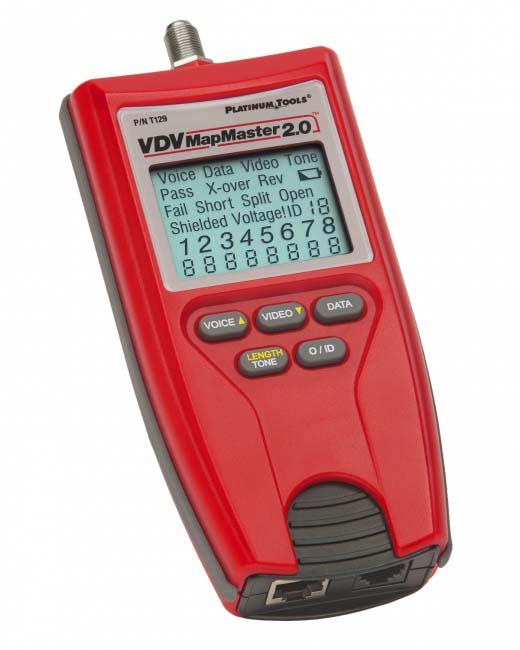

Platinum tools VDV MapMaster 2.0

SKU: 34TK129

  • Sale
  • Regular price $118.25

The T129 combines continuity testing, mapping, tone generator and length measurement functions into a single unit. Capable of identifying andmapping 19 locations at one time. Whether your jobs are commercial or residential, the versatility & added features of the VDV MapMaster 2.0makes it an installer's best friend!

Contents include:

  • MapMasterâ„¢ 2.0 Tester
  • RJ45 #1 ID/Map Master Remote
  • Coax F #1 Remote
  • RJ45 to Alligator Cable
  • F (F-to-F) Adapter
  • 9V Battery
  • Instruction Sheet


  • Measures the entire length of a cable and/or individual wire pairs and lengths to Opens.
  • Tests Voice (6 wire), Data (8 wire) and Video (coax)
  • Easy to read, extra large 7-segment LCD screen with large icons
  • Tests and indicates pins with shorts, opens, reversals, miswires and split pairs
  • Tone with four selectable cadences on single specific wires, pairs or all wires simultaneously
  • Map 19 unique locations with optional ID Remotes
  • RJ11/RJ12 & RJ45 (Voice & Data) Master Remote stored in bottom of case
  • Low power consumption for long battery life
  • Auto power-off mode save lengthen battery life
  • For measuring lengths to shorts purchase a TDR tester such as the Cable Prowler.
