Features:
Oscilloscope:
- Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with BNC Adapter
- User-configurable input filters and lock-in amplifier
- FFT, Spectrogram, Eye Diagram, XY Plot views, and more
Arbitrary Waveform Generator:
- Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter
- Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more
Logic Analyzer and Pattern Generator:

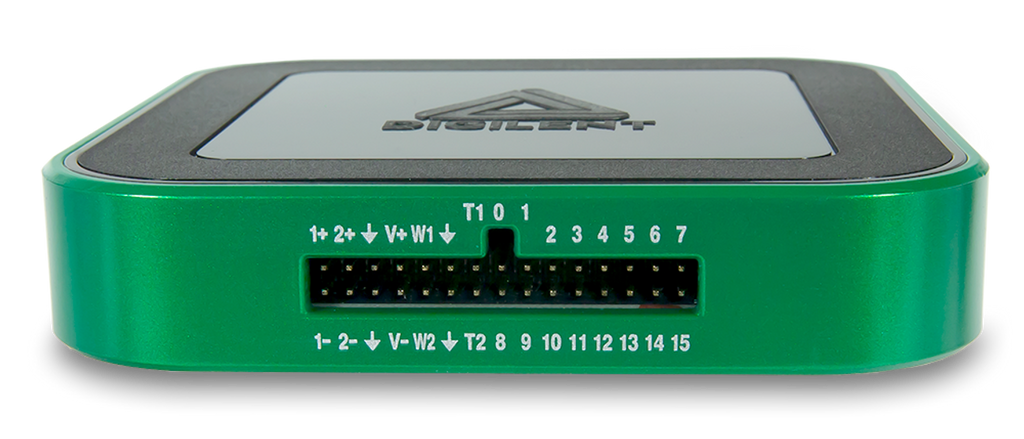

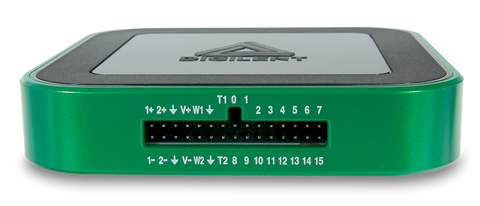

- 16 digital I/O channels at up to 125 MS/s per channel
- Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs
- SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more
Programmable Power Supplies:
- 0.5 V to 5 V and -0.5 V to -5 V variable power supplies
- Up to 800 mA per channel when used with an auxiliary power source
Additional Features:
- Additional software instruments including:
- Spectrum Analyzer, Network Analyzer, and Impedance Analyzer
- Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs
- Data logging, Voltmeter, in-app scripting
- SDK for hardware control in C, C++, Python, and other languages
- Support for LabVIEW and MATLAB
- And much more

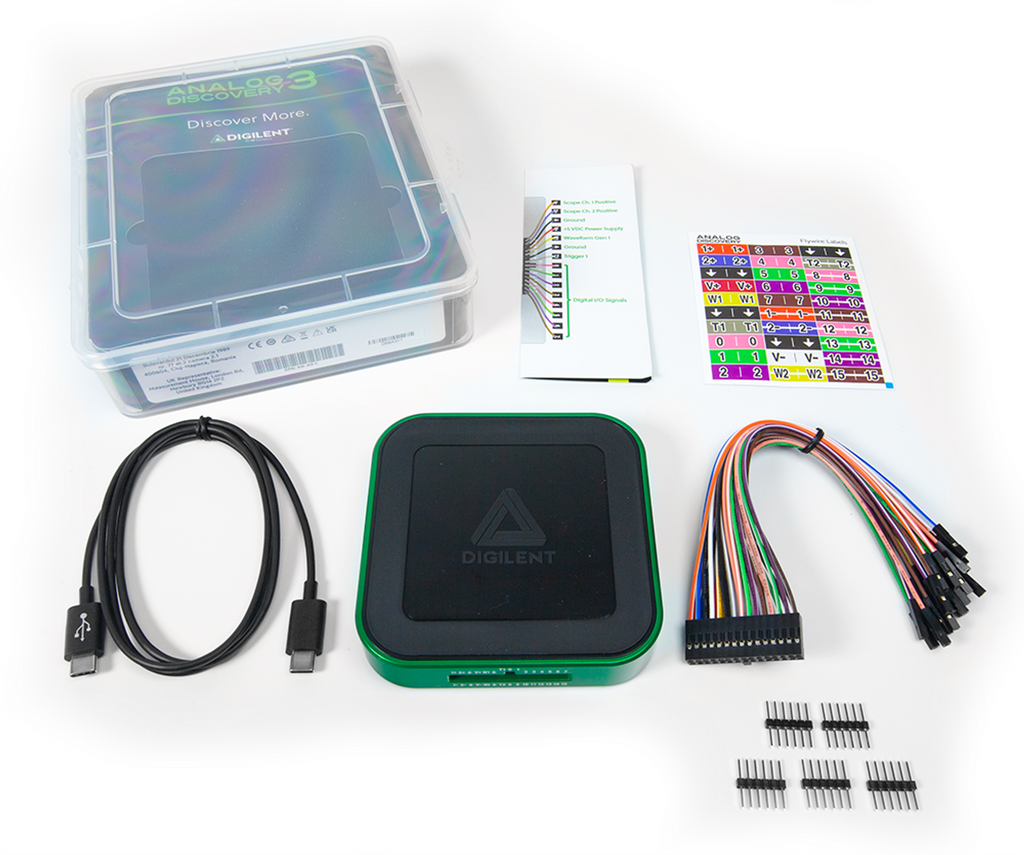

What's Included:

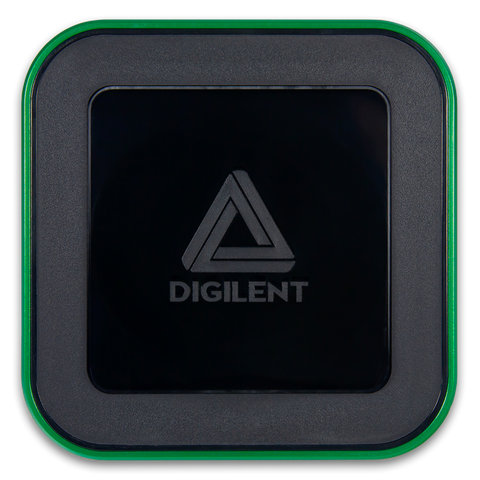

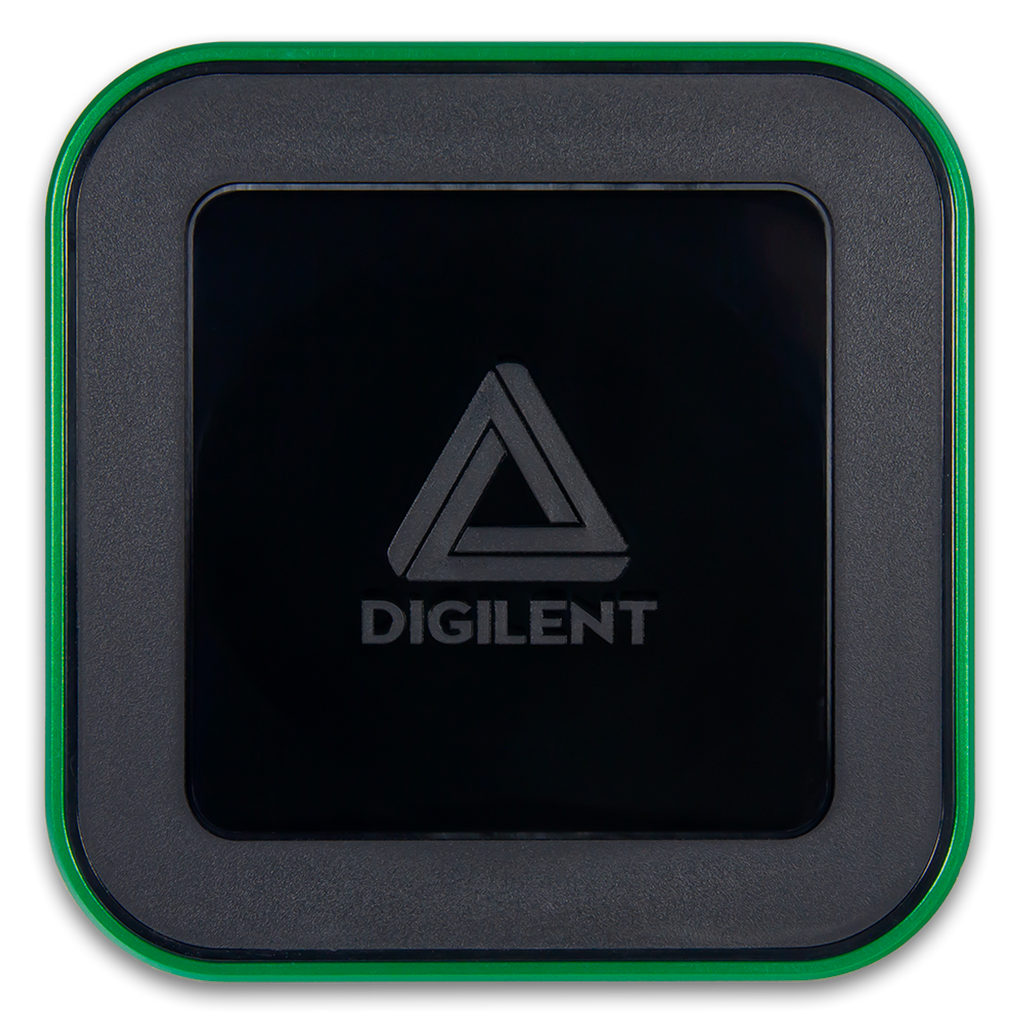

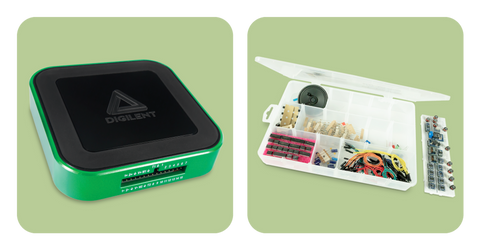

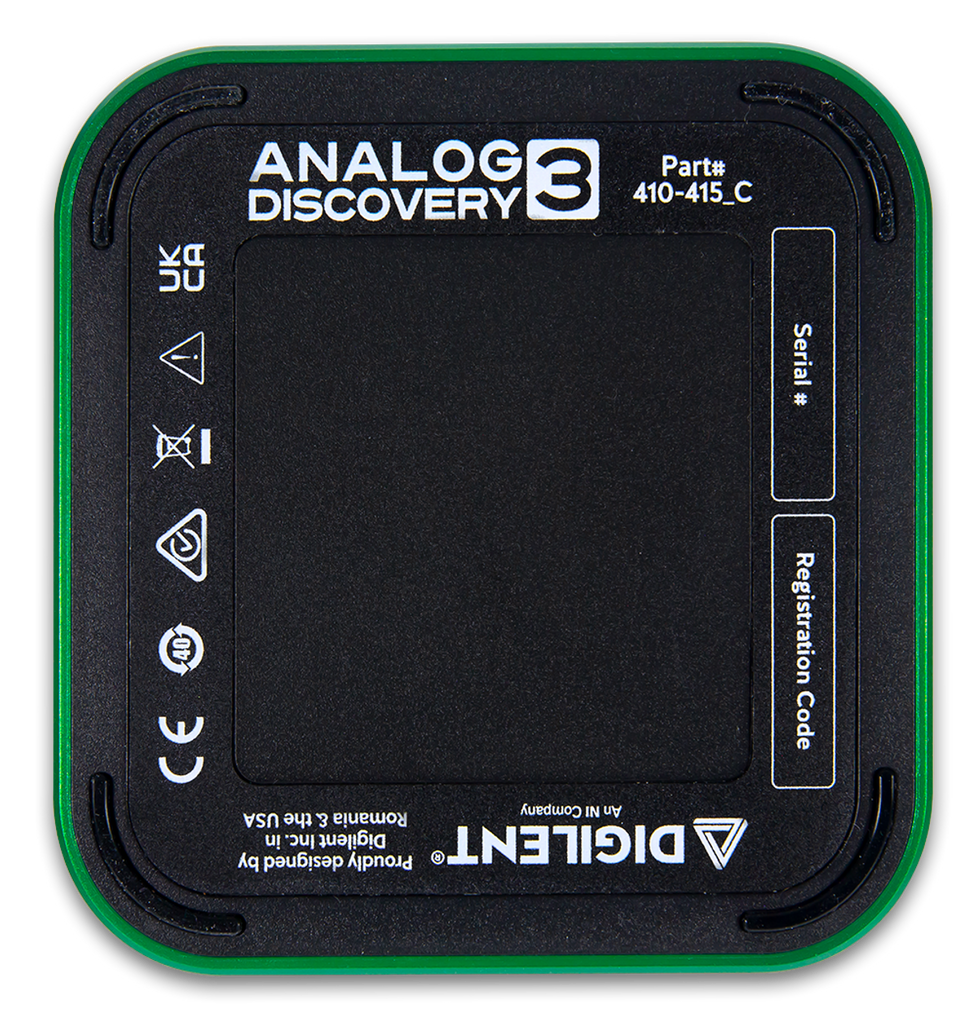

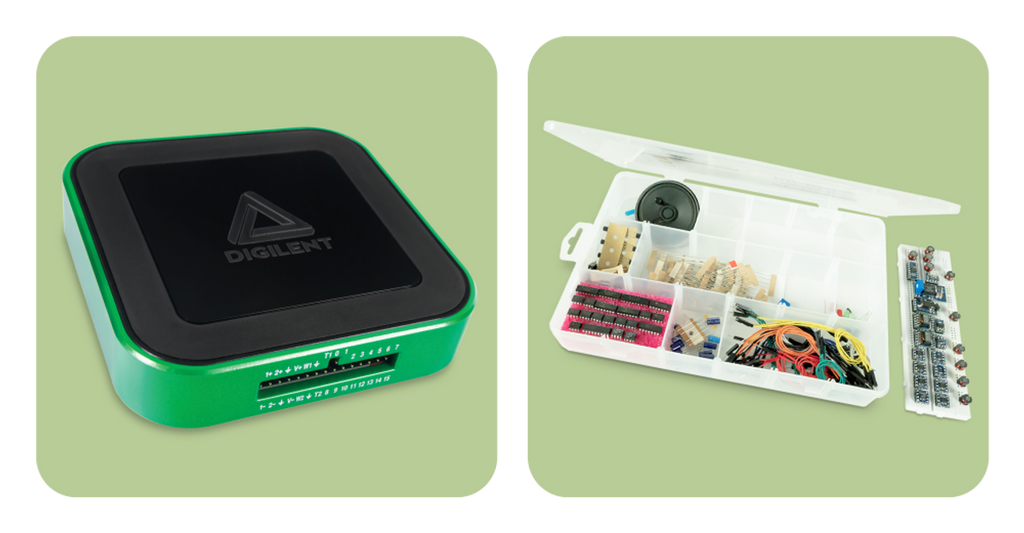

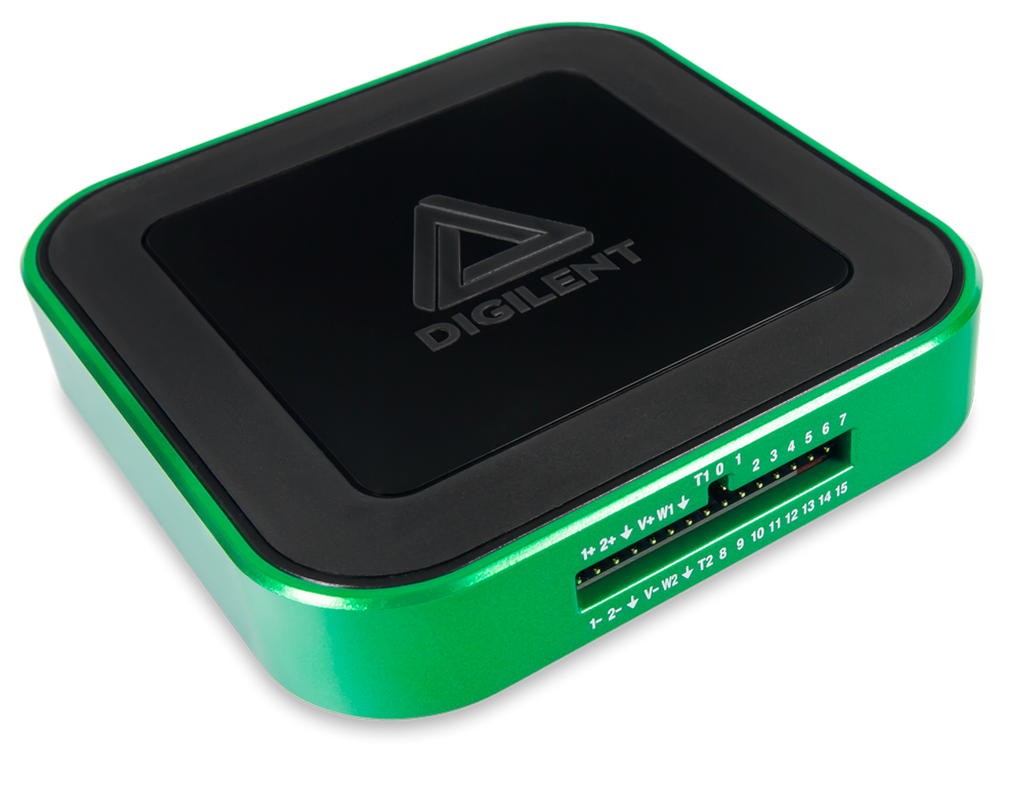

- Analog Discovery 3 and the following:
- One plastic project box

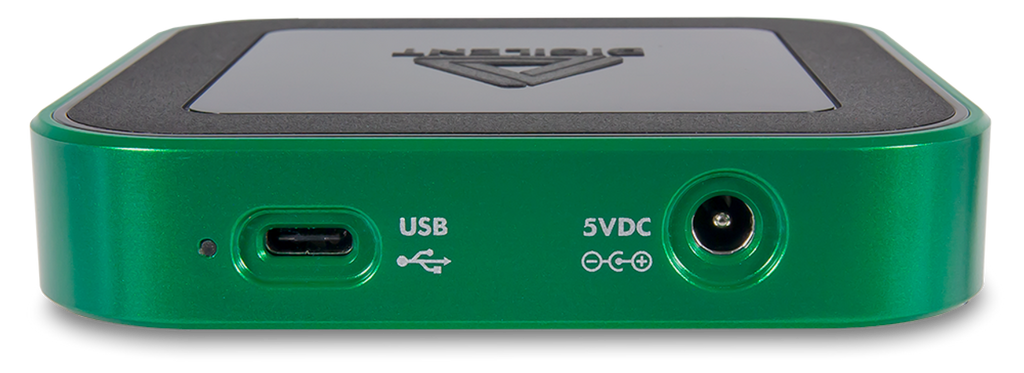

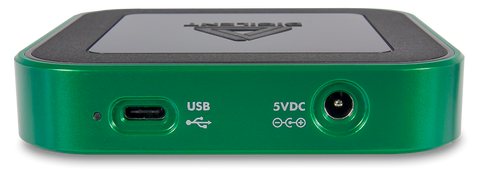

- One USB-C® to USB-C programming cable
- One 2x15 flywire signal cable assembly
- 5-pack of 6-pin male headers
- 30-pin flywire labels
- 1 Year subscription to Multisim Live and 30-day Trial of EveryMeasure with 5GB and 5 Users
- (requires Analog Discovery 3 registration)

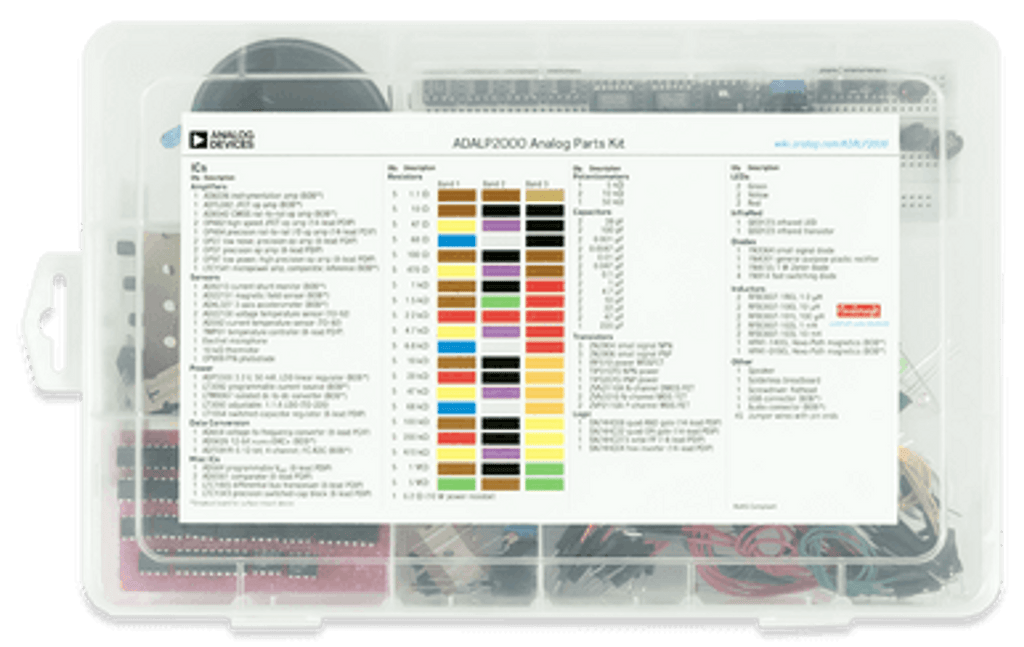

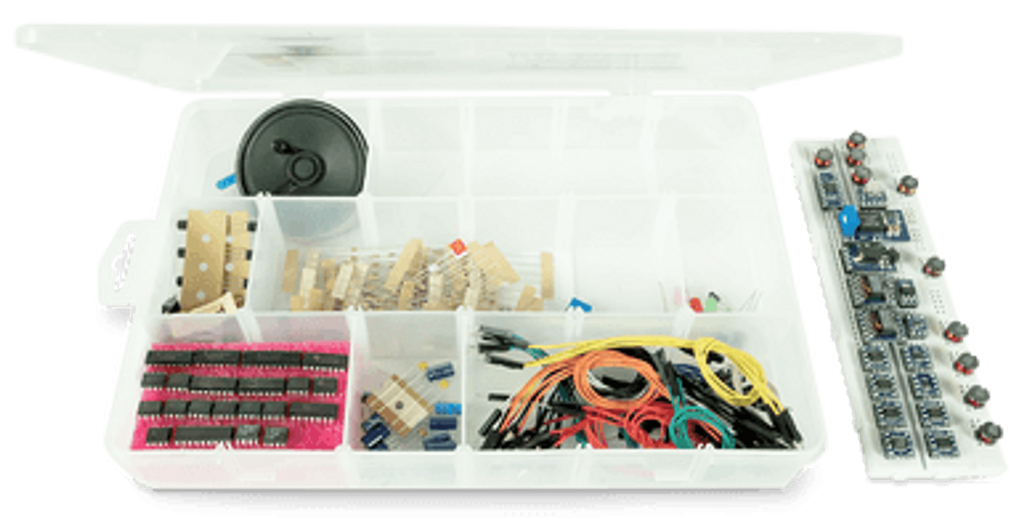

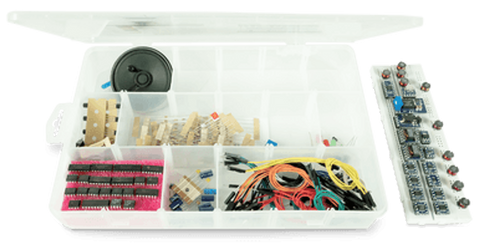

- Analog Parts Kit:
