Parallax WS2812B RGB LED Module

SKU: 32PX28085

  • Sale
  • Regular price $3.20

The WS2812B RGB LED Module is a small module with BIG color. The module has a special LED on board that contains three separate LEDs – red, green, and blue – as well as a smart control IC that can individually drive each LED. Each color has 256 intensity levels which allows the module to produce 24-bit color, or more than 16 million colors. Each module is instructed by using a special serial protocol. This protocol allows many modules to be daisy-chained together so that one microcontroller can control the whole lot – with a single data signal. Any number of these modules can be chained together by connecting one module’s data-out (DO) pin to another’s data-in (DI) pin.

Caution – these LEDs are extremely bright! You might want to avoid looking directly at them up close when lit.

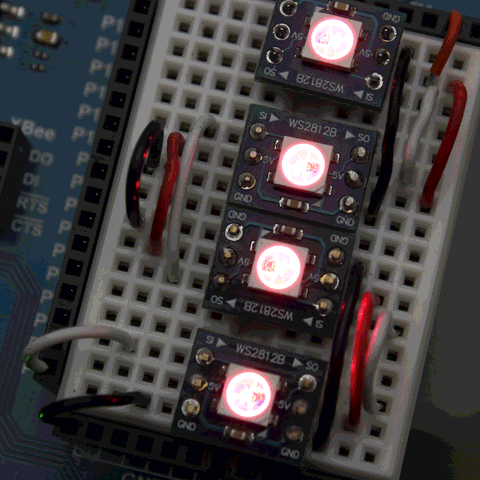

  • String many together to make an array of individually addressable lights
  • With 24-bit color, each module can display more than 16 million unique colors of the rainbow
  • The module’s small size is breadboard-friendly with 0.1” header spacing
  • Control all LEDs in a chain with a single I/O pin
Application Ideas:
  • Holiday decorations
  • Multi-color status LED for your project
  • Color-changing robotic eyes

Note: The WS2812B is designed for operation with high-speed 5-volt devices. It requires a 3.5 to 5.3 volt power supply, and data signals that reach at least 70% of the power supply voltage, so a 3.6-volt or higher signal is required when powered from a 5-volt supply. To use a 3.3-volt signal, including those generated by the Propeller microcontroller, we recommend powering the WS2812B module from a 3.5- to 4.75-volt power supply. To meet the signal timing, we recommend a microcontroller running at 15 MIPS or faster. The BASIC Stamp series is not capable of generating WS2812B compatible signals.

  • Voltage requirements: 5 V
  • Current requirements: Up to 50 mA
  • Communication: Custom asynchronous serial
  • Dimensions: 0.5 in x 0.4 in (1.27 cm x 1.02 cm)
  • Operating temperature range: -13 to +172 °F (-25 to +80 °C)
Kit Contents:

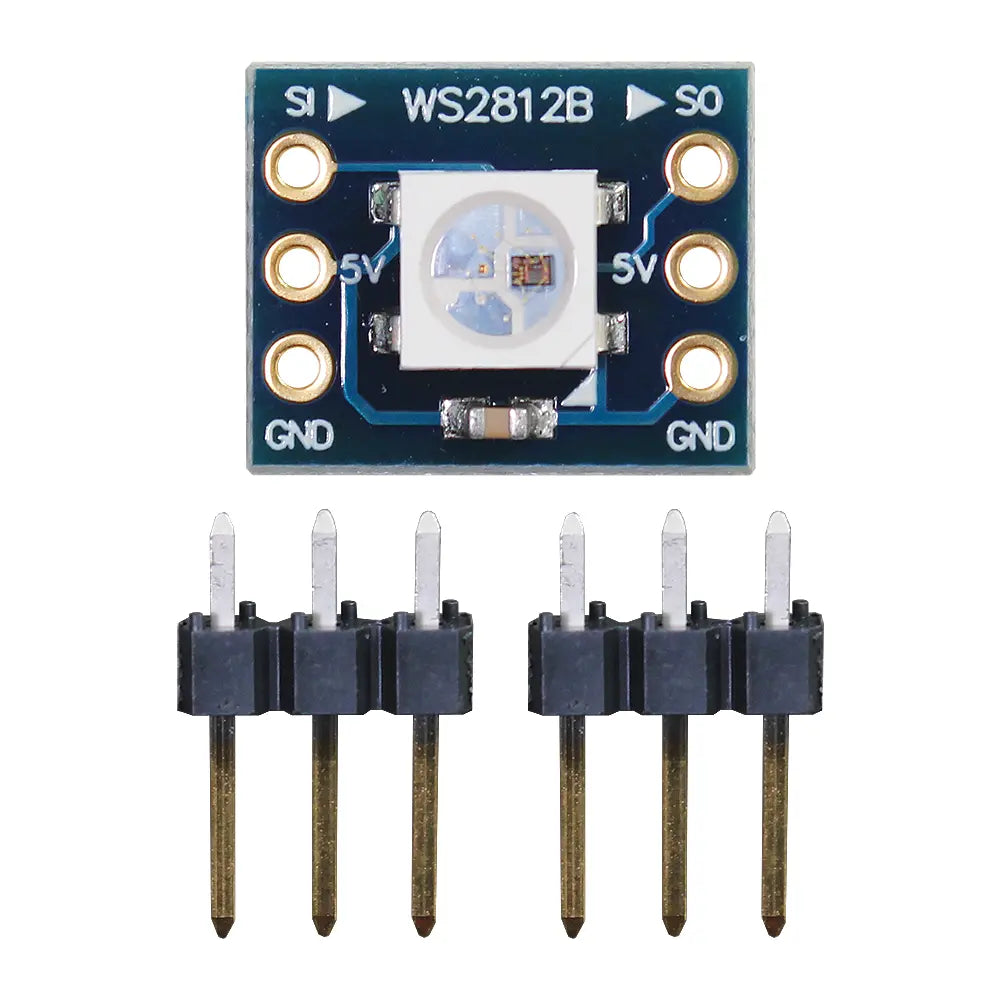

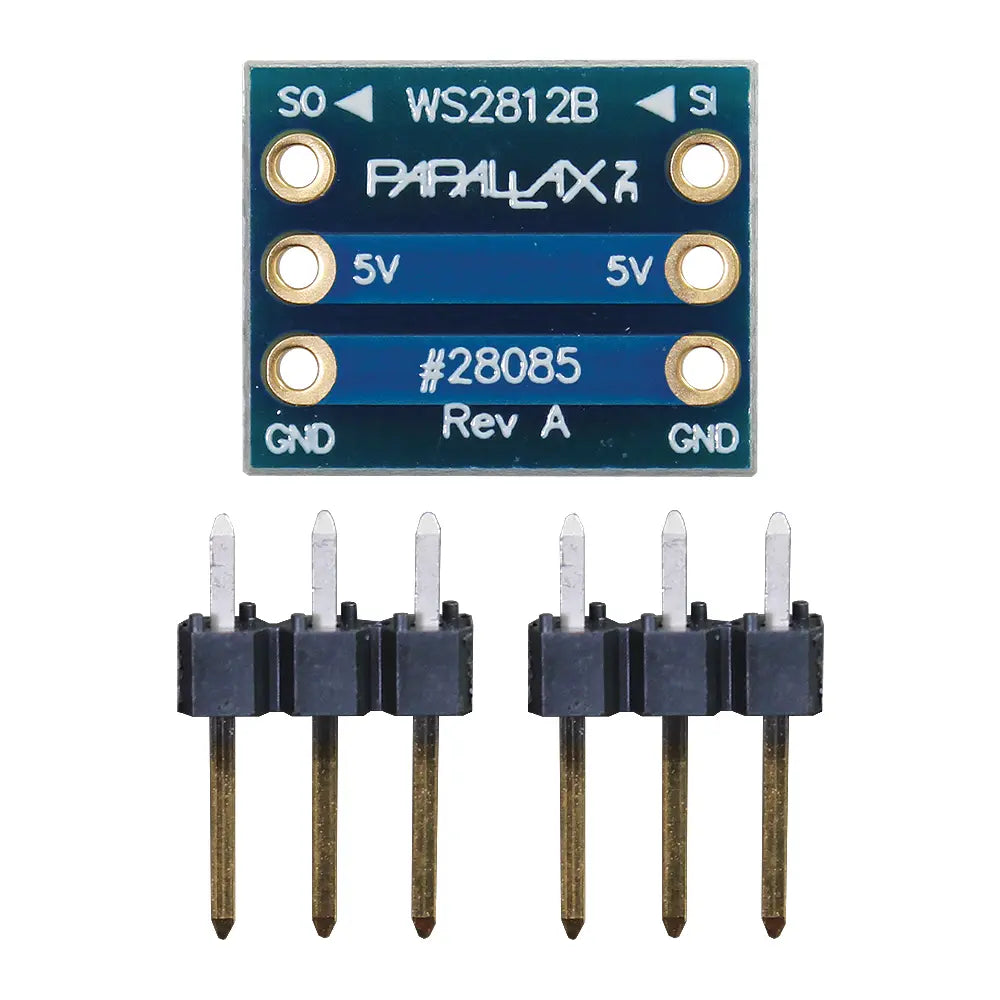

  • (1) WS2812B RGB LED Module
  • (2) 3-pin header
