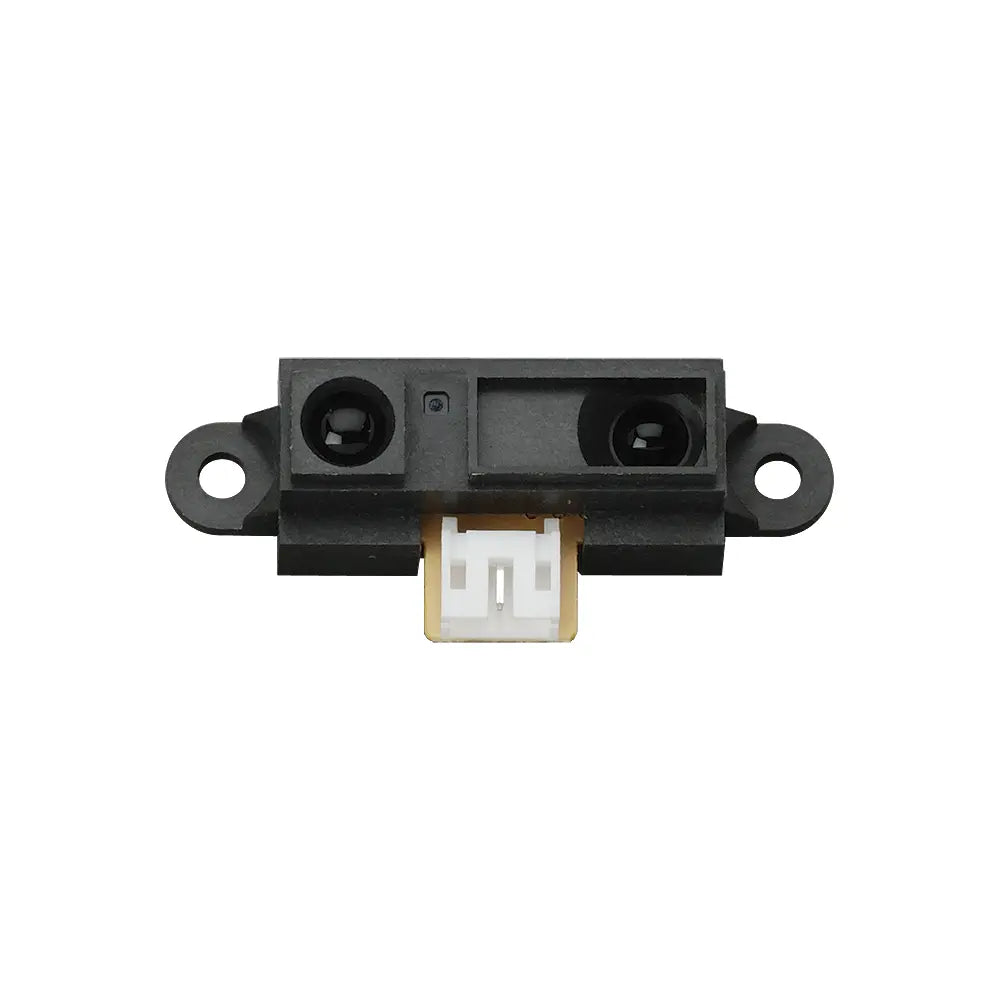

Sharp GP2Y0A21YK0F IR Distance Sensor 10-80 cm

SKU: 32PX28995

  • Sale
  • Regular price $12.49

The Sharp GP2Y0A21YK0F infrared distance measuring sensor uses a beam of infrared light to reflect off an object to measure its distance. Because it uses triangulation of the beam of light to calculate the distance, it is able to provide consistent and reliable readings which are less sensitive to temperature variation or the object’s reflectivity. The sensor outputs an analog voltage corresponding to the distance of the object, and can easily be read using an inexpensive analog to digital converter (ADC) chip.

The Aluminium Stand Kit provides a very convenient method of mounting the sensor, and the Sharp IR Sensor to Servo Cable makes it easy to wire up to a breadboard or microcontroller board.

  • Distance measurement range: 10 to 80 cm (3.9 to 31.5 inches)
  • Analog output voltage corresponds to distance
  • Operates on 5 V supply
  • 3-pin JST connector
  • Two mounting holes spaced 1.46 inches (37 mm) apart
Application Ideas:
  • Distance sensor for autonomous robots
  • Non-contact optical switch
  • Industrial automation and controls
Sharp GP2Y0A21YK0F IR Distance Sensor Details:
  • Power requirements: 5 VDC, 30 mA (typ.)
  • Communication: Analog output voltage (typically 0.4 to 2.3 V range)
  • Overall Dimensions: 1.75 x 0.74 x 0.53 in (4.45 x 1.89 x 1.35 cm)
  • Operating temp range: +14 to +140 °F (-10 to +60 °C)
NOTE: This is NOT the same Sharp IR sensor used in the now-discontinued Boe-Bot Encoder Kit nor ActivitiyBot Encoder Kit.
