Polycase

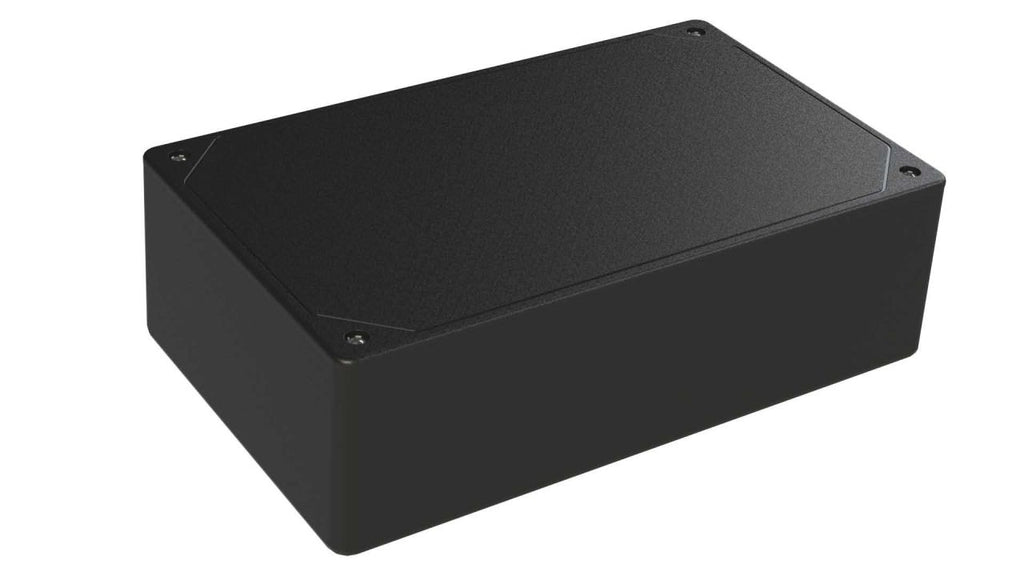

Heavy-Duty Electronics Enclosure, 7.62 x 4.62 x 2.25in. Black ABS Plastic

SKU: 0611DC47P

  • Sale
  • Regular price $14.30

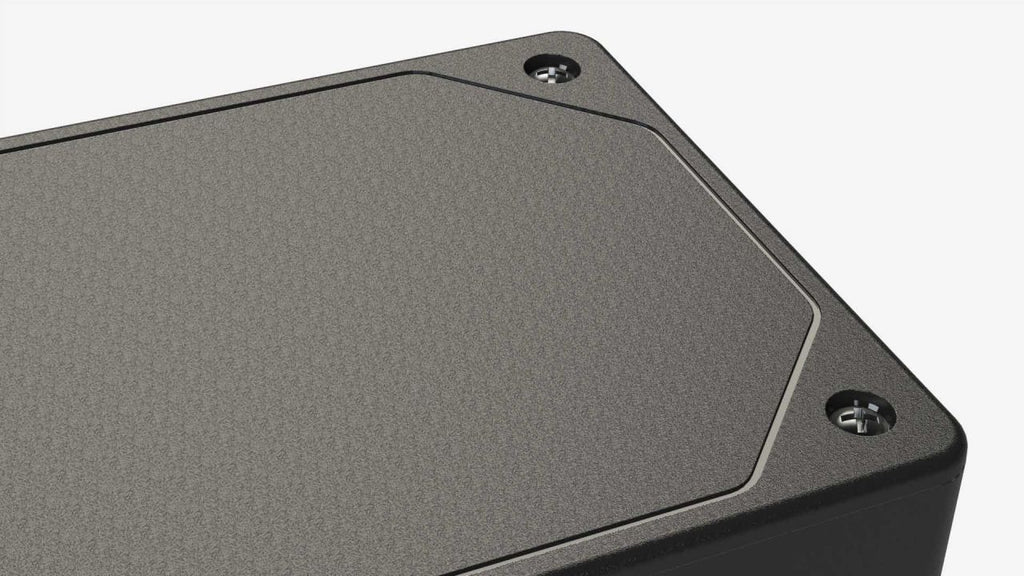

The DC-47P is molded from flame-retardant gray or black ABS plastic and comes standard with four PCB mounting bosses in the base. Attach your PC board directly to the mounting bosses, or opt for the compatible DC-47K aluminum panel (sold separately) for quick installation of components. The cover screws into brass inserts, adding durability for frequent cover-on/cover-off applications, and is offered in either a flush/textured finish for a consistent surface, or recessed/smooth style for graphic overlays or membrane keypads.

Specifications:

  • Material: ABS
  • External Dimensions (in): 7.62 x 4.62 x 2.25 in
  • External Dimensions (mm): 194 x 117 x 57 mm
  • Internal Dimensions (in): 7.38 x 4.38 x 2.16 in
  • Internal Dimensions (mm): 187 x 111 x 55 mm
  • Wall Thickness: 0.14 in
  • Weight: 0.68 lbs
  • Application: Indoor use
  • UV Resistant: No
  • Waterproof: No

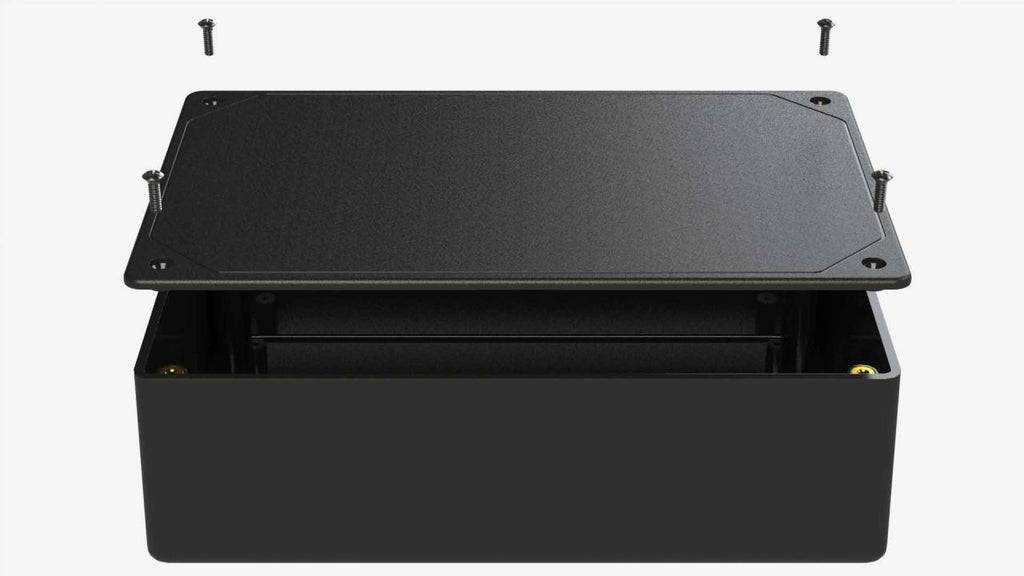

  • Assembly Includes: Base, cover, and 4 screws
