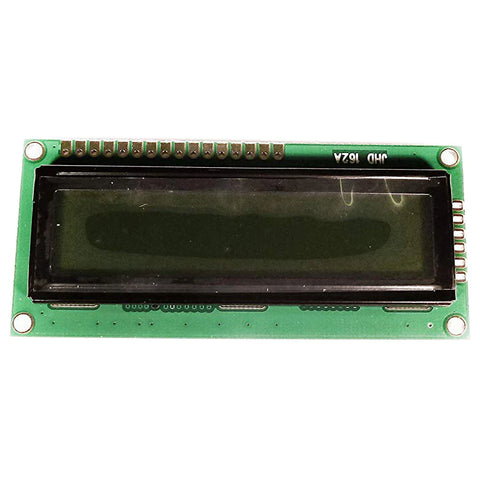

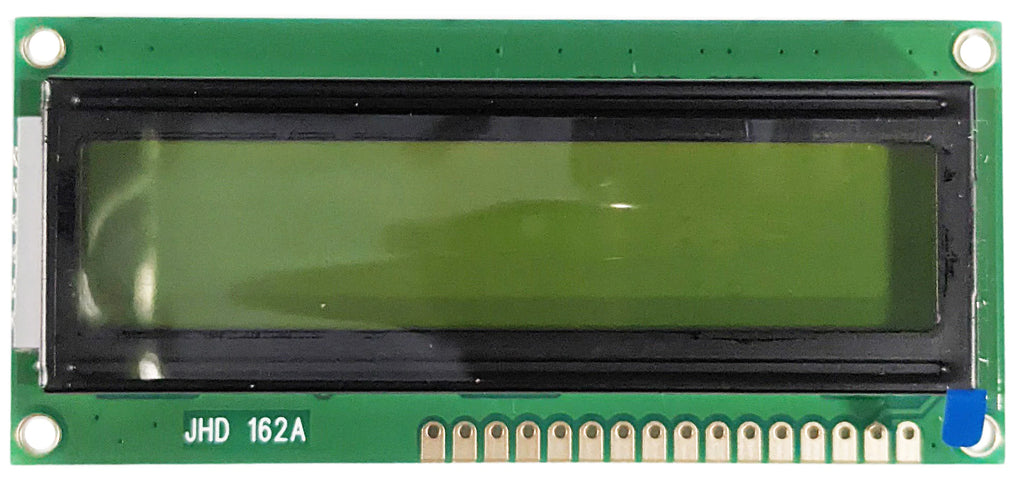

16 x 2 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 80 × 36 × 9.5mm

SKU: 08LCD9

  • Sale
  • $8.95
  • Character dot matrix
  • Reflective; positive; gray
  • Duty cycle 1/16; 5 x 7 dots
  • Includes driver and controller
  • Models* with LED backlight: 08LCD7; 08LCD9; 08LCD12; 08LCD15; 08LCD18 Display Format 16 x 2 Module Size (mm) 80 x 36 x 9.5 Character Size (mm)
  • Display Format: 16 x 2

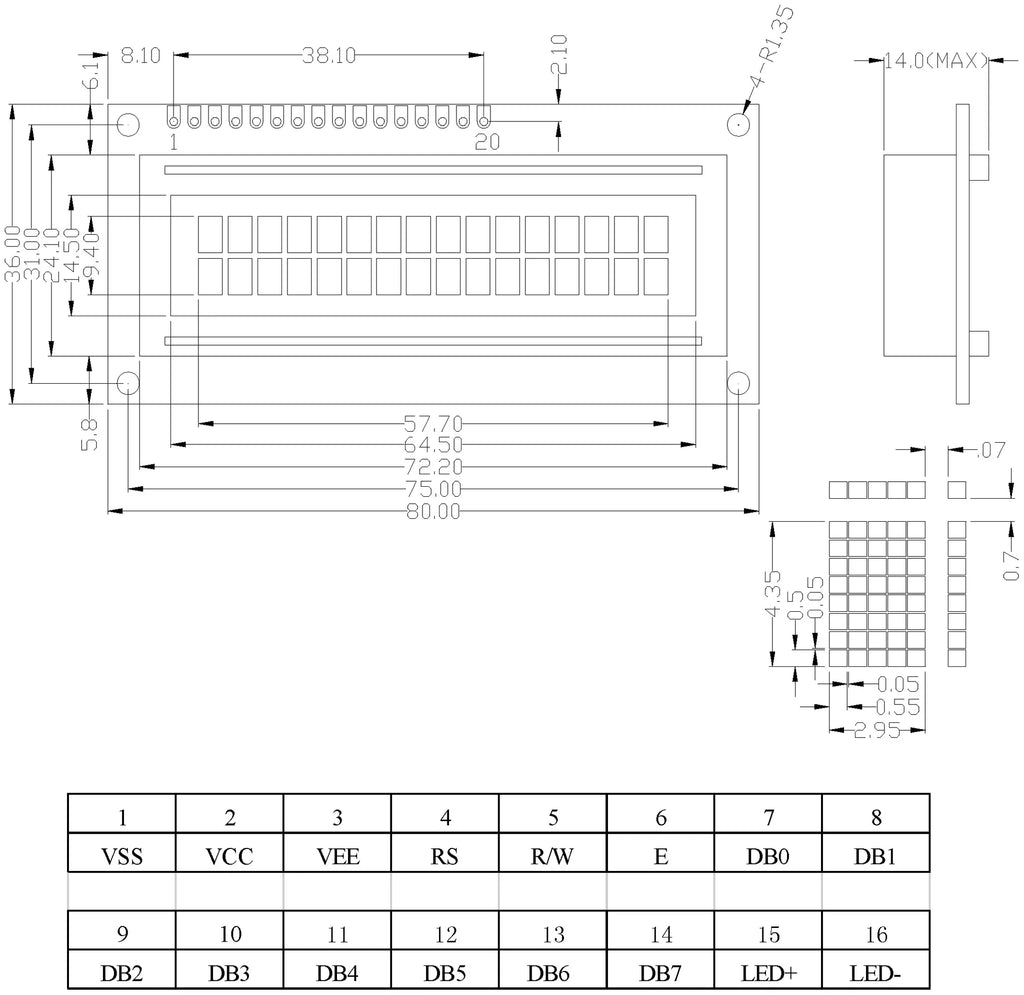

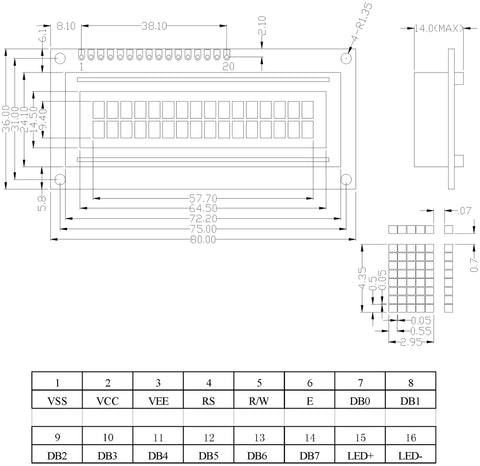

  • Module Size: 80 x 36 x 9.5
  • Character Size: 4.35 x 2.95

Datasheet
