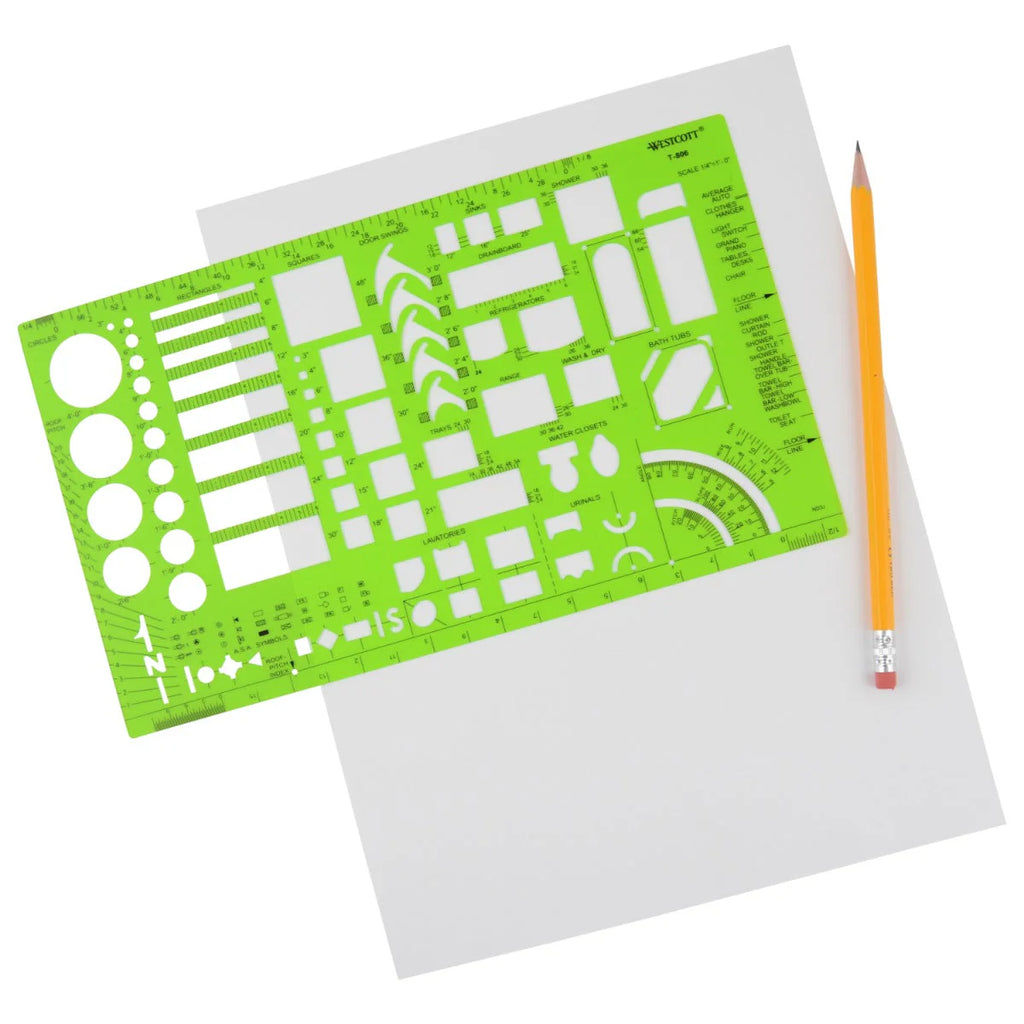

Westcott Technical Architectural Drawing Template (T-806)

SKU: 90TCT806

  • Sale
  • $9.49

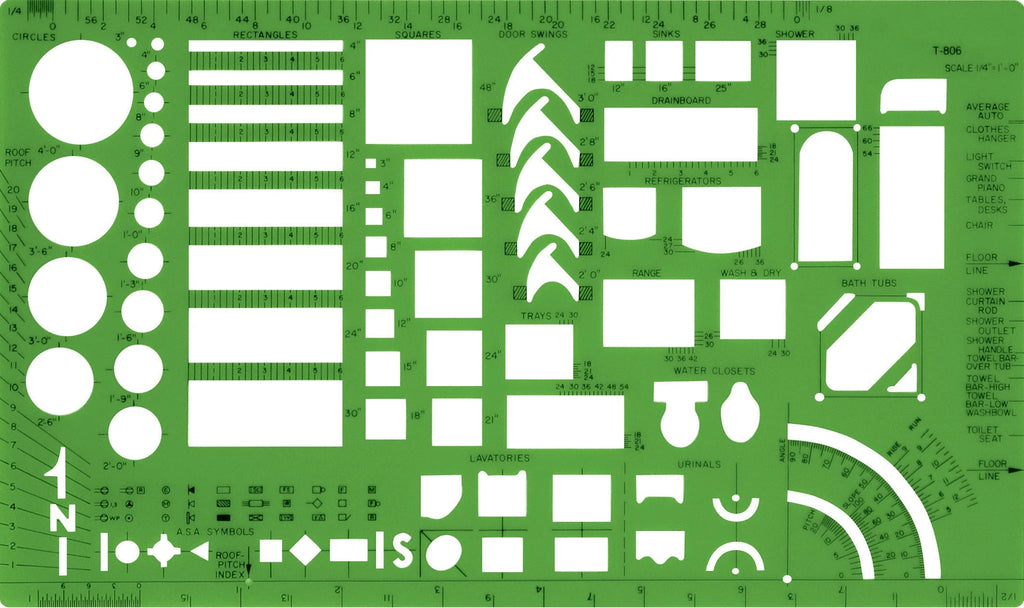

  • Includes fixtures and appliances, ASA symbols roof pitch, gauge, protractor feature with slope, rise and run
  • Scale ¼" equals 1 foot
  • Scaled in ⅛", ¼", ½" and 1" to the foot

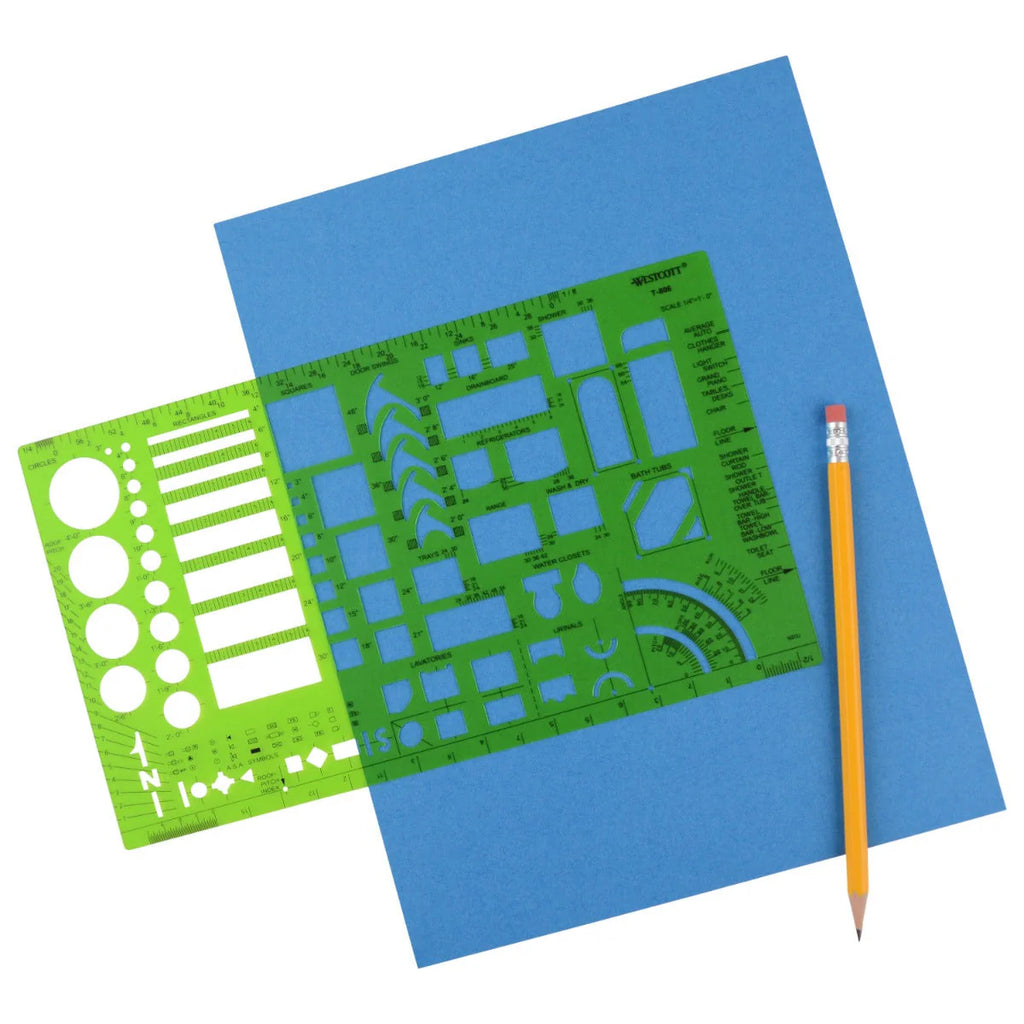

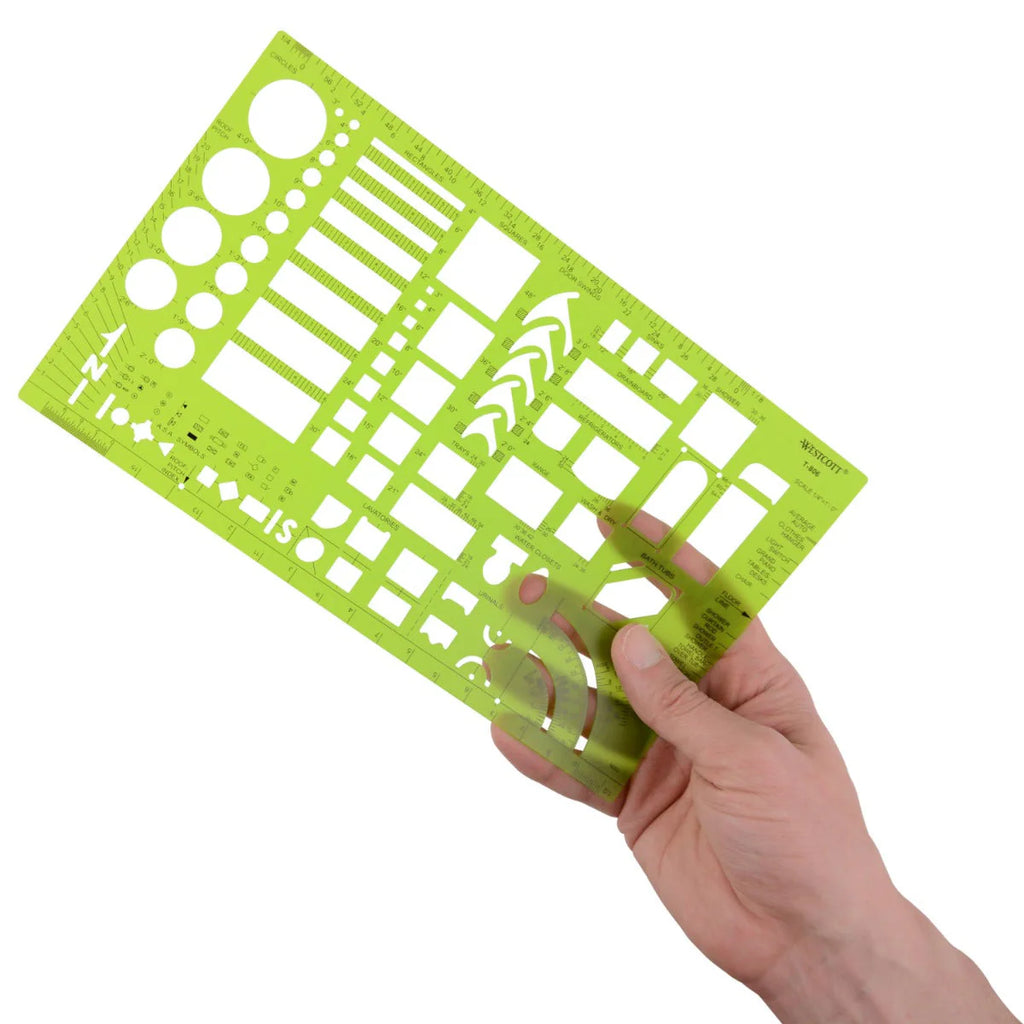

  • Translucent color allowing for viewing through to the page
  • Designed for architects, engineers and builders
