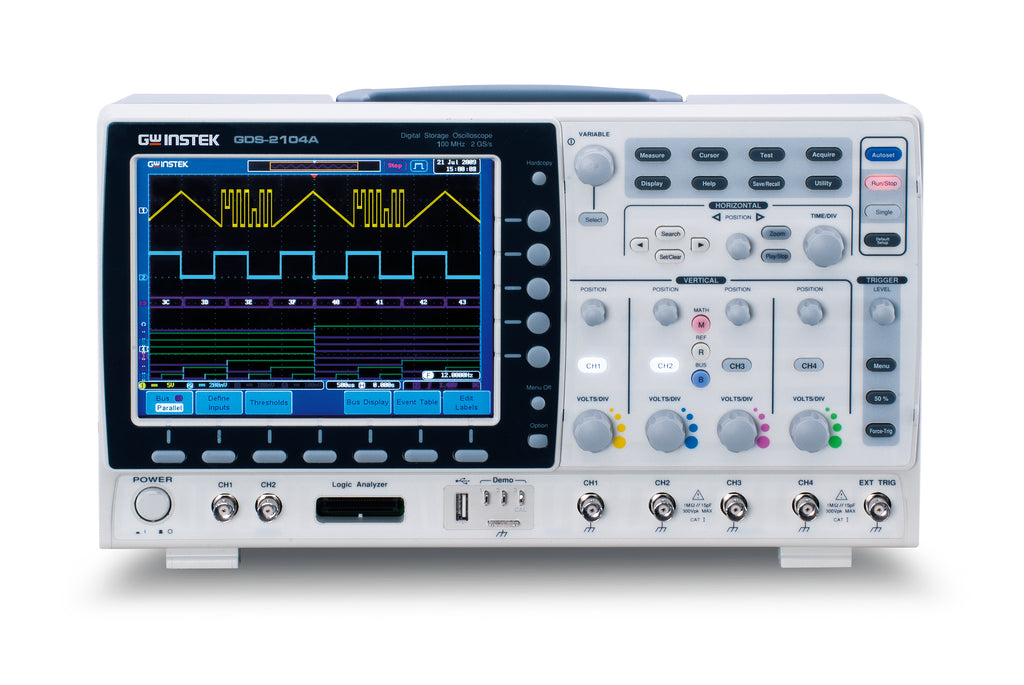

GW Instek 200 MHz, 4 CH Digital Storage Oscilloscope

SKU: 01GDS2104A

Description

100 MHz Bandwidth
4 Input Channels
2 GSa/s Maximum Real-Time Sampling Rate and 100 GSa/s Equivalent Time Sampling Rate
2M points Maximum Record length
8 bits@1M : 1mV~10V Vertical Resolution
1ns/div ~ 100s/div (1-2-5 increments); ROLL: 100ms/div ~ 100s/div Time Base Range
80,000 Waveforms per Second (Max) Waveform Update Rate
8 in. TFT LCD SVGA Color Display (LED Back-light)
800 horizontal x 600 vertical pixels (SVGA) Display Resolution
Visual Persistence Oscilloscope (VPO) Technology to Display Less-Frequently-Occurred Signals
Fast Update Rate of 80,000 Waveform Per Second
Segmented Memory Acquisition and Waveform Search Function
36 Automatic Measurement Functions
Standard Model Provides I2C, UART, SPI Serial Bus Trigger and Analysis Functionality
Optional 5MHz and 25MHz Function Generator (Not Included)
Flexible Remote Control Connectivity (Standard: USB; Optional: LAN/GPIB (Not Included))
Upgradable CAN/LIN Bus, DVM, H-Expansion, Data Log and Advanced Logic Functionality (Upgrade Not Included)
