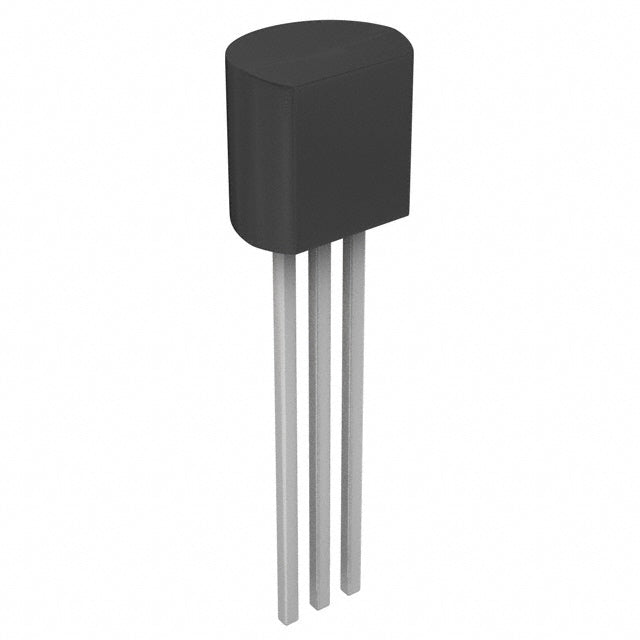

Shunt Voltage Reference IC Fixed 2.5V, ±4% 10mA

SKU: 10336-2.5

  • Sale
  • $0.79

Features:

  • Low Temperature Coefficient
  • Wide Operating Current of 400μA to 10mA
  • 0.2Ω Dynamic Impedance
  • ±1% Initial Tolerance Available
  • Specified Temperature Stability
  • Easily Trimmed for Minimum Temperature Drift
  • Fast Turn-On

Specifications:

  • Reference Type: Shunt
  • Output Type: Fixed
  • Voltage - Output (Min/Fixed): 2.5V
  • Current - Output: 10mA
  • Tolerance: ±4%
  • Current - Cathode: 400 µA
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Mounting Type: Through Hole

10336-2.5 Datasheet
