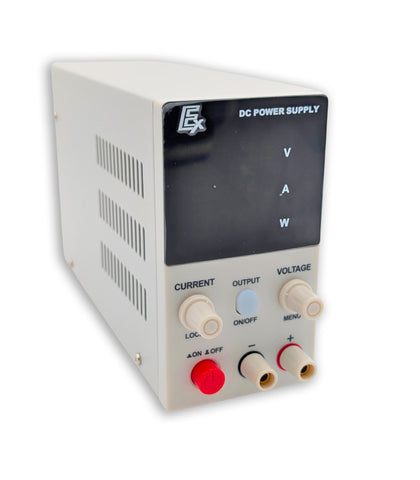

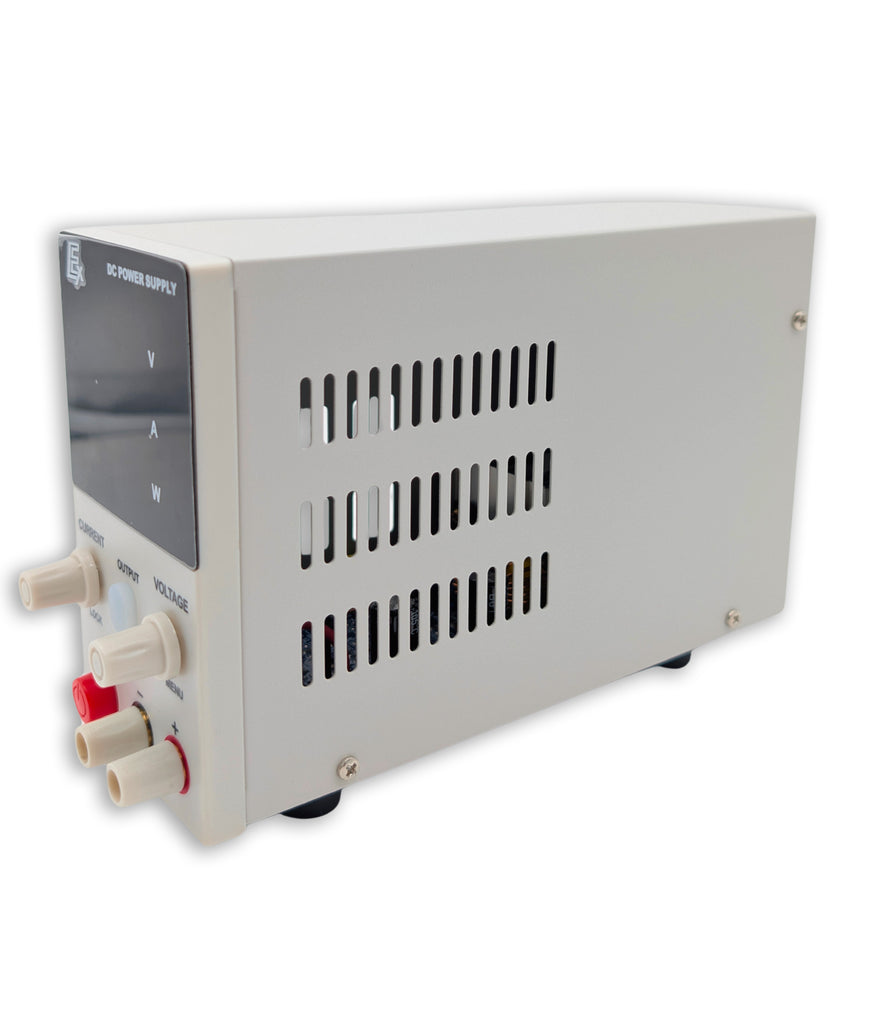

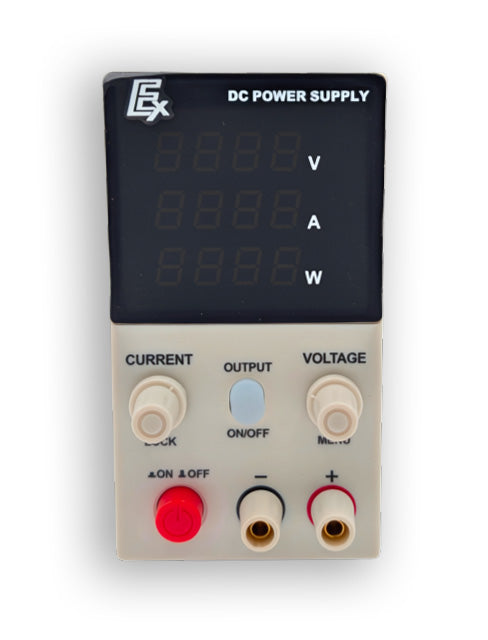

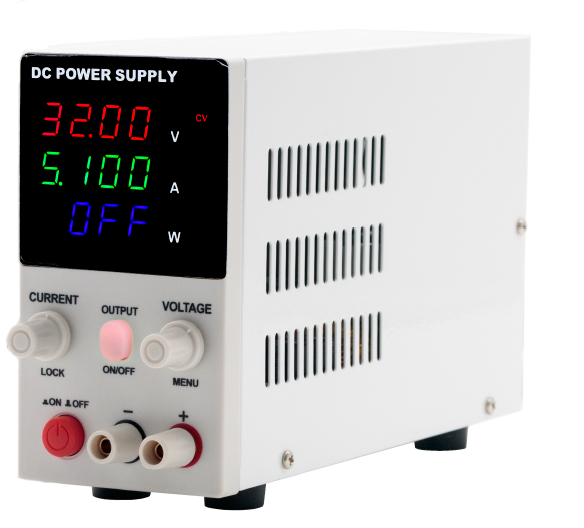

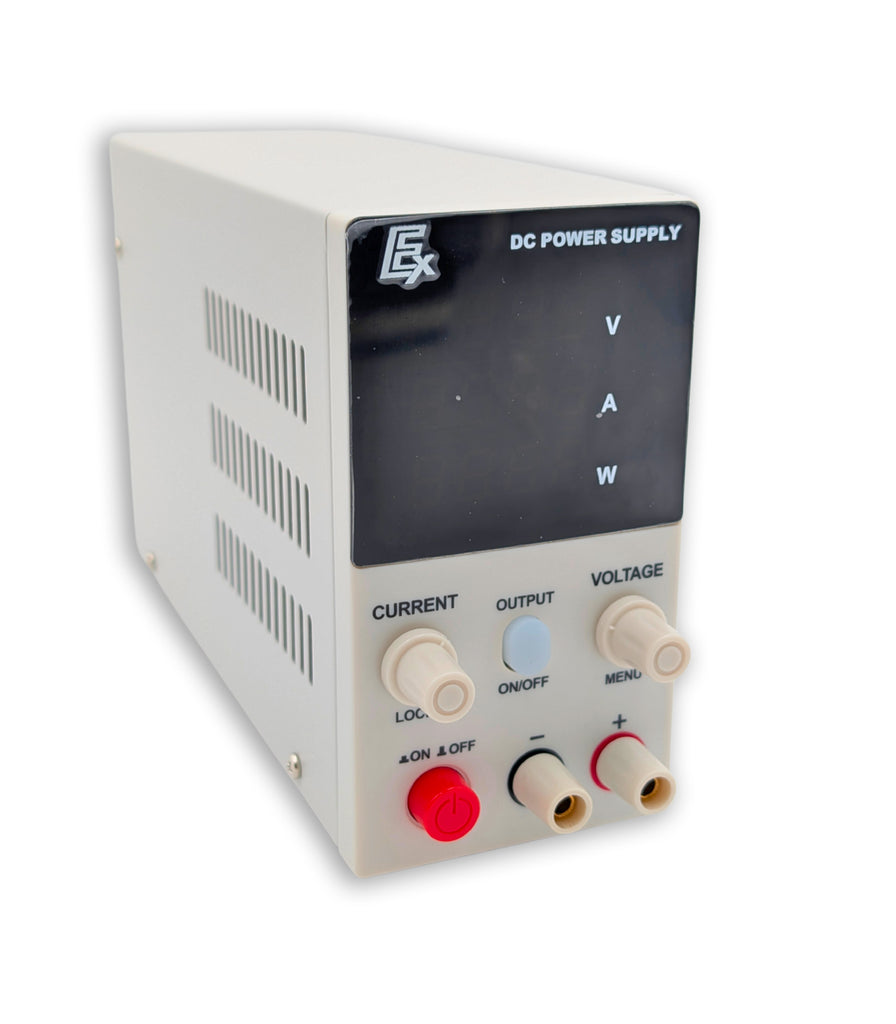

Variable Mini DC Power Supply, 0-30V, 0-5A, 4 Digit LED Display

Features:

• 4 digits LED display

• Adopts post-stage voltage regulation technology

• Constant voltage and constant current operations

• Encode knobs for precise voltage and current adjustment

• Preset voltage and current when output is OFF

• Multiple protections: OVP, OCP, OPP, OTP and short circuit protection

• Adjustable OVP, OCP and OPP range

• Panel lock function

• Beeper alarm function

• Output ON/OFF control

• Intelligent cooling fan

Specifications:

• Rated output: 30V 5A

• Rated power: 150W

• OVP range: 0.1V to110%FS

• OCP range: 0.01A to110%FS

• OPP range: 0.1W to 105%FS

• Line regulation: CV≤0.2%FS, CC≤0.2%FS

• Load regulation: CV≤0.2%FS, CC≤0.2%FS

• Ripple & Noise: CV≤0.5%FS (rms), CC≤0.5%FS (rms)

• Efficiency: ≥85%

• Display meter: 4 digits LED display

• Display range:
  • Voltage 00.0-32.0V

  • Current 0.00-5.10A

• Display resolution

  • Voltage 0.1V

  • Current 0.010A

  • Power 0.01W – 0.1W – 1W auto change

• Display accuracy: ±(0.1%FS + 1 digit)

• Readback accuracy: ±(0.2% FS + 1 digit)

• Protection: Over Current Protection, Over Voltage Protection, Over Power Protection, Over Temperature Protection.
• Operating environment: 0°C ~40°C, ≤80%RH

• Storage environment: -10°C ~70°C, ≤70%RH

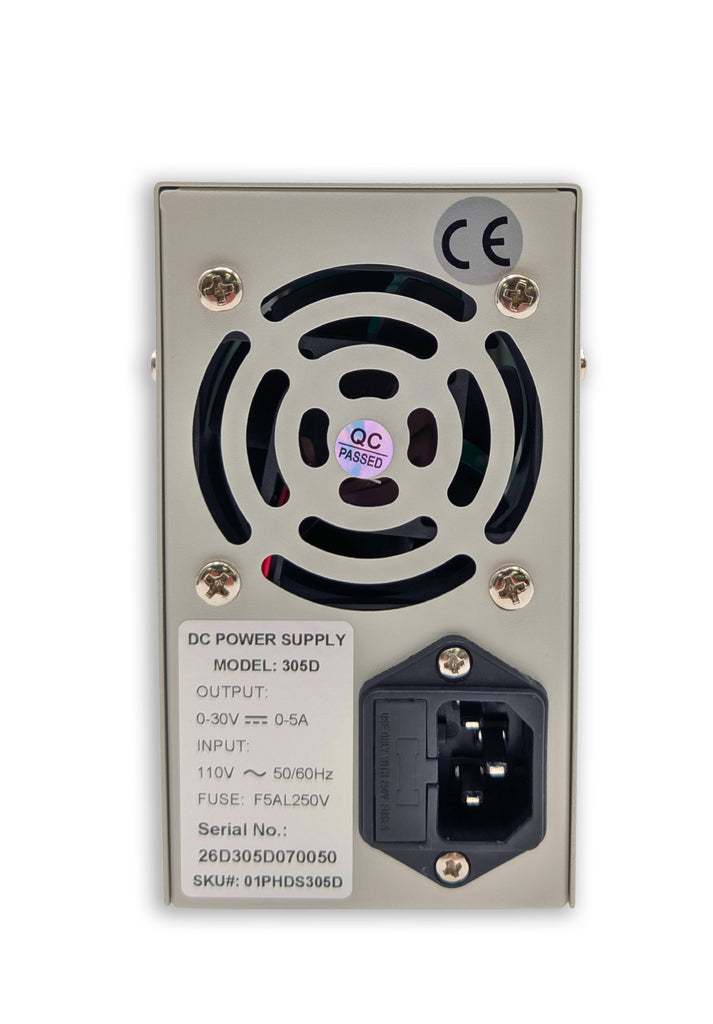

• Power source: AC220V±10%, 50/62Hz (AC110V, AC115V, AC230V, AC240V at request)

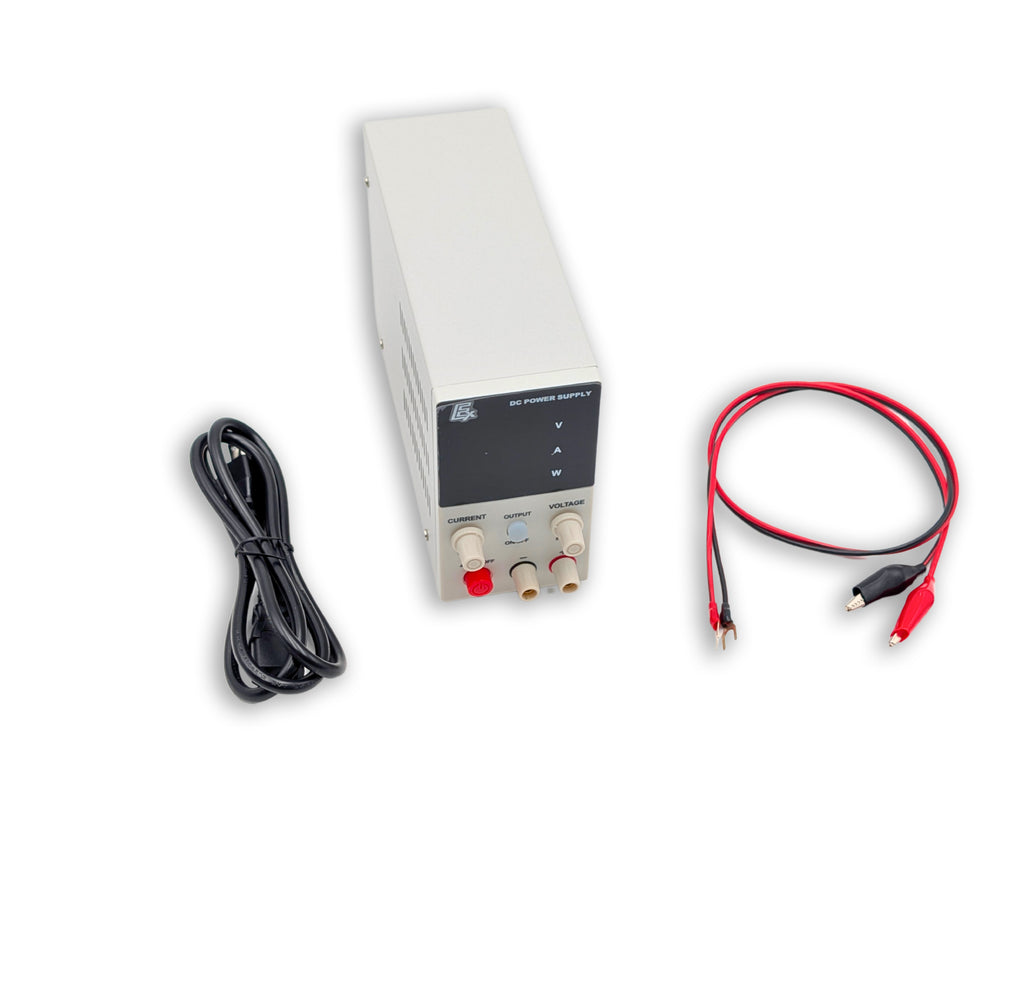

• Accessories: Power cord x1, Operation manual x1

• Dimensions: 73Wx140Hx205D mm

• Weight Approx: 2.2 lb (1kg)
