0.8 inch (20mm) 16 Segment Single Digit Alphanumeric Display, Red, Common Cathode

SKU: 08FY8013AD

  • Sale
  • Regular price $1.95


  • 16 Segment Single Digit Alphanumeric Display, Red
  • 0.8 inch character height
  • Pin Configuration: Common Cathode
  • 18 Pins with 0.1" spacing for easy mounting on breadboards or in sockets
  • Color: black background with white segment that illuminates bright red

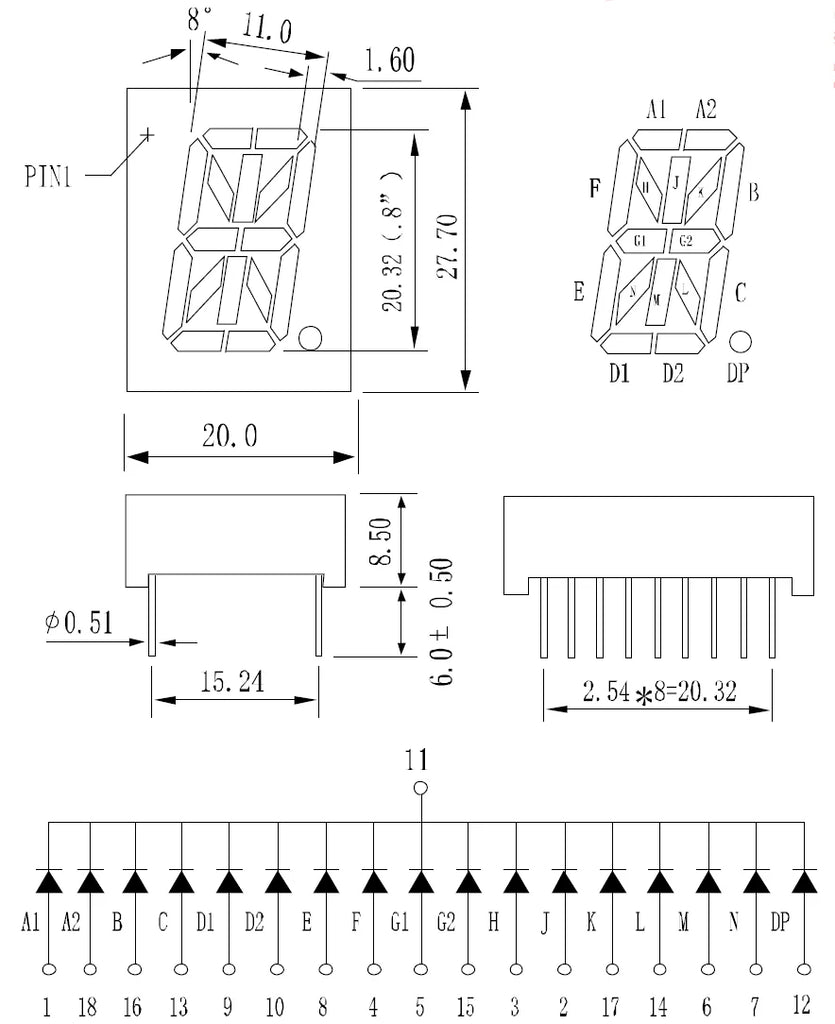

  • NOTE: Please see the product images for pinout diagram

General Specifications:

  • Character height: 0.8 inch (20mm)
  • Size: 0.79" x 0.33" x 1.09" overall
  • Color: black background with white segment that illuminates bright red

Technical Specifications:

  • Forward Voltage, Per Segment: 1.9V min, 2V typ, 2.5V max
  • Reverse Current, Per Segment: 50μA
  • Peak Emission Wavelength: 630nm min, 633nm typ, 637nm max
  • Luminous Intensity, Per Segment: 23mcd min, 25mcd typ, 28mcd max

Applications:

  • Home and Smart appliances
  • Displaying time and digital combination
  • Industrial and instrumental applications such as voltmeters and ammeters, etc.
