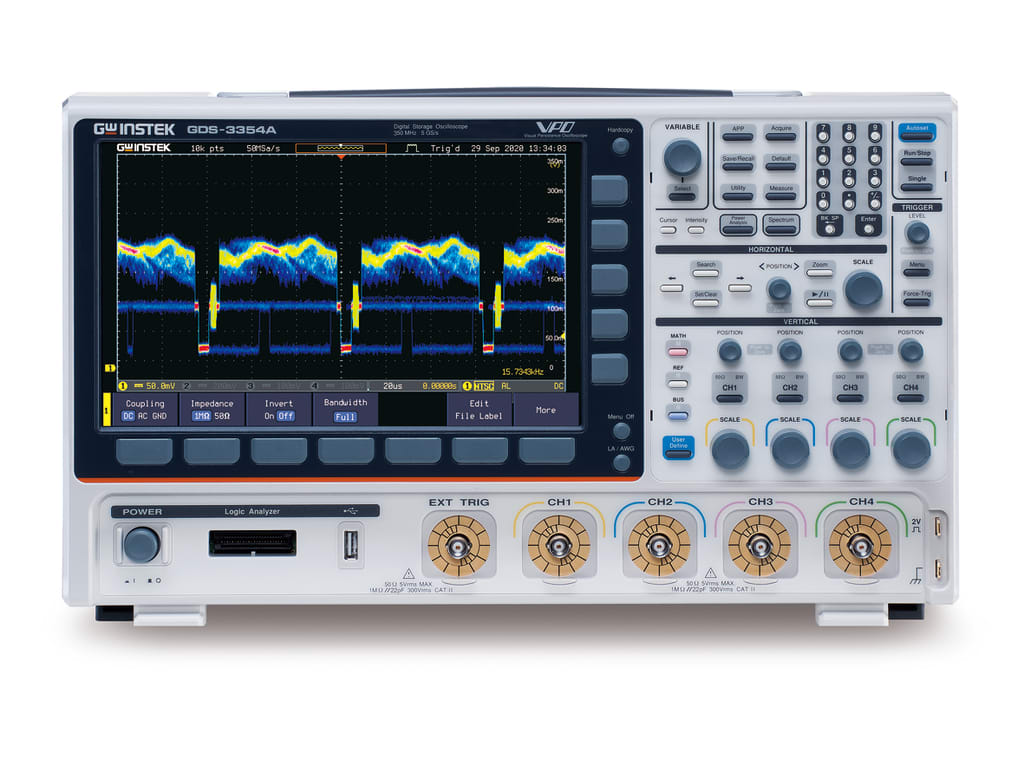

The GDS-3000 Series is a new platform of 4-input channels, 350MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.
Three new differential probes, GDP-025, GDP-050 & GDP-100, and two new current probes, GCP-530 & GCP-1030, are coming along with the GDS-3000 Series to provide total solutions for a wide variety of applications in the industry, service and education market sectors. The GDS-3000 Series, a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.
- 4 analog channels / 350 MHz bandwidth
- 16 digital channels (requires option GDS-DS3A-16LA)
- Dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram
- Dual cannel 25 MHz arbitrary waveform generator
- 13 power analysis measurements (requires option GDS-DS3A-PWR)
- Real time sampling rate: 5 GSa/s (1ch); 2.5 GSa/s (2 ch)
- 200 Mpts memory depth per channel
- 200,000 wfm/s waveform update rate
- 38 automatic measurements

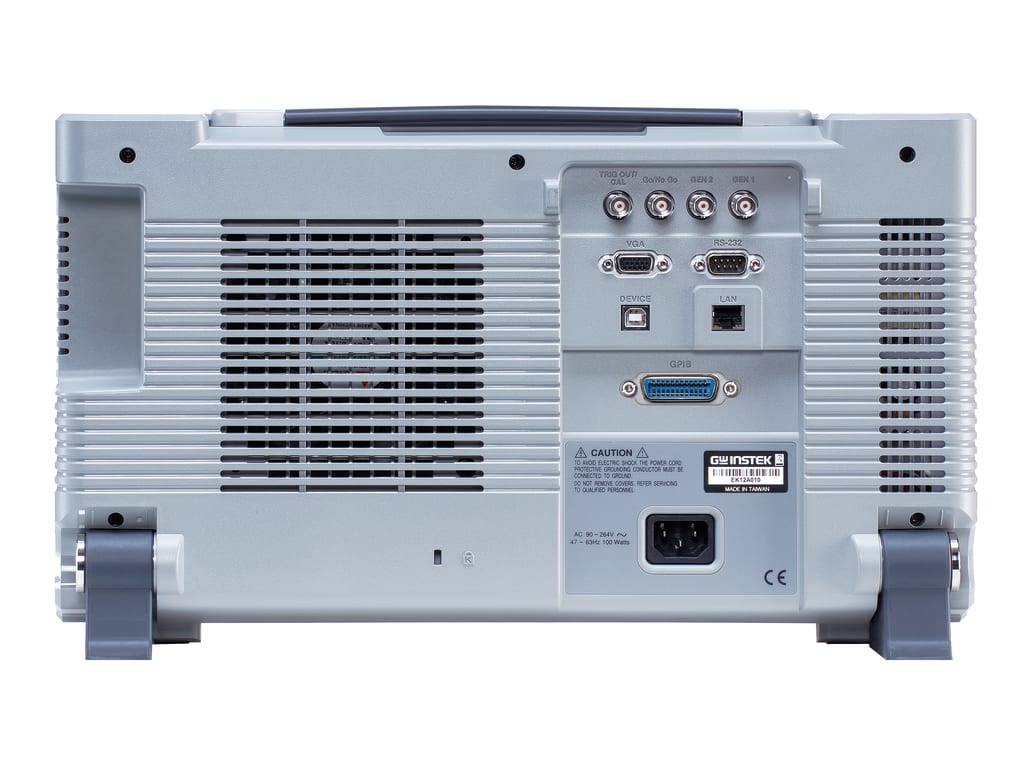

- Standard interfaces: USB, LAN, RS-232; optional GPIB is factory installed
