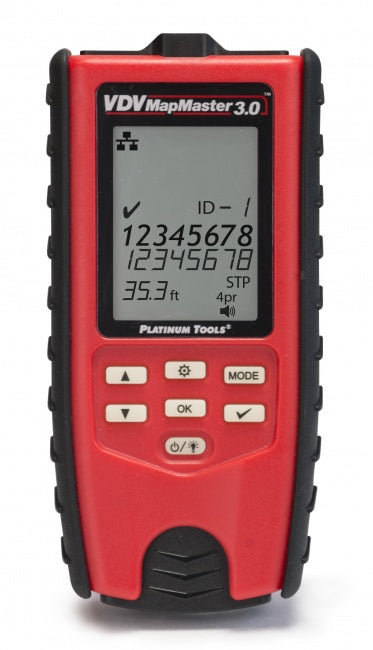

Platinum Tools T130 VDV MapMaster 3.0™ - Cable Tester Main Unit and Remote Only

SKU: 34T130

  • Sale
  • Regular price $142.85

The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer!


  • Detects Open, Shorts, Miswires, Reverses & Split Pairs
  • Tests to T568A/B wiremap configuration: shorts, opens, miswires,reverses and split pairs
  • Single-ended testing for shorts & split pairs
  • Measures length in feet/meters
  • Identifies cable location on active ports using flashing Port Link Light

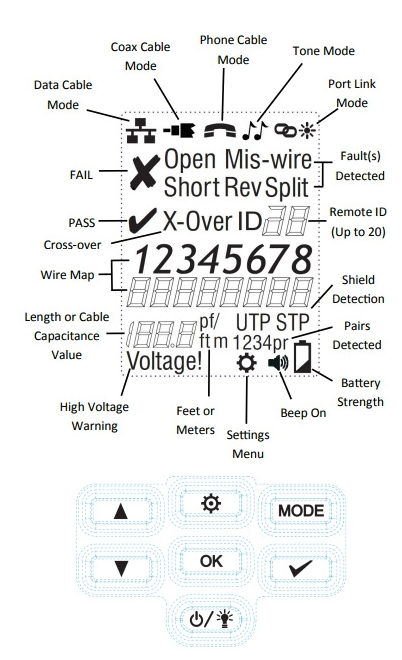

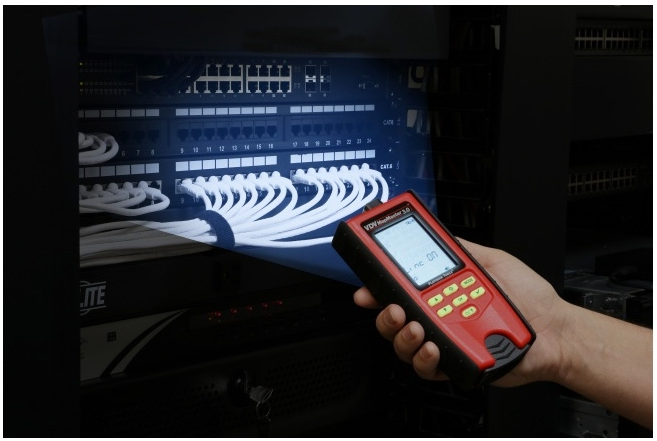

  • Easy to read, backlit LCD screen with large icons, glow-in-the-dark keypad and built-in LED flashlight for use in dark areas
  • Verifies continuity for multiple cable types (LAN, Phone and Video)
  • Audible beep for additional feedback
  • Identify up to 20 network or coax cable runs at a time
  • Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously

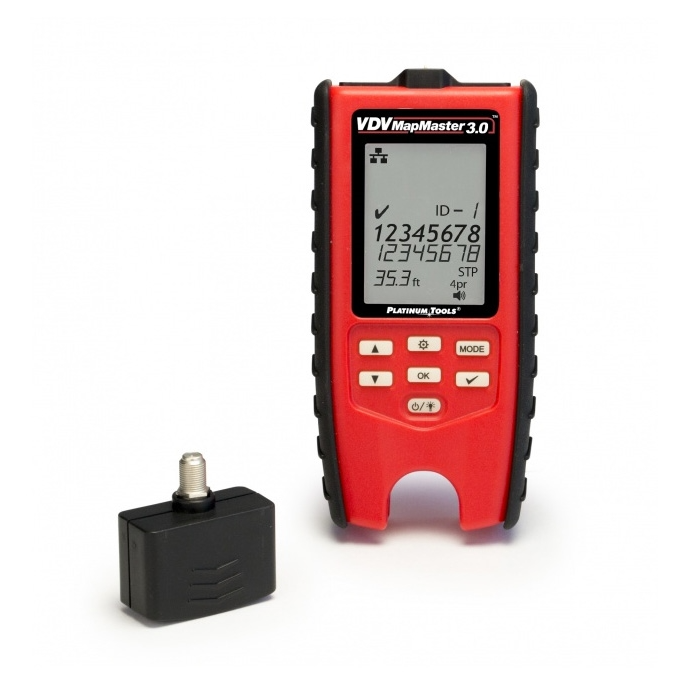

  • Master remote stored in main unit
  • Voltage detection warning icon
  • Continuous loop test mode for trouble shooting
  • Auto-off and timed backlight in any mode for low power consumption and long battery life
  • Audible Tone Generator, 4 selectable cadences


  • Display: Large 2.75” Backlit Monochrome LCD
  • Maximum Voltage: between any two connector pins without damage RJ12/RJ45/F: 50V DC or AC
  • Battery Life: 9V alkaline battery typical: Standby: 4 years / Active: 425 hours
  • Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
  • Maximum RJ Cable Length Testing: 0 to 1,000 feet (305 meters)
  • Minimum Cable Length for Split Pair Detection: 1.5 feet (0.5 meters)
  • Maximum Coax Cable Length: Varies depending on cable resistance varies
  • Low Battery Icon: flashes when battery voltage falls below 6V
  • Measurement Technology: Capacitance testing
  • Length Accuracy Without Length Constant: +/- 3% plus + 1 foot
  • Default Length Constant (Restored with power on reset): Voice (Twisted pair): 17.4 pF/ft / Video (Coax): 16.5 pF/ft
  • Data (Twisted pair): 15 pF/ft
  • Warranty: Limited 1 yr
  • Humidity: 10% to 90%, non-condensing
  • Operating Temperature: 0˚C/32˚F to 50˚C/122˚F
  • Storage Temperature: -20˚/-4˚F to 60˚C/140˚F
  • Dimensions: 6.8” x 3.2” x 1.4” (17.3 x 8.1 x 3.5 cm)
  • Weight: 10.8 oz. (305 grams) with battery and remote
