RSR

Variable DC Power Supply 0-18V DC, 0-3A with LCD Displays

SKU: 01PHSY1803D

  • Sale
  • Regular price $78.95


Features:

  • Voltage Adjustable: 0-18V DC
  • Current Adjustable: 0-3A
  • Constant voltage or current operation

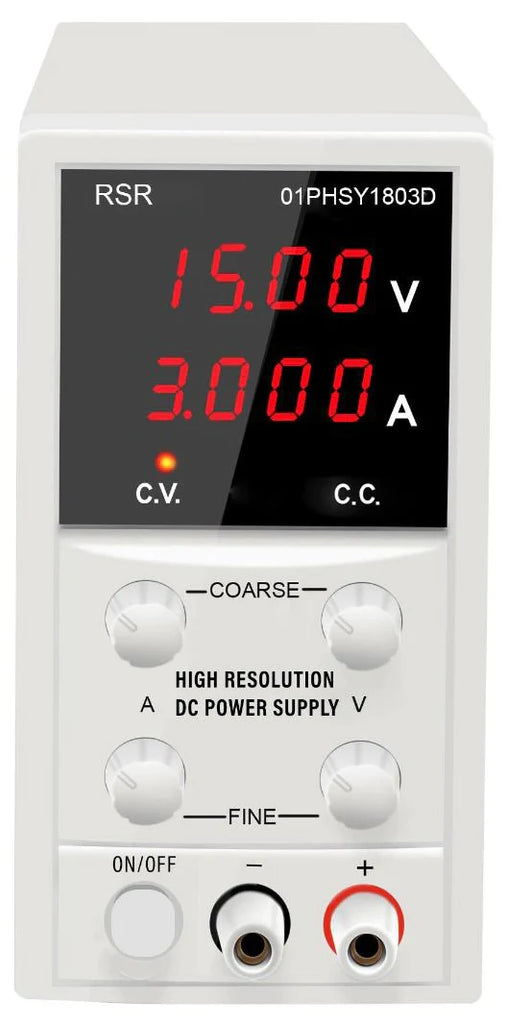

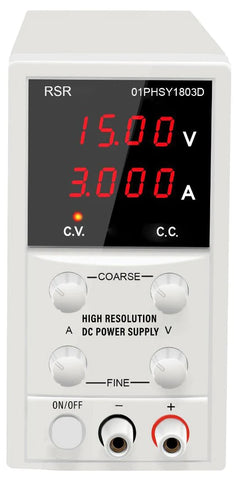

  • LCD displays both current and voltage
  • Current limiting and short circuit protection

Specifications:

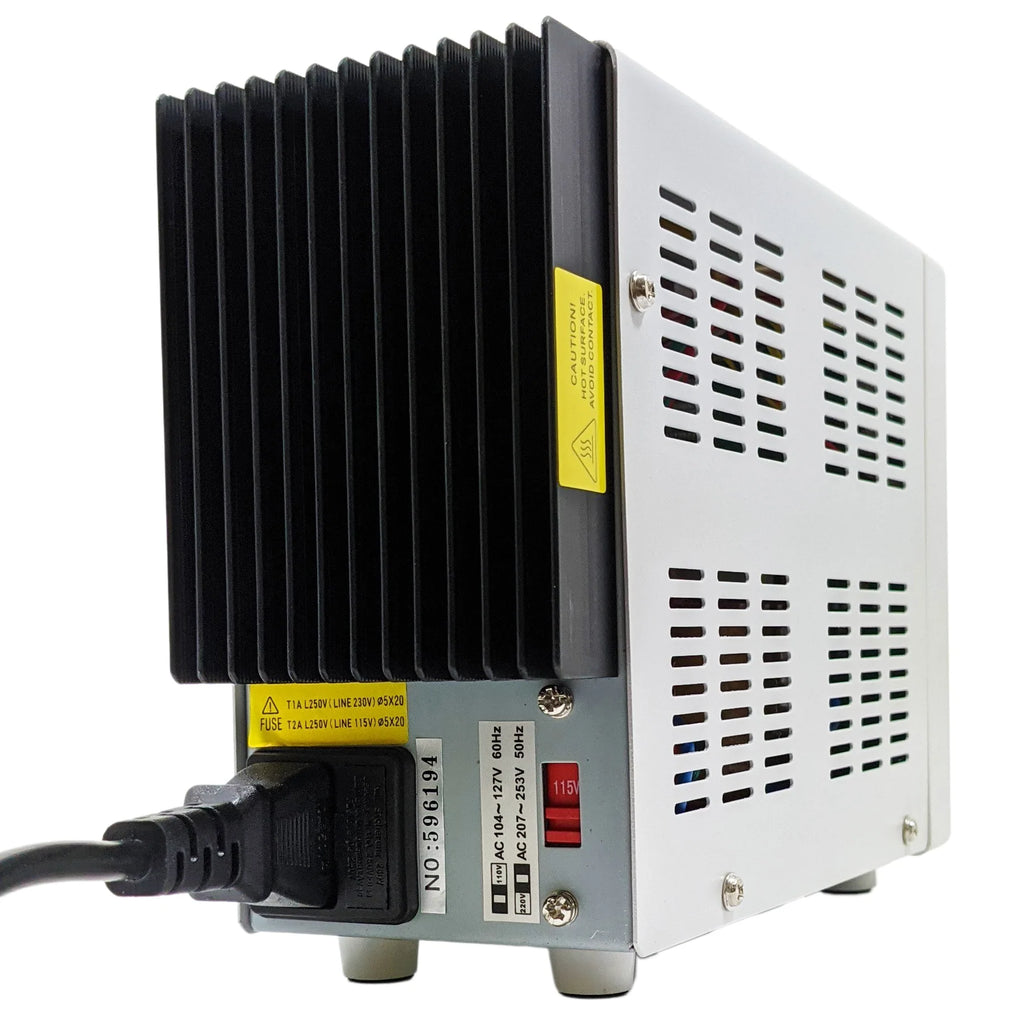

  • Input voltage, change via switch on back of unit: 104~127V AC (60Hz), 207~253V AC (50Hz)
  • Line regulation: CV≤0.01%+1mV CC≤0.2%+1mA
  • Load regulation: CV≤0.01%+3mV CC≤0.2%+3mA
  • Ripple and noise: CV≤0.5mVr.m.s CC≤3mAr.m.s
  • Protection: constant current and short-circuit protection
  • Voltage indication accuracy: LED±0.5%+5digits
  • Current indication accuracy: LED±0.5%+5digits
  • Environment: 0 ~ +40 °C relative humidity:<90%
  • Dimensions: 9" x 3.1" x 6.25"
  • Weight: ~5.12 lbs.
