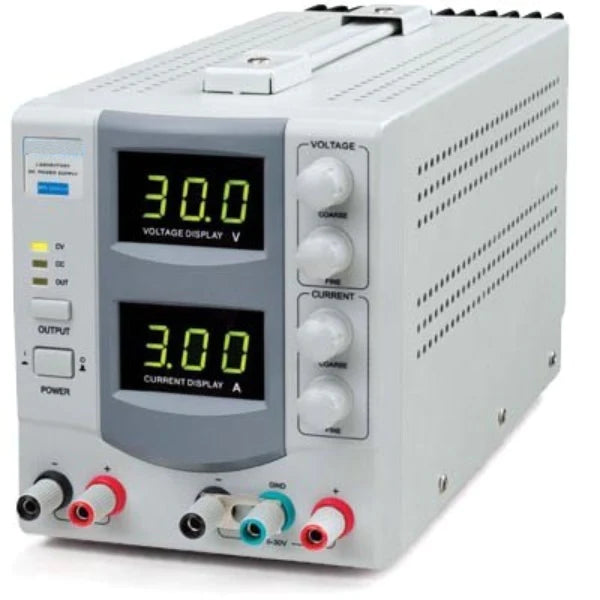

RSR DC Power Supply, Dual Output, 0-30V, 0-5A, 5V Fixed @ 1A

Features:

• 0-30V; 0-5A
• +5V @ 1A fixed
• Two digital panel meters (LED)
• Constant voltage and current operation
• Output switch off function (output standby)
• Dual Output DC Power Supply: 0-30V, 0-5A and 5V Fixed @ 1A.
• Overload and reverse polarity protection
• High power density

Specifications:

• Output Voltage (CV): 0~30V, 5V (Fixed)
• Output Current (CC): 0~5A, 1A (Fixed)
• Ripple Rejection: 0.5 mVrms
• Line Regulation: ≤0.01%+2mV
• Load Regulation: ≤0.01%+2mV
• Voltage Resolution: 0.1V
• Current Resolution: 0.01A
• 5V / 1A Fix Output Volt Accuracy: ±1%
• 5V / 1A Fix Output Ripple: ≤2mVrms
• Transient Recovery Time: 100µS (50% Load Charge, Minimum Load 0.5A)
• Voltage Readout: LED Display
• Current Readout: LED Display
• Operating Environment: 0~40℃, 80%R.H.
• AC Power Source: AC 110/220v ± 10% , 50/60Hz
• Accessories: Input Power Cord, Manual , Output Cable
• Dimensions: (W*D*H mm) 130×330×165
• Weight (KG): 7.2
