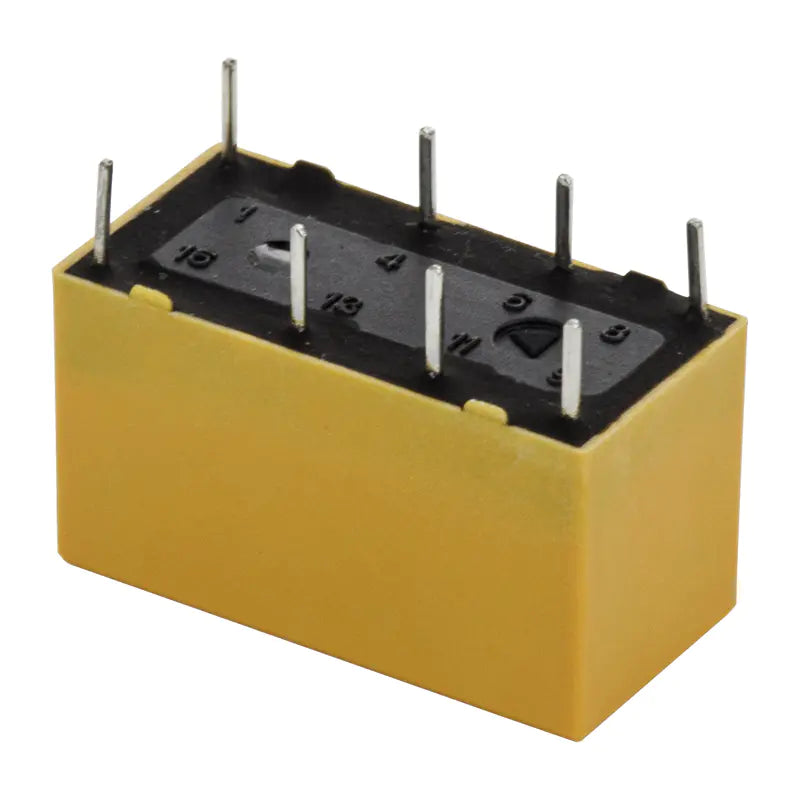

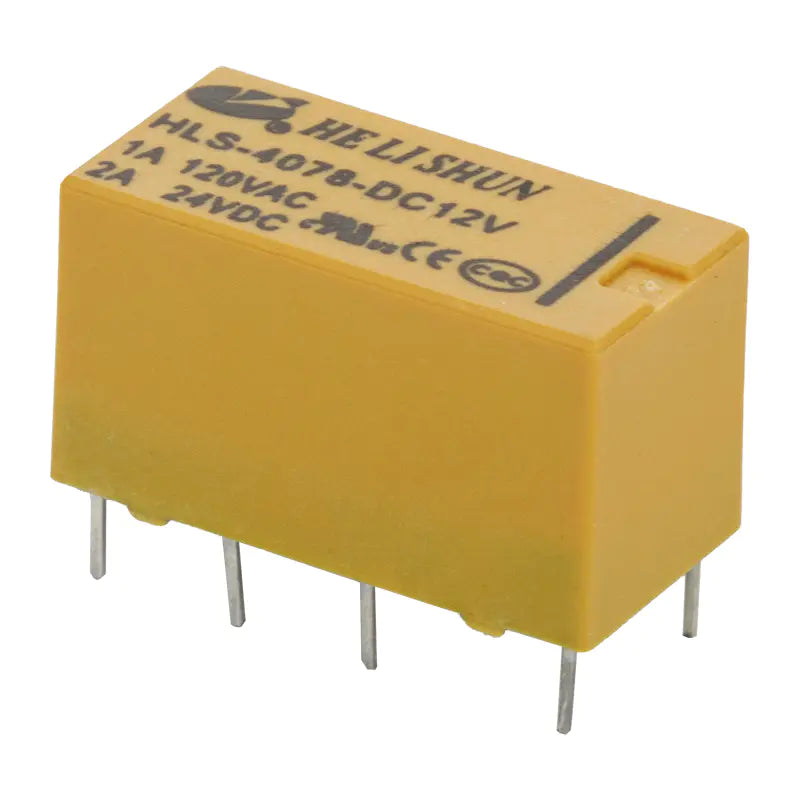

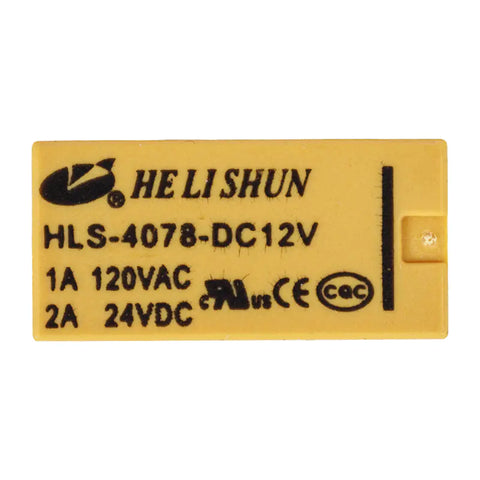

12V Relay DIP, Coil Arrangement: 2 Form C (DPDT), Capable of Switching Loads up to 2A, HLS-4078-DC12V

SKU: 22RZ12

  • Sale
  • Regular price $2.50


Features:

  • Suitable for handling low signals in computer peripherals, telecommunications and security equipment
  • Standard DIP Package

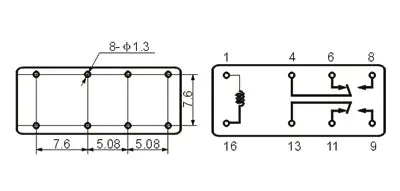

  • Coil arrangement : 2 FORM C (DPDT)
  • Capable of Switching Loads up to 2A
  • Nominal Coil Voltage: 12V, Tolerance: ±20%

Contact Data:

  • Contact Form: 2C
  • Contact Material: Ag+Au
  • Contact Ratings: 1A 120VAC; 2A/24VDC
  • Max Switching Voltage: 240VAC/60VDC
  • Max Switching Current: 2A
  • Max Switching Power: 120VA/30W
  • Initial Contact Resistance: 50m Ω Max at 6VDC 1A
  • Life Expectancy Electrical: 100,000 Operations(rated load)
  • Life Expectancy Mechanical: 10,000,000 Operations(no load)

General Data:

  • Insulation Resistance: 100M Ω Min at500VDC
  • Dielectric Strength Between Open Contacts: 500VAC 50-60HZ( 1 minute)
  • Dielectric Strength Between Contacts And Coil: 1000VAC 50-60HZ( 1 minute)
  • Operate Time: 6ms max
  • Release Time: 4ms max
  • Ambient Temperature: -30 ℃ to+70 ℃
  • Shock Resistance:
    • Malfunction: 10G
    • Destruction: 15G
  • Vibration Resistance: 10-55Hz,1.5mm double amplitude
  • Ambient humidity: 40-85% RH
  • Weight: Approx 5g
  • Safety Standard: UL CE CQC
