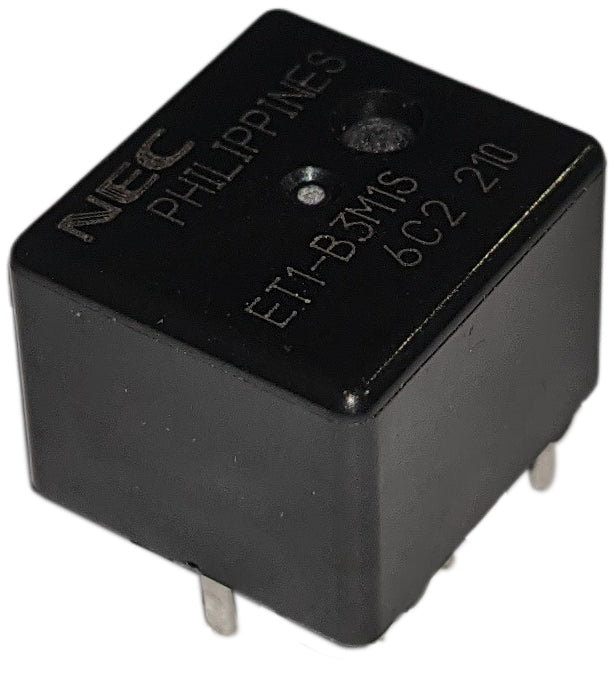

NEC 12V Relay SPDT 225Ω Coil Resistance, 53.3 mA Nominal Current (ET1-B3M1S)
NEC 12V Relay SPDT 225Ω Coil Resistance, 53.3 mA Nominal Current (ET1-B3M1S)
NEC 12V Relay SPDT 225Ω Coil Resistance, 53.3 mA Nominal Current (ET1-B3M1S)
NEC 12V Relay SPDT 225Ω Coil Resistance, 53.3 mA Nominal Current (ET1-B3M1S)

Electronix Express

NEC 12V Relay SPDT 225Ω Coil Resistance, 53.3 mA Nominal Current (ET1-B3M1S)

SKU: 22RP12

  • Sale
  • $1.75
  • Nominal Voltage: 12 Vdc
  • Coil Resistance: 225Ω (225 Ohms)
  • Nominal Current: 53.3 mA
  • Must Operate Voltage: 6.5 Vdc
  • Must Release Voltage: 0.9 Vdc
  • Nominal Operate Power: 0.64 W
  • Contact Form: SPDT
  • Contact Current Rating: 25 A

RP12 Datasheet
