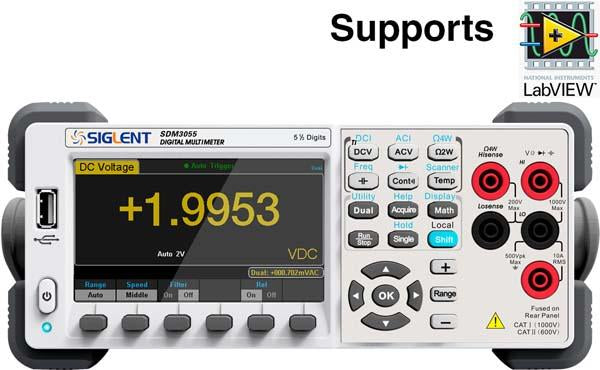

Siglent SDM3055 5 1/2 Benchtop Digital Multimeters with USB and LAN

SKU: 01SDM3055

  • Sale
  • Regular price $499.00

The new Siglent SDM3055 is a new 5 digit dual-display digital multi-meter and features many math and statistical functions It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for users who needs include high performance, multiple functions, and automatic measurements, is a high performance desktop multi-meter.


  • SDM3055 Benchtop Digital Multi-meters with USB, and LAN
  • 4.3 inches true color TFT-LCD display
  • Up to150rdgs / s measurement speed
  • 1Gb NAND Flash, supports U disk expansion
  • Built-in thermo-couple cold-junction compensation
  • Configuration Interface: USB Host & Device, LAN
  • Supports remote control commands provided PC software
  • Dual display, Chinese and English menu
  • Support VXI11, USBTMC
  • Up to 150rdgs / s measurement speed
  • 1Gb Nand Flash total capacity, mass storage settings and data files, supports expandable storage to external U disk
  • Built-in thermo-couple cold junction compensation, supports dual-display operation
  • Chinese and English menus
  • Built-in help system to facilitate information acquisition and document management
  • Extensive math functions which include measuring the signal's minimum / maximum / average / standard deviation. Also readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms, trend curves, bar graphs, etc
  • Supports remote command and control, compatible with the mainstream multimeter command scripts and comes standard with PC software EASYSDM
  • 4.3 inch (480 * 272) true color TFT-LCD large screen display, and comes configured for variety communication interfaces with USB Device, USB Host, LAN, GPIB (SDM3055A only) ports.


  • Research and education
  • Testing and maintenance, measuring
  • Signal measurement and analysis statistics
  • Electronic products, manufacturing
  • Electrical, electronic, automated testing, etc.
