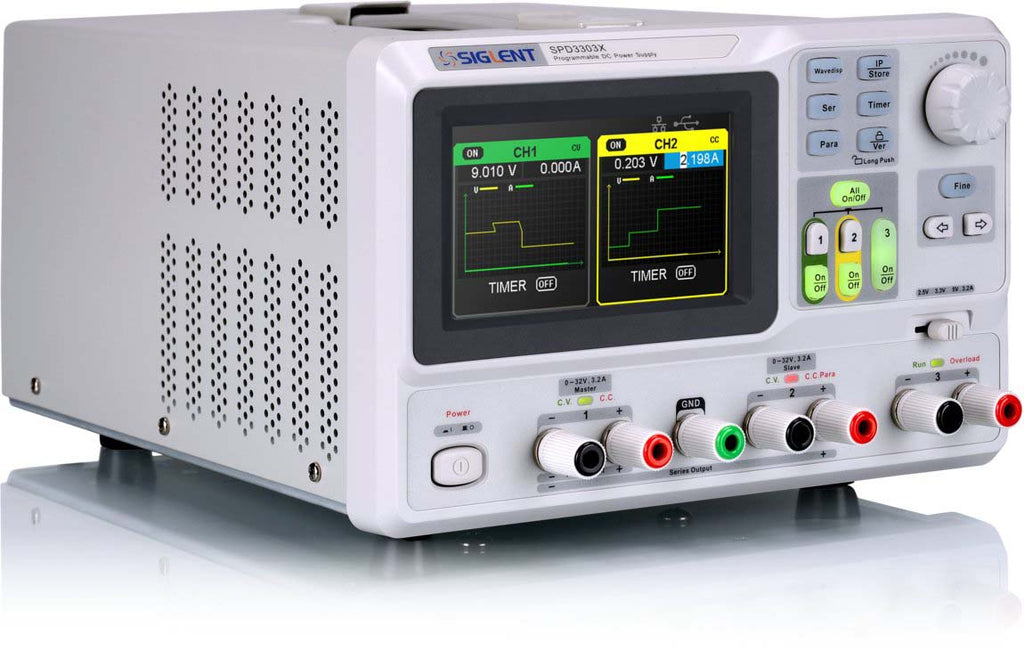

Siglent SPD3303X-E 10mV/10mA Triple Programmable DC Power Supply

SKU: 01SPD3303X-E

  • Sale
  • Regular price $399.00

SPD3000X Series Linear Programmable DC Power Supply has a 4.3 inches TFT_LCD display, Supports Programmability and Real Time Wave Display, bringing a new experience to USErs. It has three isolated outputs: two adjustable channels and one selectable channel from 2.5v, 3.3V, and 5V. It also has output short and overload protect function, and can be USEd in production and development.


  • 3 independent controlled and isolated output, 32V/3.2A,2, 2.5V/3.3V/5V/3.2A,1, total 220W.
  • 5 digits Voltage, 4 digits Current Display, Resolution: 10 mV / 10 mA
  • Supports panel timing output functions.
  • 4.3 inch true color TFT- LCD 480x272 pixel display.
  • 3 kinds of output modes: independent, series, parallel.
  • 100V/120V/220V/230V compatible design to meet the needs of different power grids.
  • Intelligent temperature-controlled fan , effectively reducing noise.
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/recall, supports data storage space expansion.
  • Provides PC software: Easypower , supports SCPI , Labview driver.
