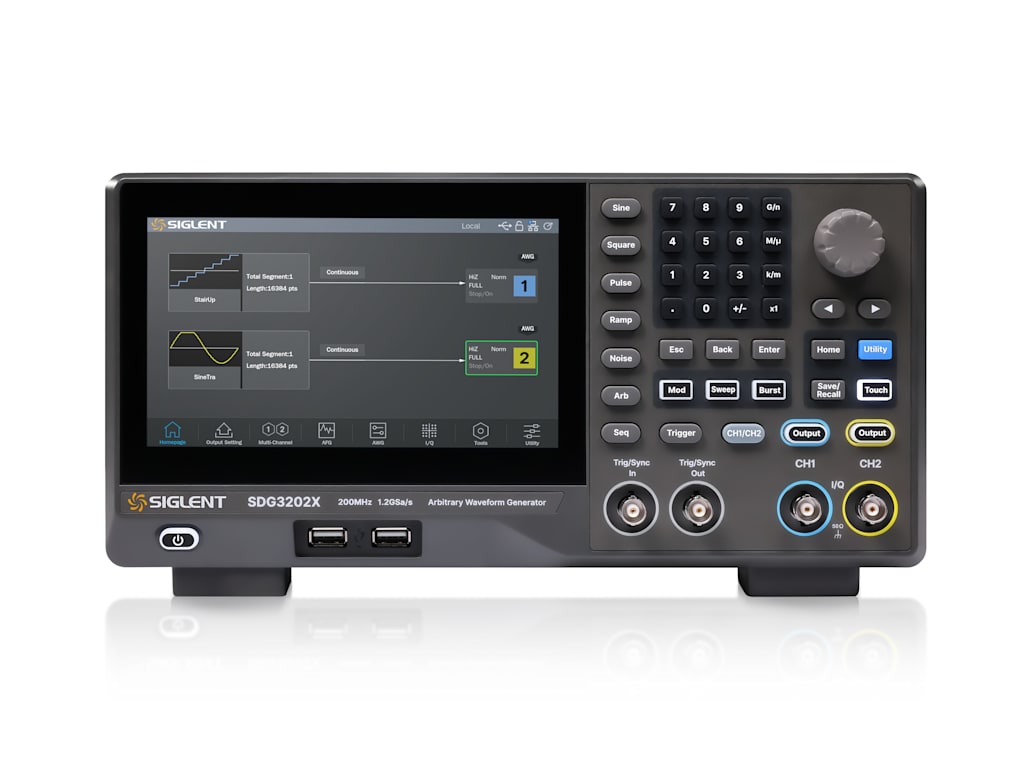

The SDG3000X series dual-channel function/arbitrary waveform generator is available with multiple bandwidths, a sampling rate of 1.2 GSa/s sampling rate with 16-bit vertical resolution. Based on traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector-signal output functions to meet a wider range of application needs.
- 200 MHz, 2 CH Generator
- TrueArb technology: arbitrary waveforms can be output point by point, 196 built-in arbitrary waveforms
- Sequence wave playback function with a maximum waveform memory of 40 Mpts per channel (optional)
- EasyPulse technology can output low-jitter square waves/pulses with fine adjustments
- Dual pulse output function to measure the switching parameters and evaluate dynamic characteristics
- Supports PRBS (Pseudorandom Binary Sequence) up to 120 Mbps
- Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst functions, harmonic function, waveform combining function
- High precision Frequency Counter
- Built-in WebServer supports instrument control via web browser
- 7-inch touch display
