MG Chemicals

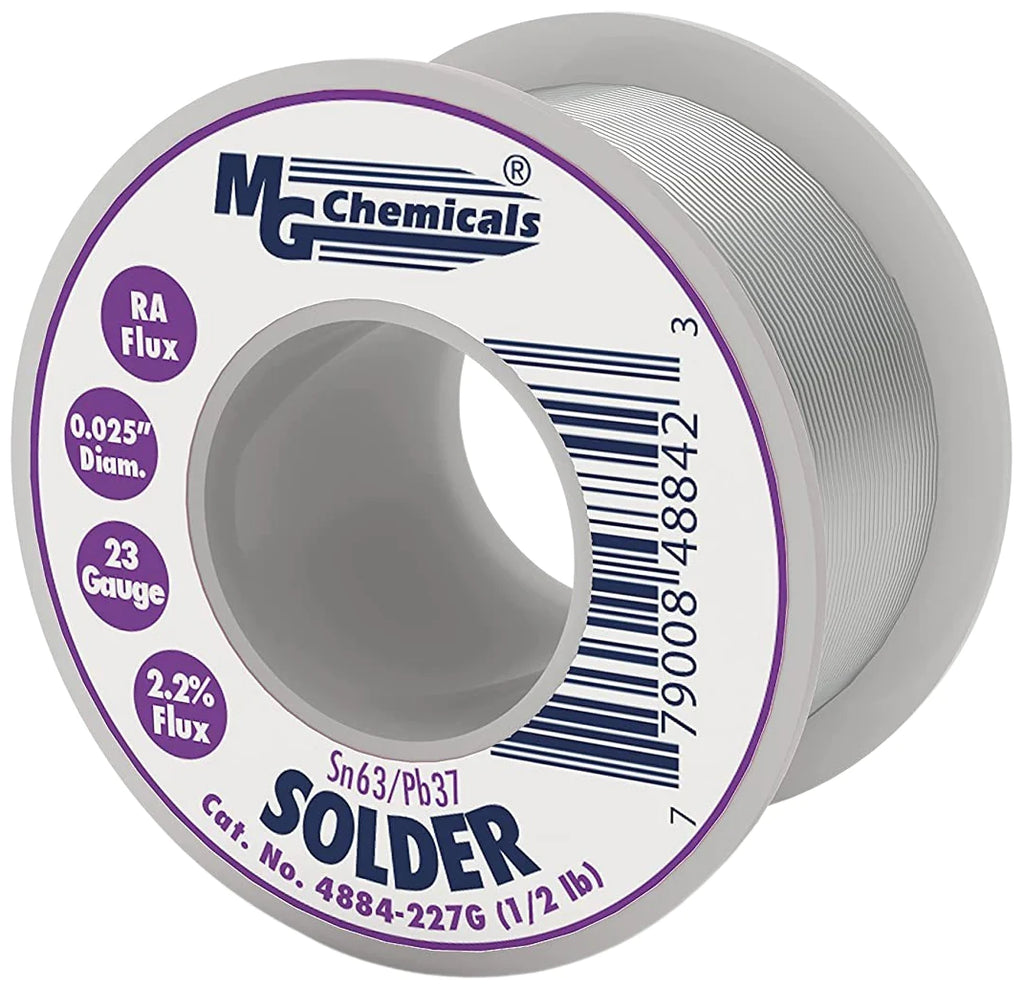

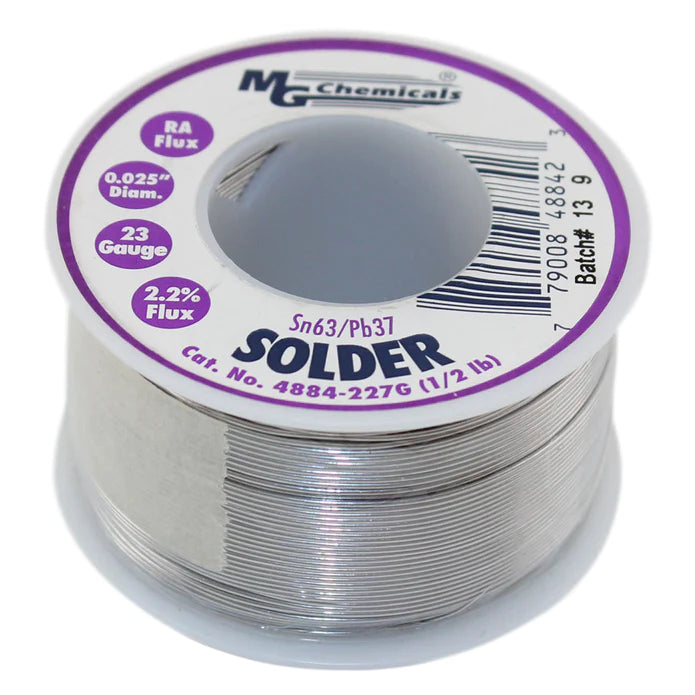

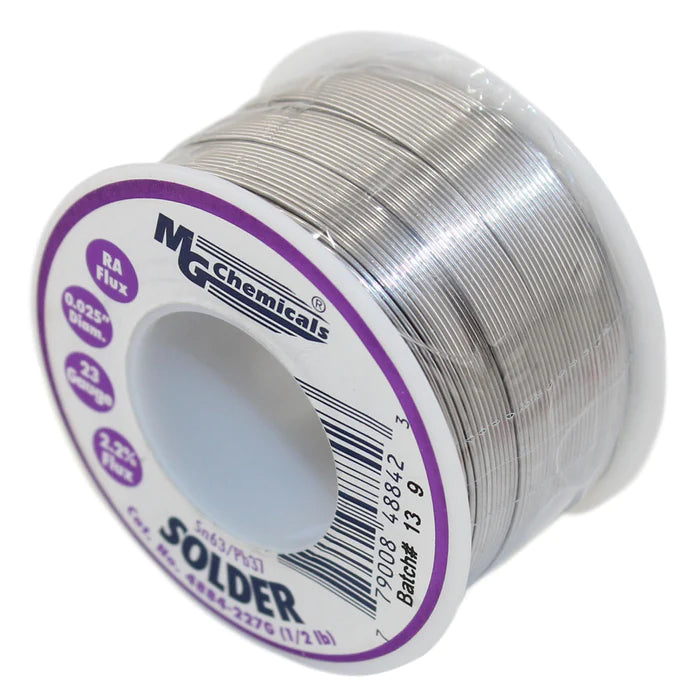

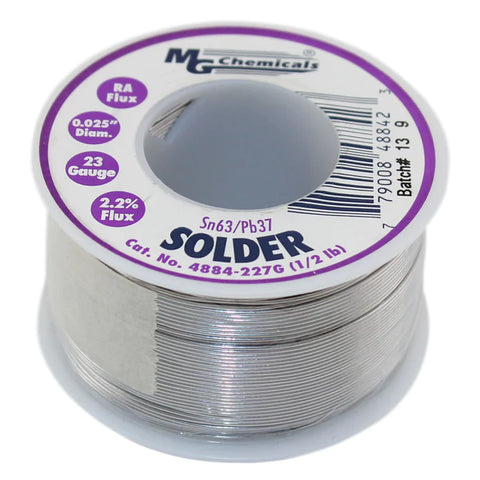

MG Chemicals 63/37 Rosin Core Leaded Solder, 0.025" Diameter (23 Gauge), 1/2 lbs Spool (4884-227G)

SKU: 254884227G

  • Sale
  • Regular price $29.95

4884 Sn63/Pb37 RA Solder Wire is electronics grade solder wire. This 63/37 solder uses the eutectic tin-to-lead alloy ratio, which is complemented with an RA-like flux core. This tin-lead solder wire meets J-STD-004B, ASTM B 32, and exceeds J-STD-006C specifications. It is one of the easiest solders to work with because it offers a low-melting temperature with a sharp melting/solidification point, which results in robust and reliable joints that are highly resistant to whisker formation.

This 63/37 rosin core solder achieves a consistent solder and flux percentage thanks to our state-of-the-art extrusion wire-drawing machine, which continuously monitors the wire to prevent voids and ensure consistency, providing a top-grade solder wire.

  • Weight: 227 g (0.5 lb)
  • Diameter: 0.63 mm (0.025 in)
  • Gauge: 23
  • Eutectic alloy (liquidus = solidus temperature)
  • Alloy exceeds J-STD-006C and meets ASTM B 32 purity requirements
  • Flux meets J-STD-004B
  • Rosin-activated flux
  • Fast wetting
  • Fast flowing
  • Non-corrosive residue
  • Non-conductive residue
