Electronix Express

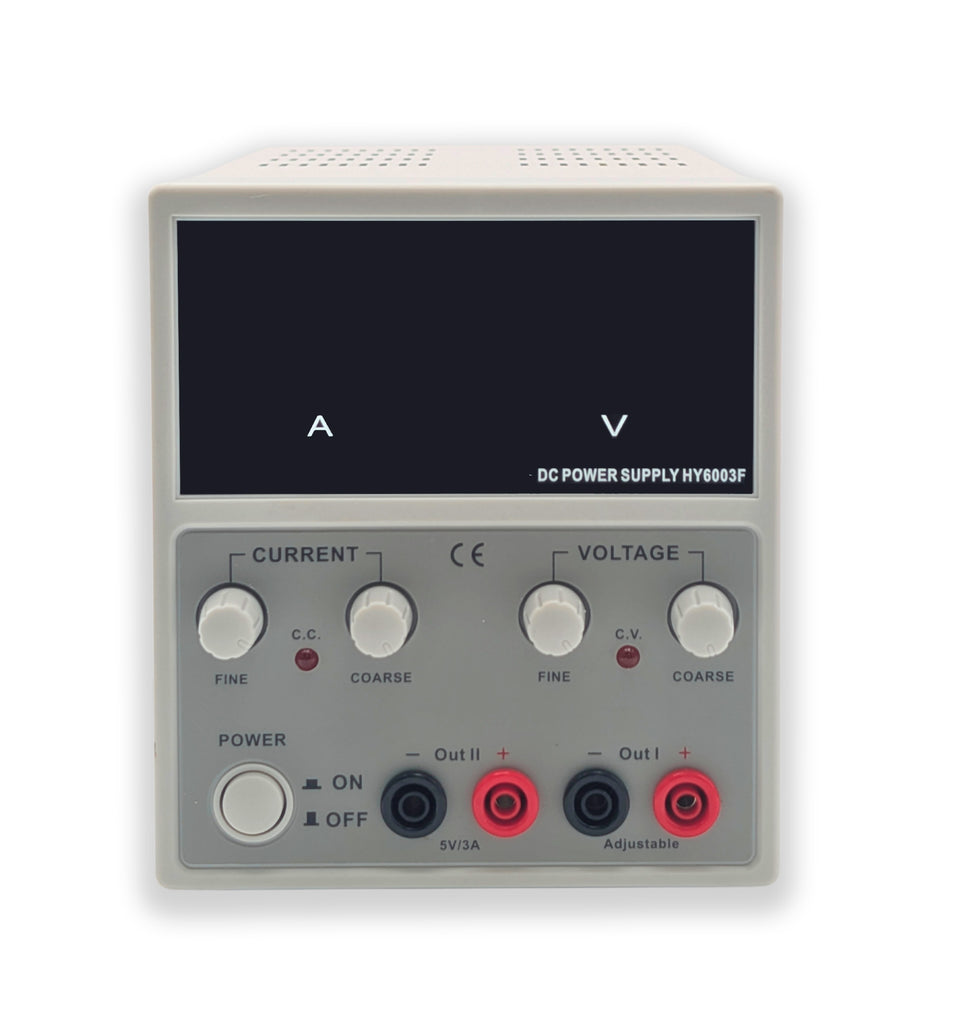

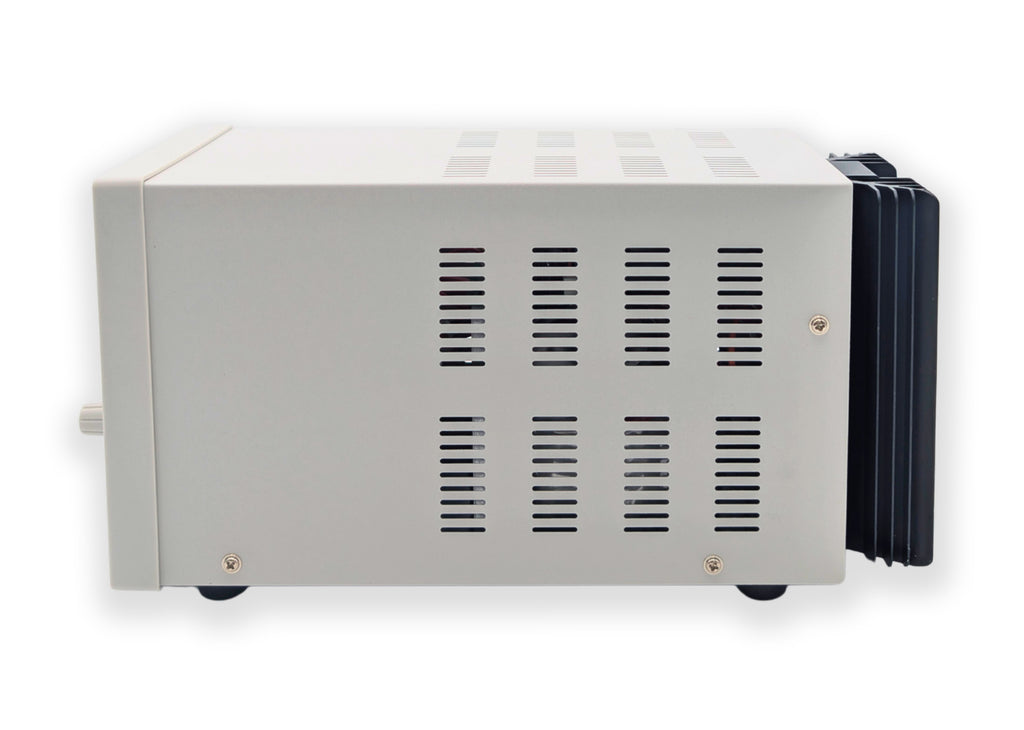

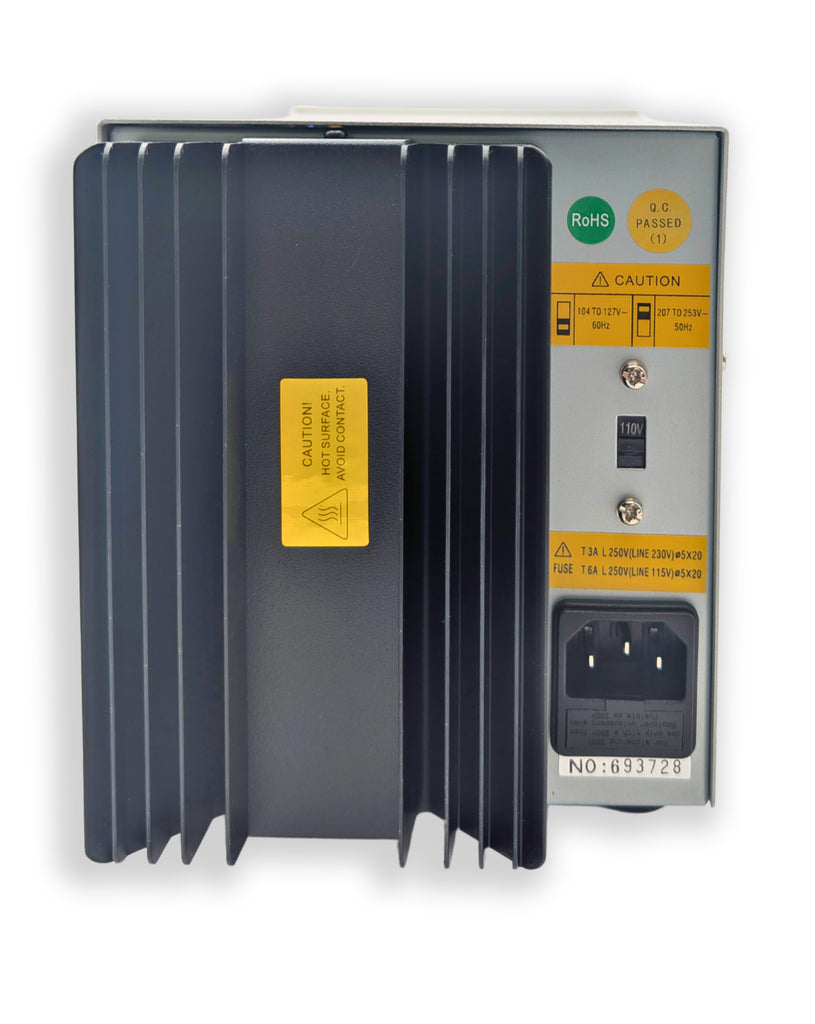

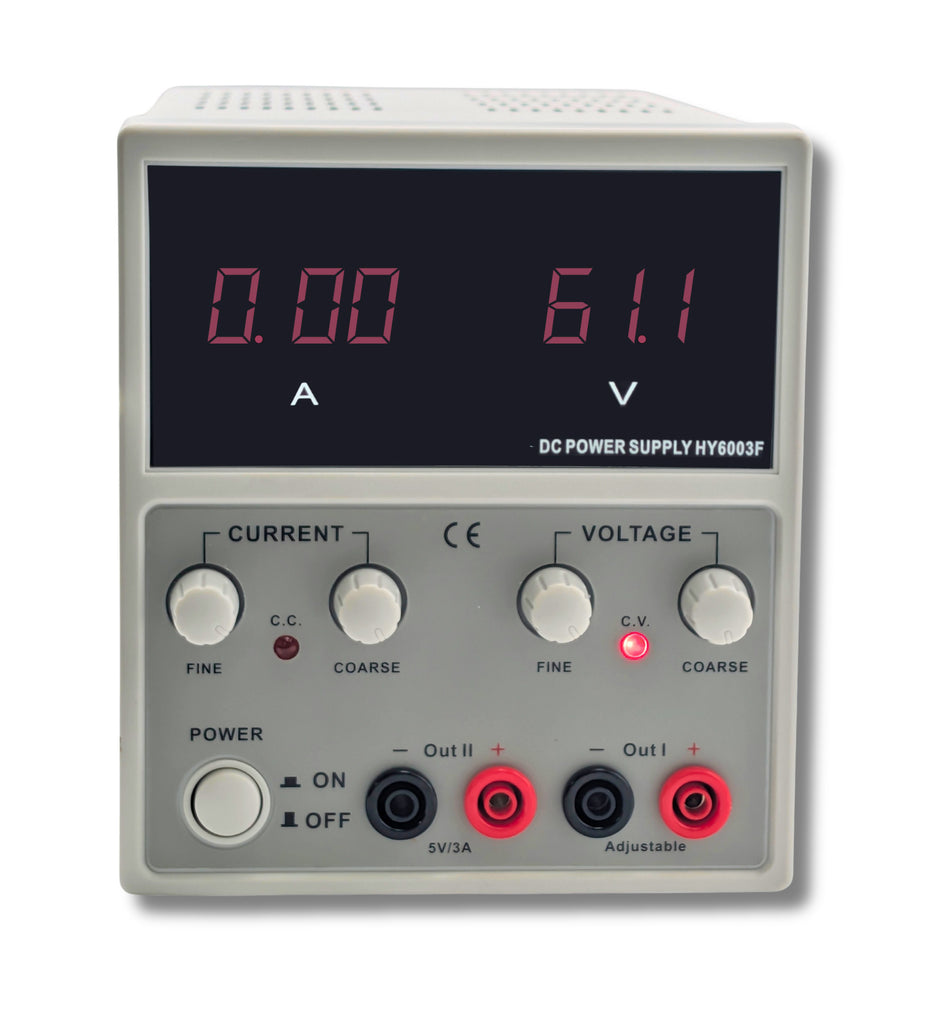

Variable DC Power Supply, 0-60V, 0-3A, Output 1 Adjustable, Output 2 Fixed @5V/3A

SKU: 01HY6003F

Shipping calculated at checkout.

Description

Voltage adjustable 0-60V
Current adjustable 0-3 Amp
Output 1 Adjustable, Output 2 Fixed @5V/3A
LED displays for both current and voltage
Constant Voltage (CV) and constant current (CC) operations, Auto CV/CC switch
Coarse and Fine control for voltage and current
Over current protection, Over voltage protection and Over temperature protection
Short circuit protection by current limitation
Intelligent cooling fan

Specifications:

Constant voltage operation
Line regulation	≤0.01%+5mV
Load regulation	≤0.01%+5mV
Ripple & Noise	≤10mVrms
Constant current operation
Line regulation	≤0.1%+5mA
Load regulation	≤0.1%+5mA
Ripple & Noise	≤10mArms
Display
Voltmeter	4 digits LED display
Ammeter	4 digits LED display
Accuracy	±(1% reading+1 digit)
General
Protection	Over current protection, fixed 105% of rated current.Over temperature protection: when internal temperature reaches 100ºC±10ºC, OTP is activated and the output will be shut down.Short circuit protection by current limitation
Operating environment	0ºC~40ºC, ≤80%RH
Storage environment	-10ºC~70ºC, ≤70%RH
AC input	AC110V±10%, 50/60Hz
Accessories	Power cord x1, Operation manual x1
Dimensions	5.2" x 5.6" x 11.5"
Weight	Approx. 10 lbs
