A handy portable power supply with a variable output voltage of 15VDC. Mounted in a rugged bakelite case. Do it your self kit form makes a great educational project.

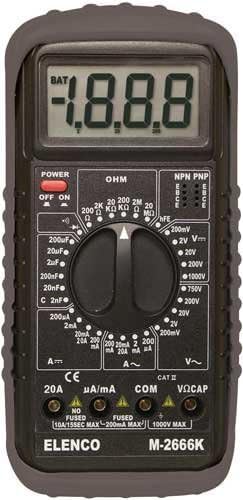

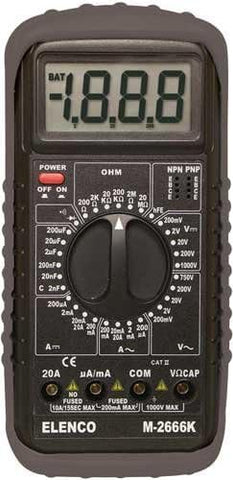

Features:
- Extra large 1”, 3 1/2 digit display
- Transistor tester
- Overload protection
- Capacitance to 200µF
- Diode test
- Audio continuity
- AC/DC current to 20A
- Low battery indication
- Rubber holster
- Tilt stand
- Safety input sockets & test leads.
- Do it your self kit form
- Makes a great educational project
Specifications:
- AC + DC Volts: 200mV, 2V, 20V, 200V, 1,000V, 750VAC
- Accuracy DC: +/-(0.5% rdg + 2dgt)
- Accuracy DC 1,000V: +/-(0.8% rdg + 2dgt)
- Accuracy AC 200m, 750V: +/-(1.5% rdg + 2dgt)
- Accuracy AC 1mV-100mV: +/-(1.0% rdg + 2dgt)
- Resolution: 100µV
- AC + DC Current: 200µA, 2mA, 20mA, 200mA, 20A
- Accuracy DC 200µA-20mA: +(1.5% rdg + 2 dgt)
- Accuracy DC 200mA: +(2.0% rdg + 2 dgt)
- Accuracy DC 20A: +(2.5% rdg + 3 dgt)
- Accuracy AC 200µA-20mA: +(1.0% rdg + 3 dgt)
- Accuracy AC 200mA: +(1.5% rdg + 3 dgt)
- Accuracy AC 20A: +(2.0% rdg + 3 dgt)
- Resolution: 0.1µA
- Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
- Accuracy 200Ω: +(1.0% rdg + 2 dgt)
- Accuracy 2kΩ - 2MΩ: +(0.8% rdg + 3 dgt)
- Accuracy 20MΩ: +(2.0% rdg + 4 dgt)
- Resolution: 0.1O
- Capacitance: 2nF, 20nF, 200nF, 2µF, 20µF, 200µF
- Accuracy 2nF - 20µF: +(2.5% rdg + 3 dgt)
- Accuracy 200µF: +(5.0% rdg + 3 dgt)
- Resolution: 1pF
- Size: 7 1/2” (H) x 3 1/2” (W) x 1 13/32” (D)
- Accessories: Test leads, Manual, 9V Battery included
