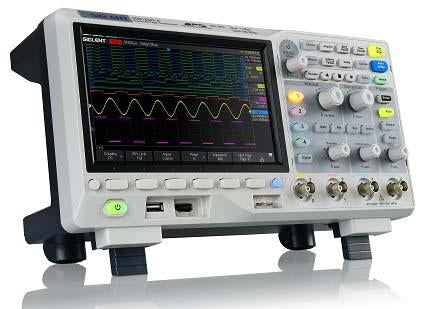

Siglent SDS1104X-E 100Mhz Digital Oscilloscope

SKU: 01SDS1104X-E

  • Sale
  • Regular price $499.00

SIGLENT�s new SDS1000X-E Super Phosphor Oscilloscopes feature two channel and four channel models. The two channel model is available with a 200 MHz analog bandwidth, a single ADC with a 1 GSa/s maximum sample rate, and a single memory module with 14 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease -of -use, the most commonly used functions can be accessed with its user- friendly front panel design.The SDS1000X-E series employs a new generation of SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT�s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million point FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT�s new SDS1000X-E cannot be matched any????? else in this price class.The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels (Option), an external USB powered 25 MHz AWG module (Option), a USB WIFI adapter (Option), and an embedded application that allows remote control via web browser.


  • 100 MHz Bandwidth
  • 1 GSa/s Real-Time Sampling Rate (Total of 2 A-D converters)
  • 14 MPts Waveform Memory
  • 500 uV/div Sensitivity
  • Maximum waveoform capture rate: 100,000 frames / second (Standard mode), 400,000 frames / sec (Sequence mode)
  • Serial bus decode & trigger: standard
  • Digital trigger provides low jitter
  • Intensity-Graded display / Color-Temperature display mode
  • Video triggering / HDTV
  • Cursors * Measurement functions
  • USB and LAN interfaces
  • 7? (diagonal) display
  • Sequence trigger mode
  • History function
  • Secure erase feature
  • Optional MSO capability
  • Bode Plot function (Requires SIGLENT SDG X or SAG1021 function generator)
  • Optional Wi-Fi dongle
  • Web-based browser remote control interface
  • Search and Navigate keys
