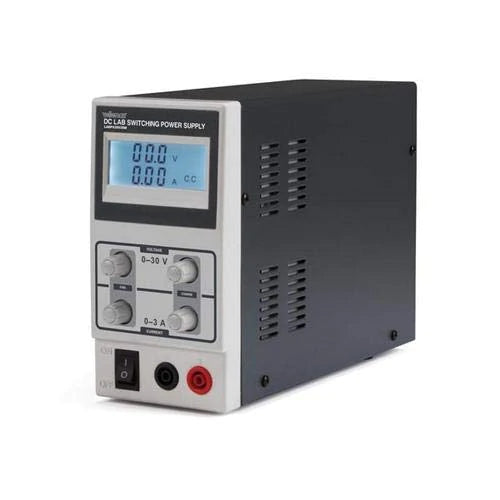

0-30 VDC 0-3A Adjustable Laboratory DC Power Supply with LCD This DC-regulated switching-mode power supply is highly accurate and has an adjustable output. The output can be used for constant voltage (C.V.) and constant current (C.C.). Both output currents and voltage are indicated on the white LCD. In constant voltage mode, output voltage can be adjusted anywhere between 0V and 30V. The current-limiting point can be arbitrarily set in this mode. In constant current mode, the output current can be adjusted continuously anywhere between 0 and 10 Amps. Features Switching model White LCD display for voltage and current Protection Mode: current-limiting Color: gray - dark gray Insulated plugs Output Connectors: IEC1010 Short-circuit protected against overload Galvanized steel housing Fuse protected.
- Input Voltage: 120 VAC 60 Hz
- Output Voltage: 0-30 VDC adjustable max.
- Switching model
- Short-circuit protected
- Fuse protected
- Output Current: 0-3 A adjustable max.
- Ripple Voltage: 200 mVp-p
- Fuse: T5
- Dimensions: 85 × 160 × 205 mm
- Weight: 1.334 kg
