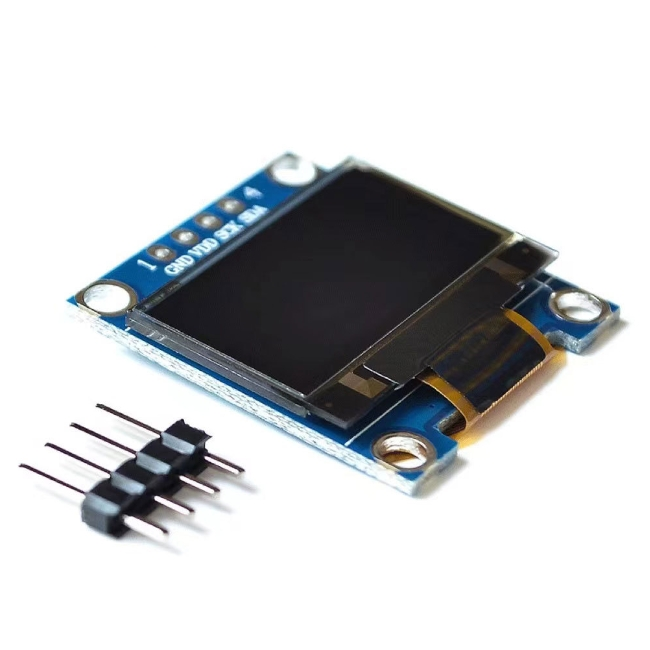

0.96" OLED IIC Display Module, Header Pin not Soldered

• IIC Interface: The IIC interface allows for easy integration and communication with a wide range of microcontrollers and development boards.
• 128x64 Resolution: High resolution of 128x64 pixels provides clear and detailed display, making it suitable for applications requiring high visual clarity.

Specifications:

• 128*64 LED display module
• Fully compatible with 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
• Ultra-low power consumption: full screen lit 0.08W
• Super high brightness and contrast are adjustable
• With embedded driver/controller
• Interface type is IIC
• Pin Definition: VCC ,GND, SCL, SDA
• Pins: 4 pins
• Voltage: 3V ~ 5V DC
• Working Temperature: -30 ℃ ~ 70 ℃
• Character Colors: Blue/White
• Drive Duty: 1/64 Duty
• High resolution: 128 * 64

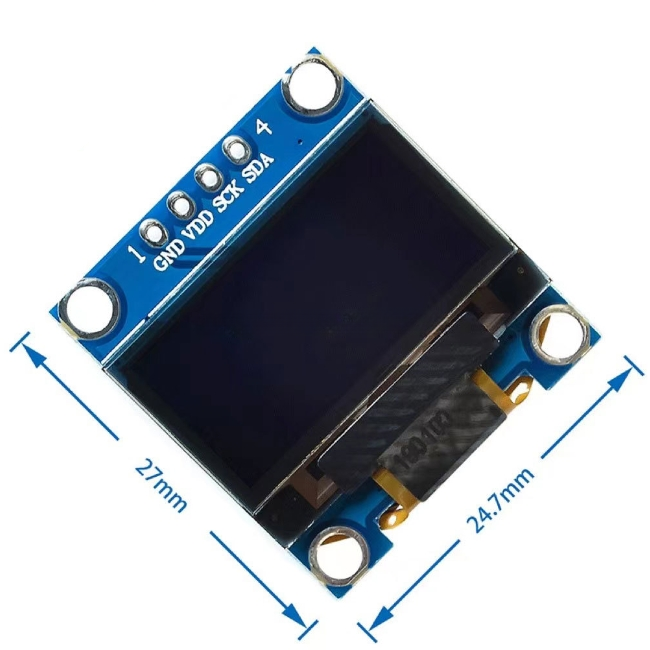

• Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
• Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
