RSR

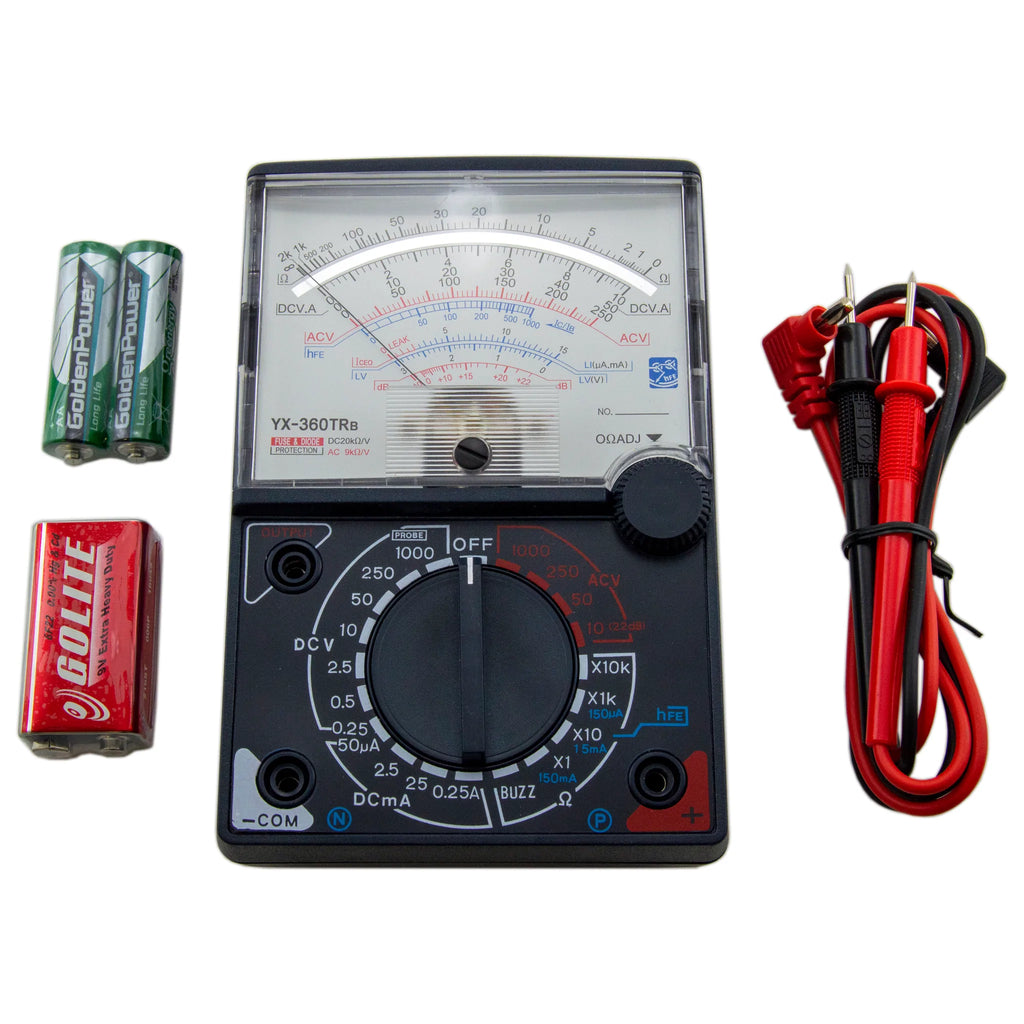

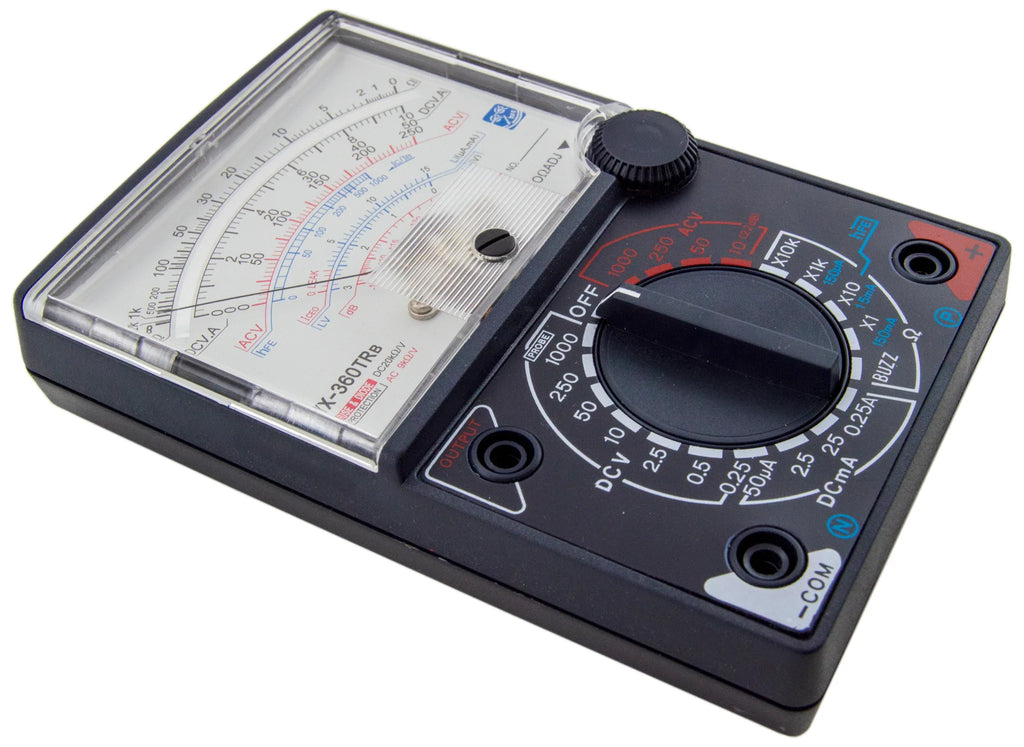

RSR Analog Meter with Leads, Model YX360TRB

SKU: 01AM360TRB

  • Sale
  • Regular price $14.95


Features:

  • Excellent DC resolution factor of 2mV and expanded resistance measurement for 0.2 ohm -20M ohm.

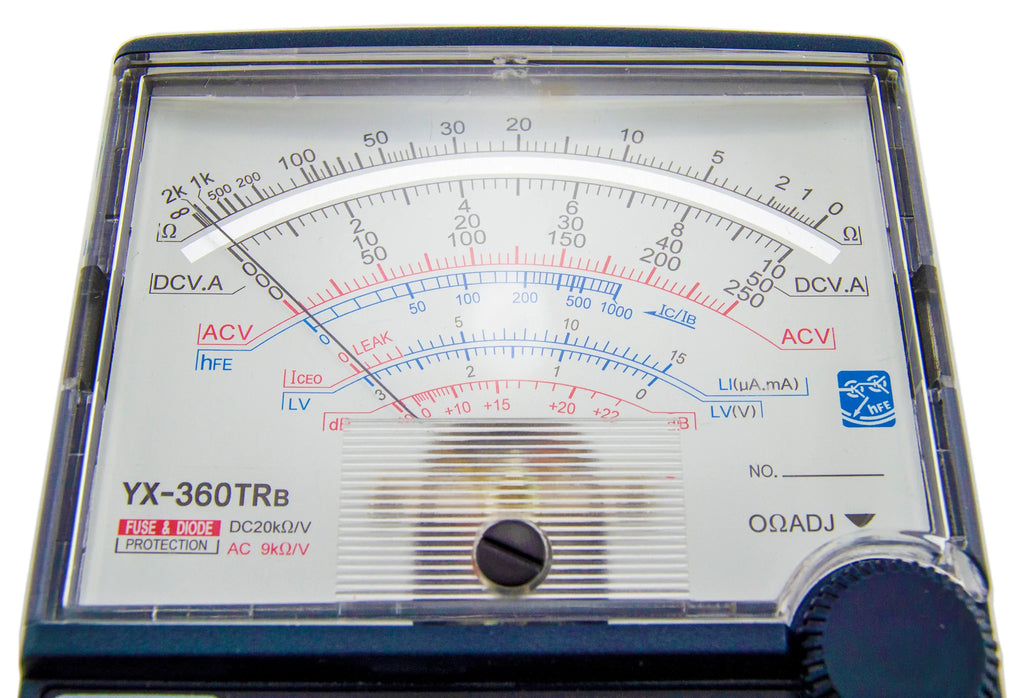

  • A large and bright meter with a scale length of 80mm and its sensitivity of 44uA at full scale.
  • Fuse and diode protection.
  • Measures hFE to 1000 using transistor testing socket.
    • Note: (hFE measurement requires an hFE connector attachment, not included)
  • DC Voltage: 0.1/0.5/2.5/10/50/250/1000V (20K ohm/V) +/- 3% f.s.
  • AC Voltage: 10/50/250/1000V (9K ohm/V) +/- 4% f.s.
  • DC Current: 50u/22.5m/25m/250mA +/- 3% f.s.
  • Resistance: 2k/20k/200k/2M/20m ohm MAX +/- 3% of arc.
  • dB: -10~62dB.
  • Power Source: (9V) X 1, (1.5V) X2
  • Dimensions/Weight: 6" x 1-1/4" x 4" / 9 oz.
