Electronix Express

Analog Multimeter, 20-range AC / DC General Purpose with 7 Functions

SKU: 01AMA7050

  • Sale
  • $33.00

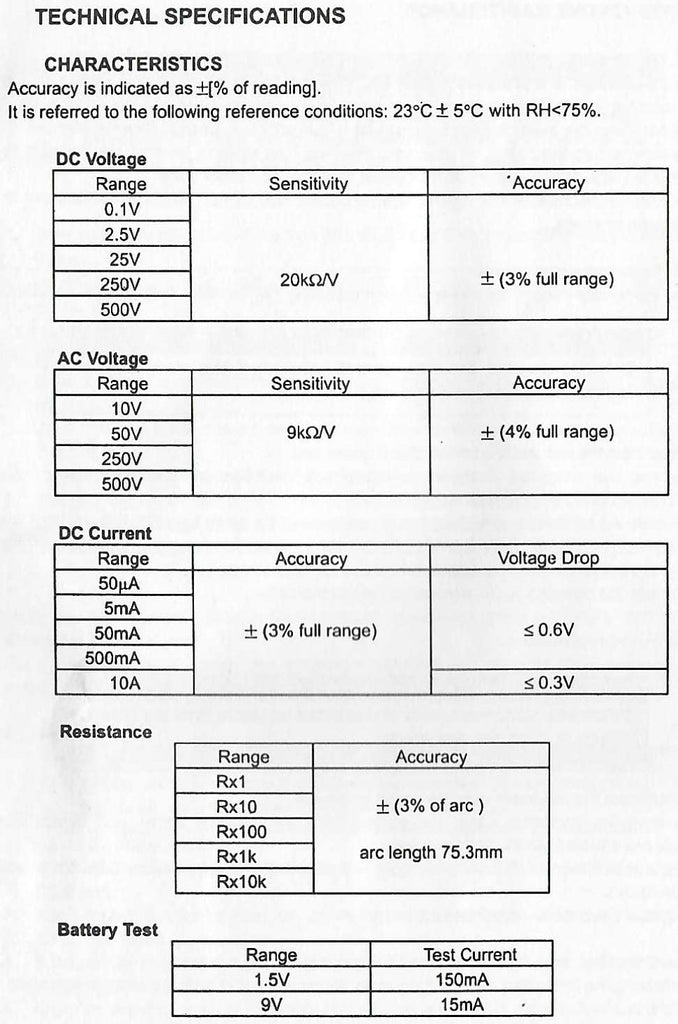

  • DC Voltage: 0~0.1/2.5/25/250/500V (20k ohm /V) +/- 3% f.s.
  • AC Voltage: 0~10/50/250/500V (9k ohm /V) +/- 4% f.s.
  • DC Current: 0~50u/5m/50m/500m/10A +/- 3% f.s.
  • Resistance: 0~2k/20k/200k/2M/20M ohm +/- 3% full arc (Arc length: 75.3mm).
  • Continuity Buzzer: R X 1 range 0~30W sound.
  • Battery Test: 1.5V (150mA)/9V (10mA).
  • Decibel: -10 ~56 dB (0dB: 0.775V 1mW 600W).
  • Power Source: 9V X 1, 1.5V X 2.
  • Fuse: 0.5A/250V 5 X 20mm fast acting 10A/250V 5 X 20mm fast acting.
  • Size: 7.5" x 4.3" x 2" (including holster) Weight: 1 lb.

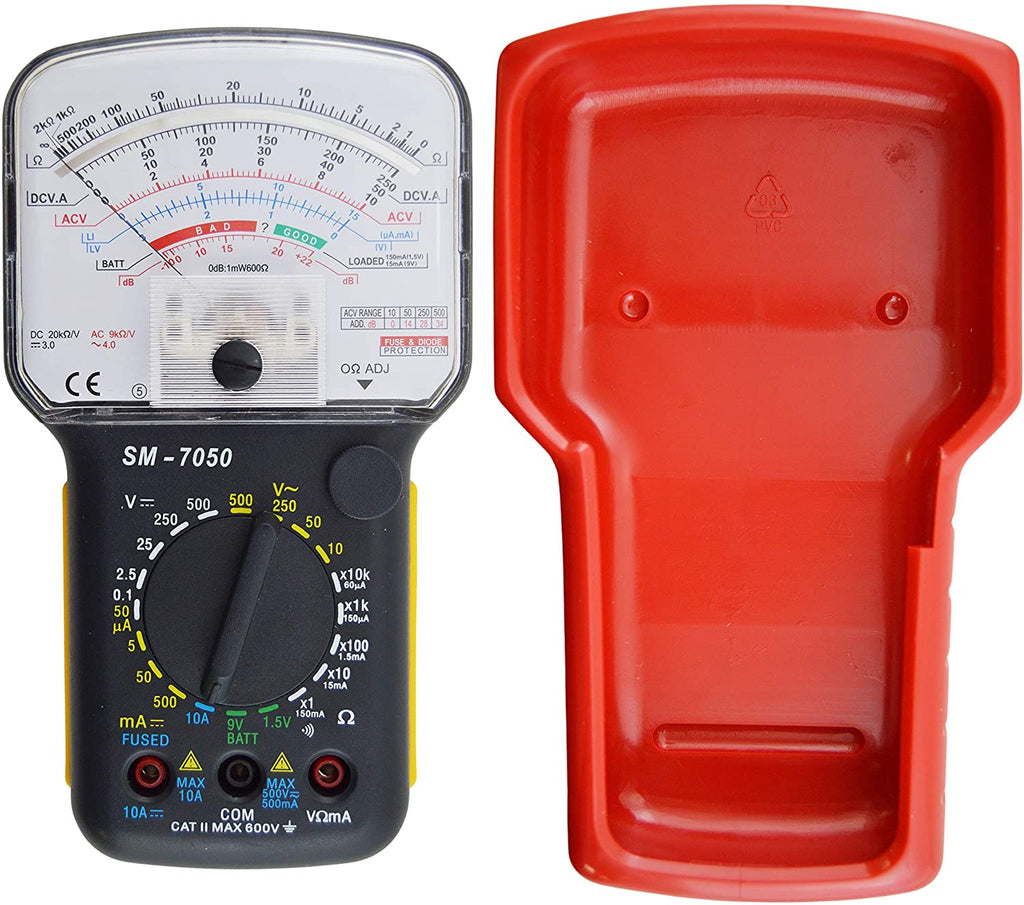

  • NOTE: Color of holster may vary

Datasheet
