DIY Analog Multimeter Soldering Practice Kit with Assembly Manual

SKU: 01AMK200

  • Sale
  • Regular price $18.95

The AMK-200 analog multitester is a compact, portable VOM (Volt-OHM-Milliamp) meter in kit form. An assembly manual is included (English language). It features 20K ohm/volt input resistance on the DC voltage scales to minimize circuit loading and improve accuracy. The 50 micro-amp meter movement is diode protected and allows a 0.1 volt full-scale range for low voltage level measurements. The AMK-200 will measure AC and DC voltage and current, resistance, and audion signal dBm. In addition, the AMK-200 can measure transistor gain (hfe) and check diode continuity.

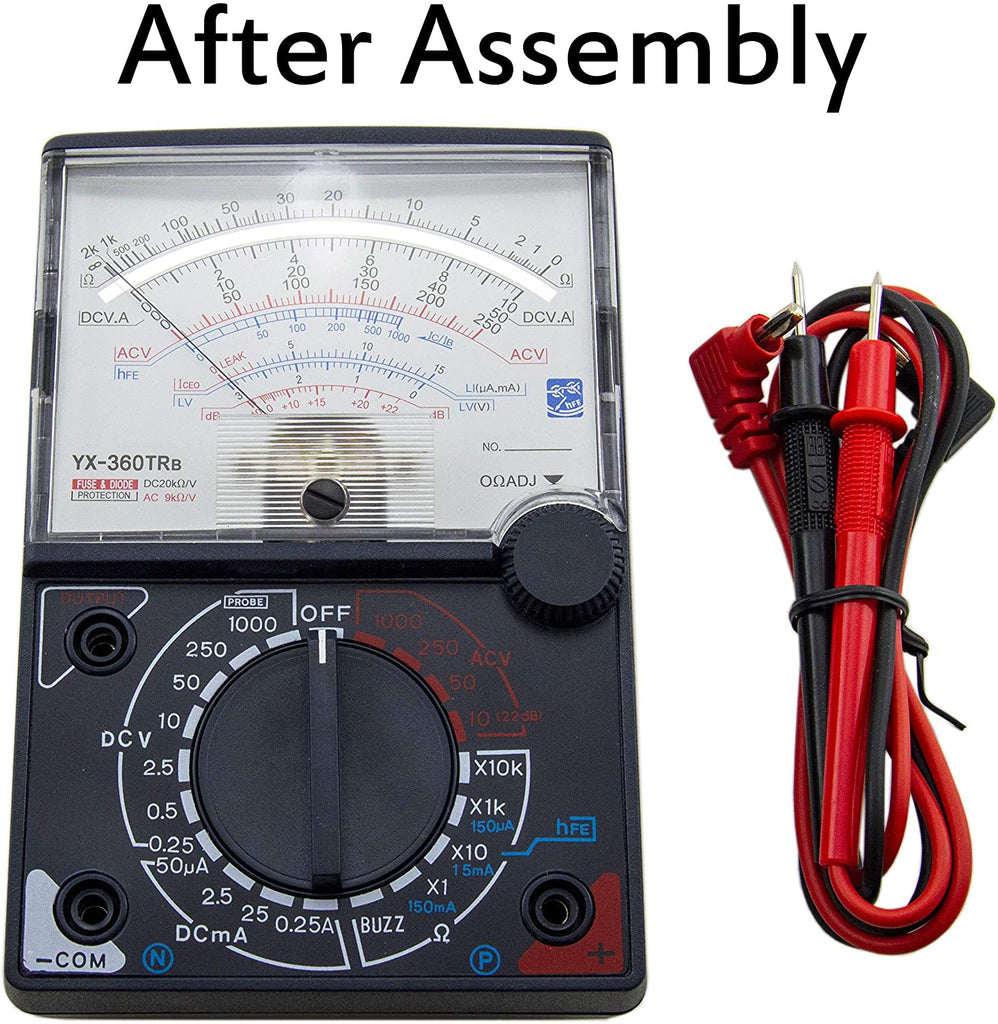

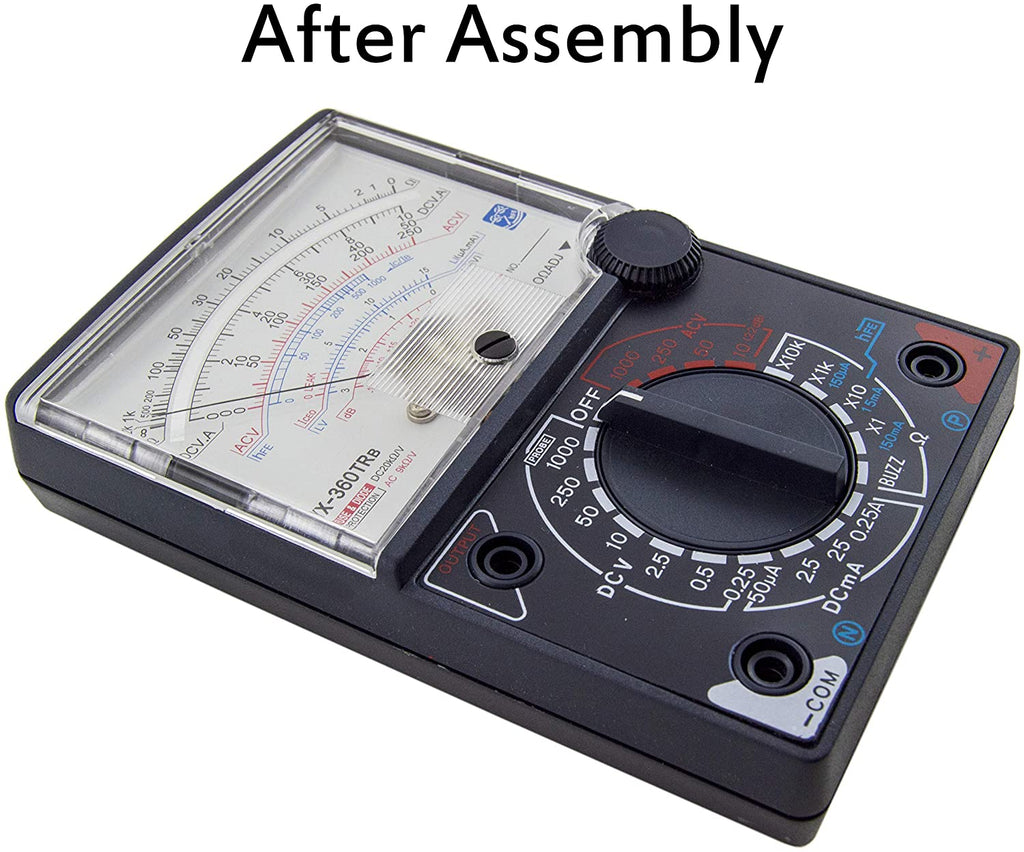

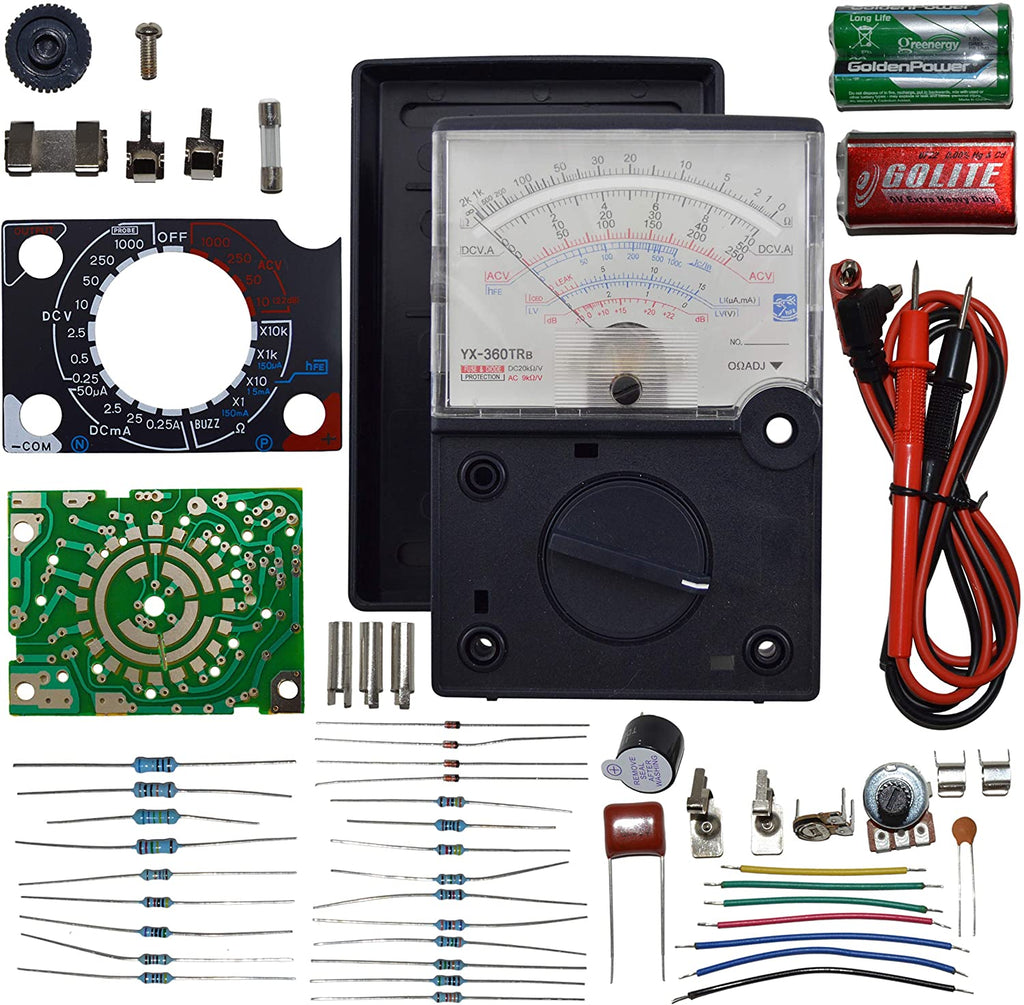

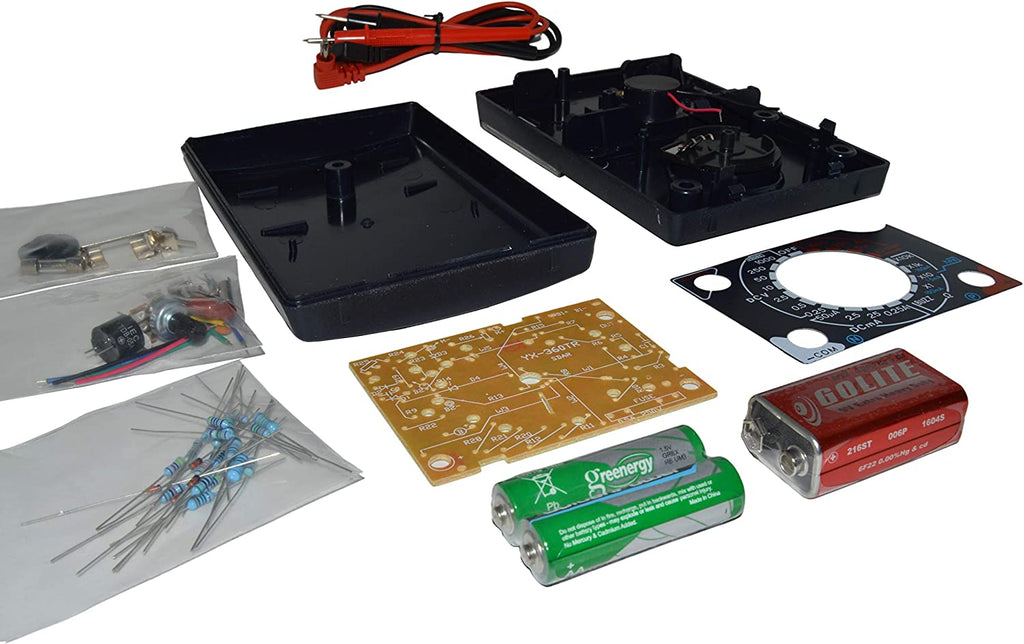

  • Build your own quality, high performance analog meter with this soldering practice kit
  • Once assembled, it measures AC and DC voltage and current, resistance, audion signal dBm, transistor gain (hfe), and checks diode continuity
  • Measures 5.82" x 3.94" x 1.41"
  • 9V and 2x AA batteries are included
  • NOTE: This kit requires assembly with a soldering iron. Soldering iron and solder are not included.


  • DC Volts: 0 to 2.5V, 10V, 50V, 250V, 1,000V.
  • AC Volts: 0 to 10V, 50V, 250V, 1,000V.
  • DC Current: 0 to 5mA, 50mA, 500mA, 10A.
  • Resistance: X1, x10, X1K.
  • Sensitivity: 20,000 ohm/V DC and 8,000 ohm/V AC.
  • DC Voltage Range: 0.1/0.5/2.5/10/50/250/1000V
  • AC Voltage Range: 10/50/250/1000V
  • DC Current Range: 50µ/2.5m/25m/0.25A
  • Resistance Range: Rx1x10x1kx10kΩ
  • Transistor Test Range: 0-1000
  • hFE Range: 0-1000V
  • Decible Range: ﹣10-﹢22dB
  • DCV Sensitivity Range: 20kΩ/V
  • ACV Sensitivity Range: 9kΩ/V
  • Size: 148x100x36mm
  • Weight: 280g

9V and 2x AA batteries are included.
