BK Precision

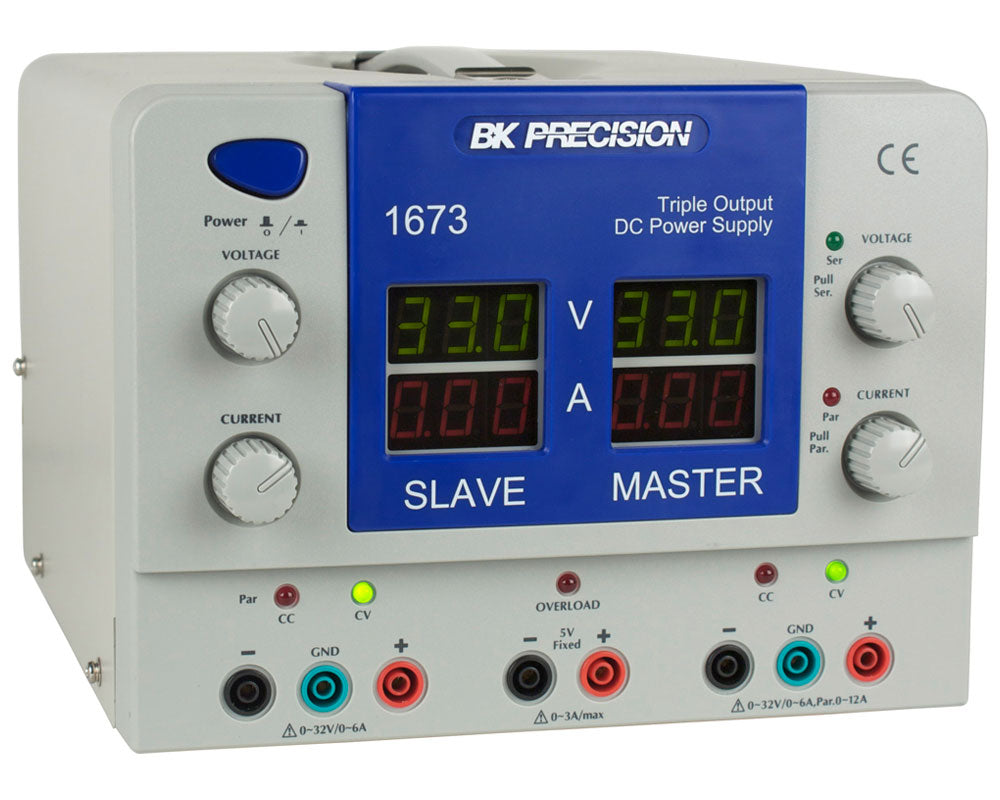

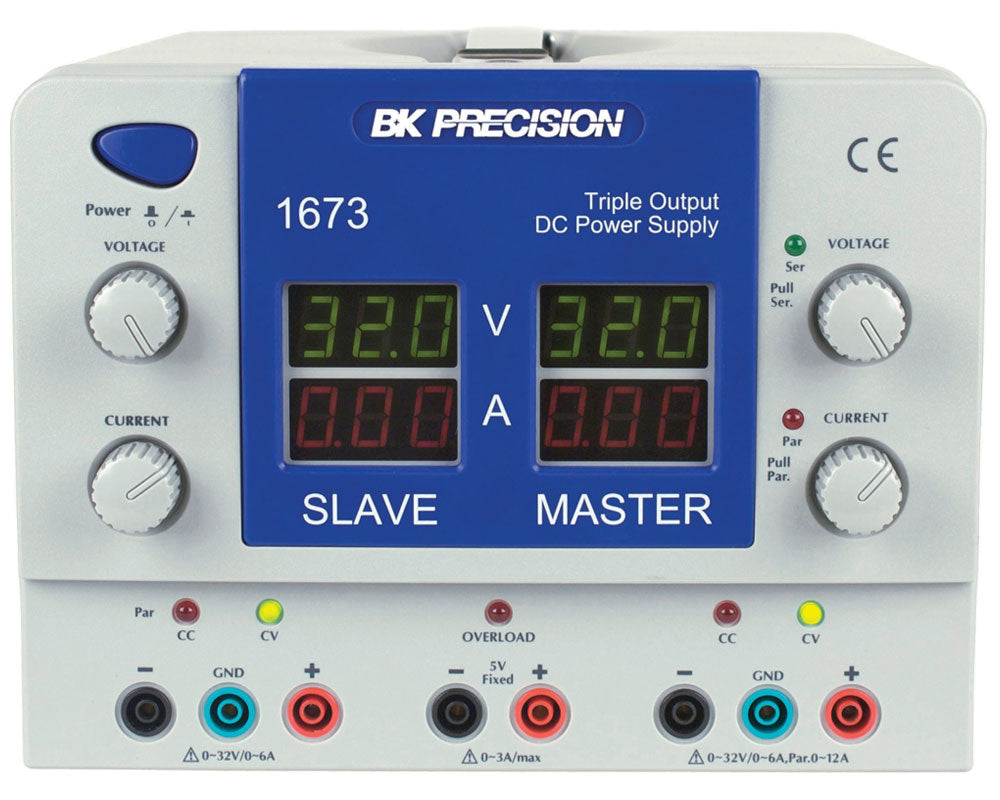

BK Precision Quad Display Triple Output DC Power Supplies Model 1673

SKU: 01BK1673

  • Sale
  • Regular price $1,045.00


The 1673 is a quad display triple output DC power supply that provides two variable outputs and one fixed output. The four displays allow the user to continuously monitor the voltage and current values of the two main outputs. The variable outputs can work independently, in series tracking, or parallel mode.

  • 0-32V, 0-6A
  • Three independent outputs
  • Independent control knobs for voltage and current settings of variable outputs
  • CV (constant voltage) and CC (constant current) operation
  • Separate 3-digit voltage and current displays for variable outputs
  • LED indication for CV and CC modes
  • Overload indication LED for fixed output
  • Series tracking and parallel tracking mode operation
  • Output terminals are banana style (not binding posts), click on Accessories for leads
