BK Precision

BK Precision DC Power Supplies 1 ~ 18V, 0 ~ 20A with USB/Software - Model 1688B

SKU: 01BK1688B

  • Sale
  • Regular price $441.00

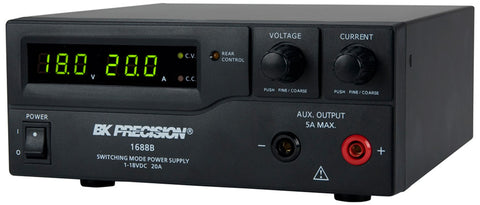

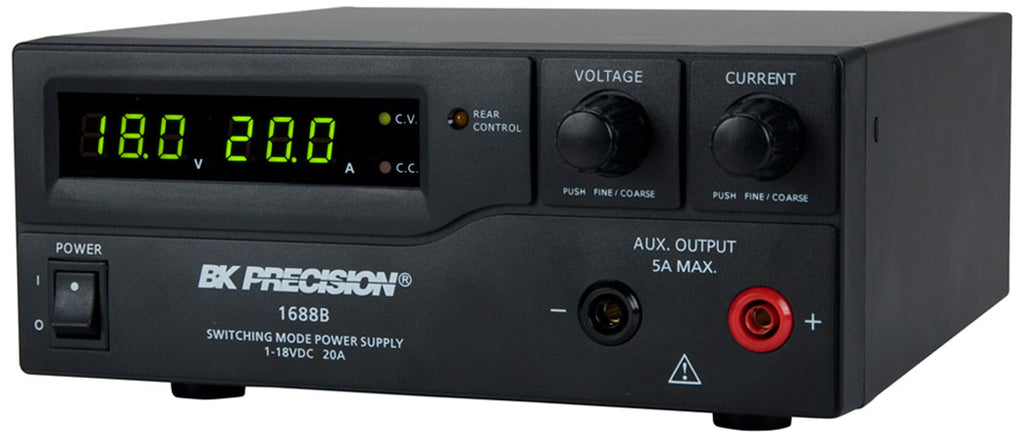

The B&K Precision 1688B switching mode DC power supply provides various configurations of high output voltage or high output current in a small, lightweight form factor. In addition to its constant voltage (CV) and constant current (CC) modes, this high efficiency DC power supply offers a unique preset and remote control modes. Up to three different presets of voltage and current values can be saved for quick recall through a rear switch. For remote control, an analog remote control terminal is accessible on the rear, or use the USB interface to communicate with the power supply via PC software or remote commands. Suitable for a wide range of applications including production testing, telecommunications, R&D, electronic field service, and university labs.

  • 1-18 V, 0-20 A
  • Automatic CV/CC crossover operation
  • Lightweight and compact
  • Rotary encoder control for precise voltage and current setting
  • 3 user-defined voltage and current presets
  • USB interface with PC software for remote control and external timed programming

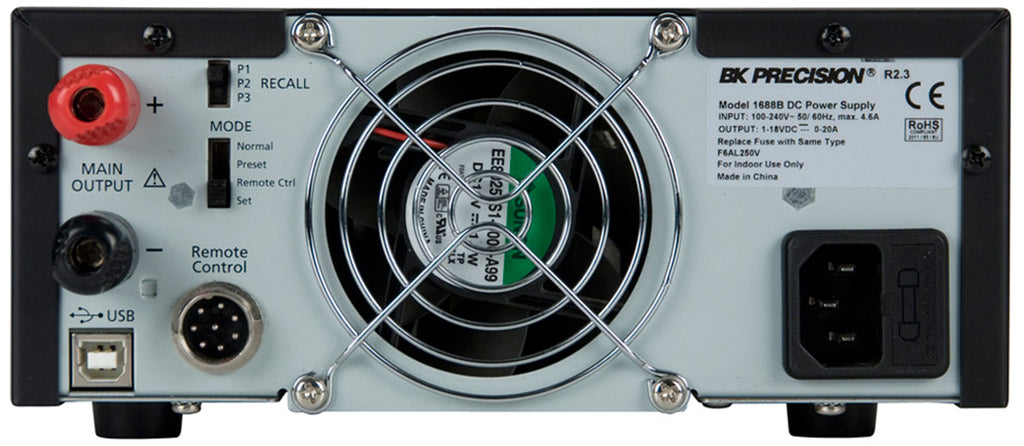

  • Analog remote control function
  • Overvoltage, overtemperature, and overload protection
