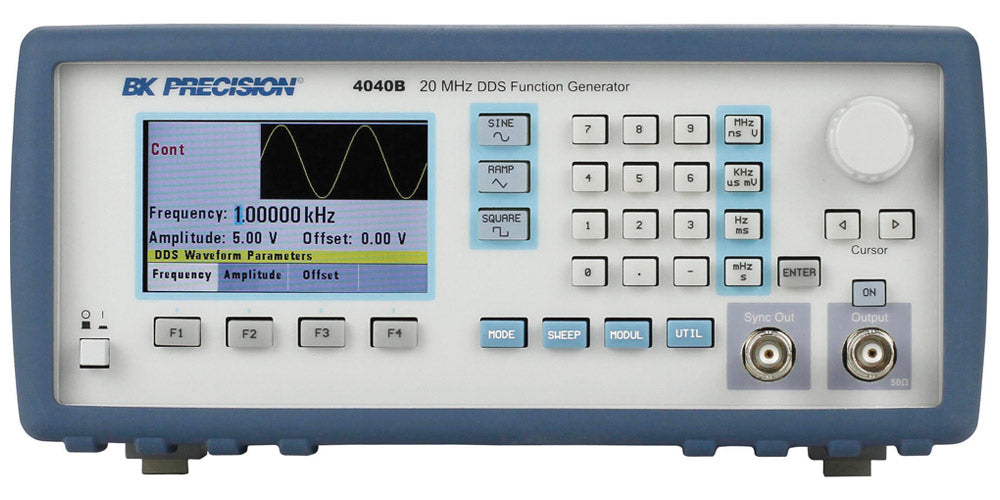

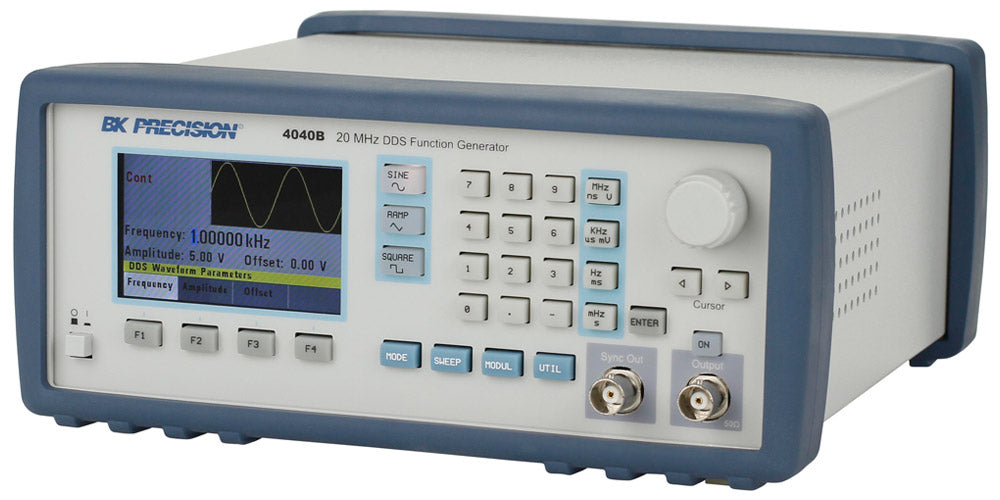

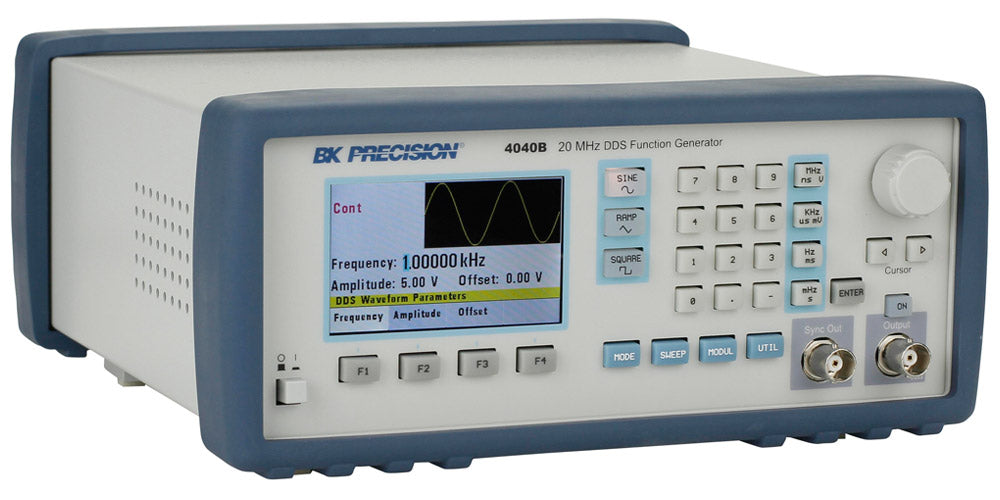

BK Precision DDS Sweep Function Generator 20 MHz - Model 4040B

SKU: 01BK4040B

  • Sale
  • Regular price $570.00


Models 4014B and 4040B are versatile sweep function generators, designed with a dual technology architecture combining direct digital synthesis (DDS) and a low-jitter square wave generator. These instruments generate sine, square, and triangle waveforms with high signal precision and stability. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

  • Sine, square, and triangle/ramp waveform generation
  • Bright color LCD display with waveform preview
  • Linear and logarithmic sweep
  • AM/FM modulation
  • Adjustable duty cycle
  • Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
  • Store and recall instrument settings
  • Output On/Off button
  • Internal/external triggering
  • Gate and burst mode (4040B only)
  • Built-in counter
  • USB interface with SCPI-compliant command set
  • Short circuit and overvoltage protection on all inputs and outputs
