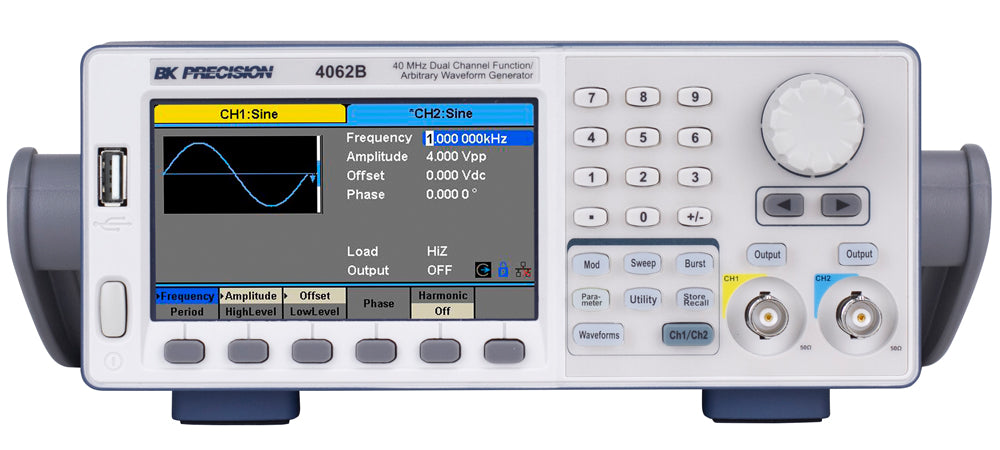

BK Precision 4062B 40 MHz Dual Channel Function/Arbitrary Waveform Generator

SKU: 01BK4062B

  • Sale
  • Regular price $995.00


The 4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms.

With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.

  • 300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
  • Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
  • 16-bit resolution, 8 Mpt arbitrary waveform length
  • Two independent channels with one button phase synchronization
  • Channel copy, track, and waveform combine functions
  • 4.3-inch touch screen display
  • Linear and logarithmic sweep
  • AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
  • Variable DC offset
  • Overvoltage protection
  • Internal/external triggering
  • Gate and burst mode
  • 196 built-in predefined arbitrary waveforms
  • Frequency counter

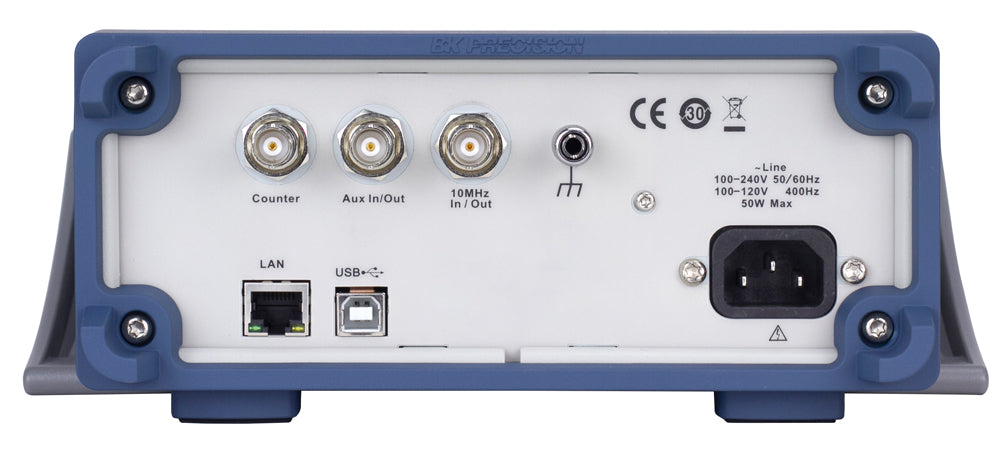

  • LAN and USB device (USBTMC-compliant) with front panel USB host port
  • GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
  • LabVIEW drivers available
