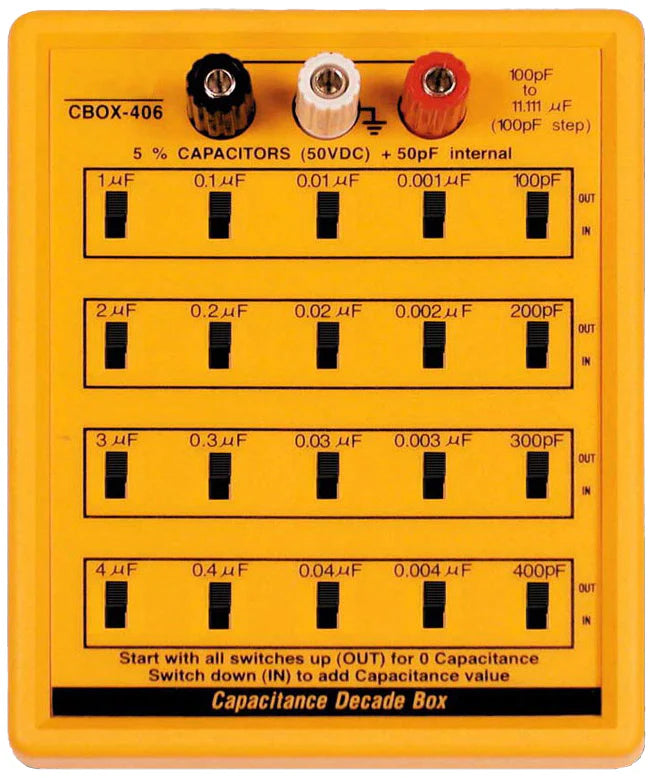

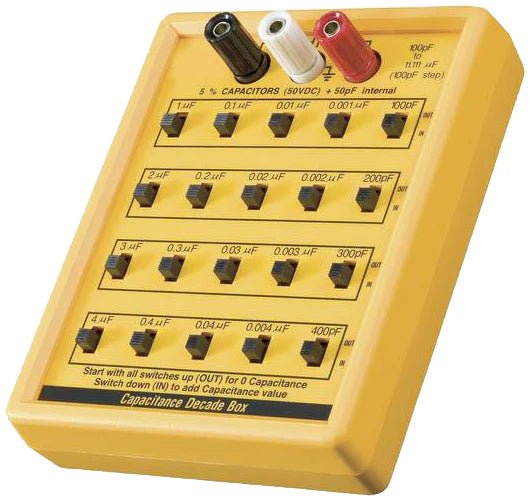

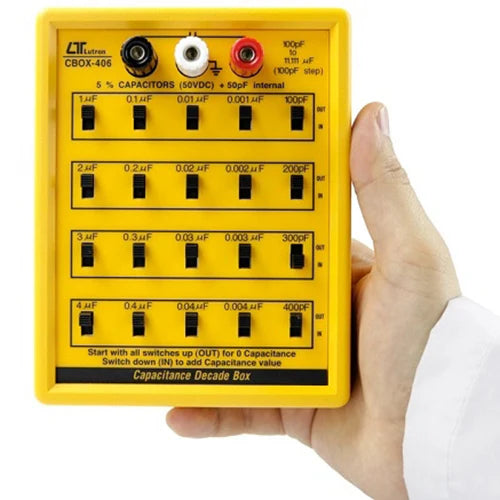

Affordable decade box with rugged quality and high precision. Perfect for educational use, R and D, service, production line testing and maintenance. Unit Features: Sturdy, multi-way binding posts, slide switches add/subtract for desired value, durable ABS plastic housing case.
- 100 pF to 11.111 uF (100 pF per step) - wide range and high resolution
- Five decades of capacitance
- Sturdy, multi-way binding posts
- Slide switches to easily add or subtract for desired value
- Durable ABS plastic housing
- Compact size 5.79" x 4.61" x 2.16"
- Perfect for educational use, R & D, service, production line testing, and maintenance
Specifications:
-
Range: 100 pF to 11.111 uF ( 100 pF per step )
-
Accuracy: ±5% capacitors used throughout
- @ < 1 uF, 1 KHz test frequency
- @ >= 1 uF, 100 Hz test frequency
-
Voltage Limit: 50 V DC, non-polarized capacitors
-
Internal Residual Capacitance: About 50 pF
-
Operating Temperature: 32 to 122℉ (0 to 50℃)
-
Operating Humidity: Less than 80% RH
-
Weight: 0.69 lb. (304 g)
-
Dimensions: 5.79" x 4.61" x 2.16" (14.7 cm x 11.7 cm x 5.5 cm)
