Rigol

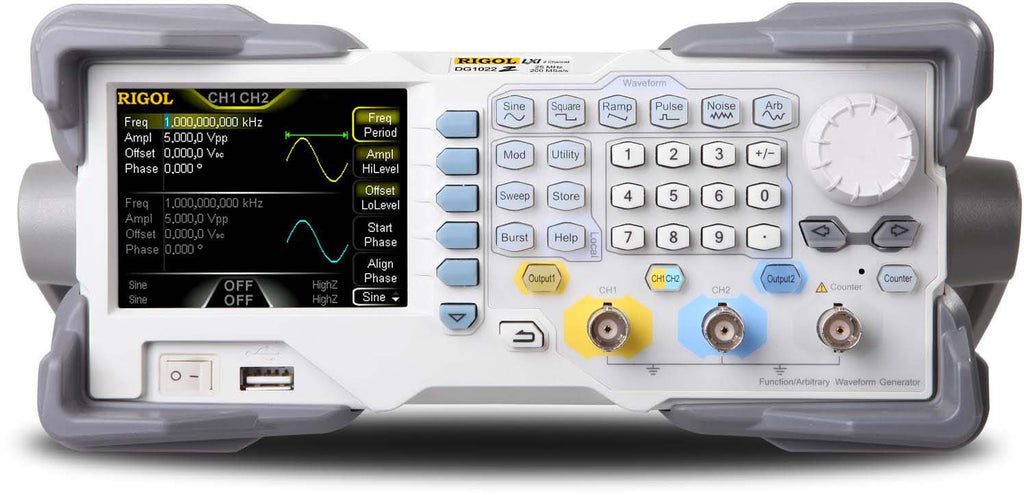

Rigol Arbitrary Function Generator 30 MHz

SKU: 01DG1022Z

  • Sale
  • Regular price $359.00


Powered by Rigol's innovative SiFi technology, the DG1000Z Series is ideal for low frequency testing applications requiring high signal fidelity, low noise floor and long arbitrary waveform length. The 2 channel DG1000Z series features Best-In-Class memory depth of 2 MPts on the DG1022Z with an available option for 16 Mpts. Optional to facilitate deeper, more intricate arbitrary waveforms and includes up to 160 built-in waveforms for quick and easy access to more predefined signals. These generators provide +/-1ppm frequency stability and -125dBc/Hz phase noise for high signal fidelity and low noise, predictable signal generation. The DG1000Z series delivers up to 200 MSa/s sample rate and 14 bits vertical resolution allowing users to achieve fine resolution and signal detail while emulating small voltage changes on a large output range. These generators offer a wide range of modulations including AM, FM, PM, ASK, FSK, PSK and PWM



Features:



  • 2 Output Channels, 25 MHz
  • Rigol's Innovative SiFi Technology
  • 2 MPts, Option for 16 MPts
  • 200 MSa/s sample rate
  • 14 bit vertical resolution

Datasheet
