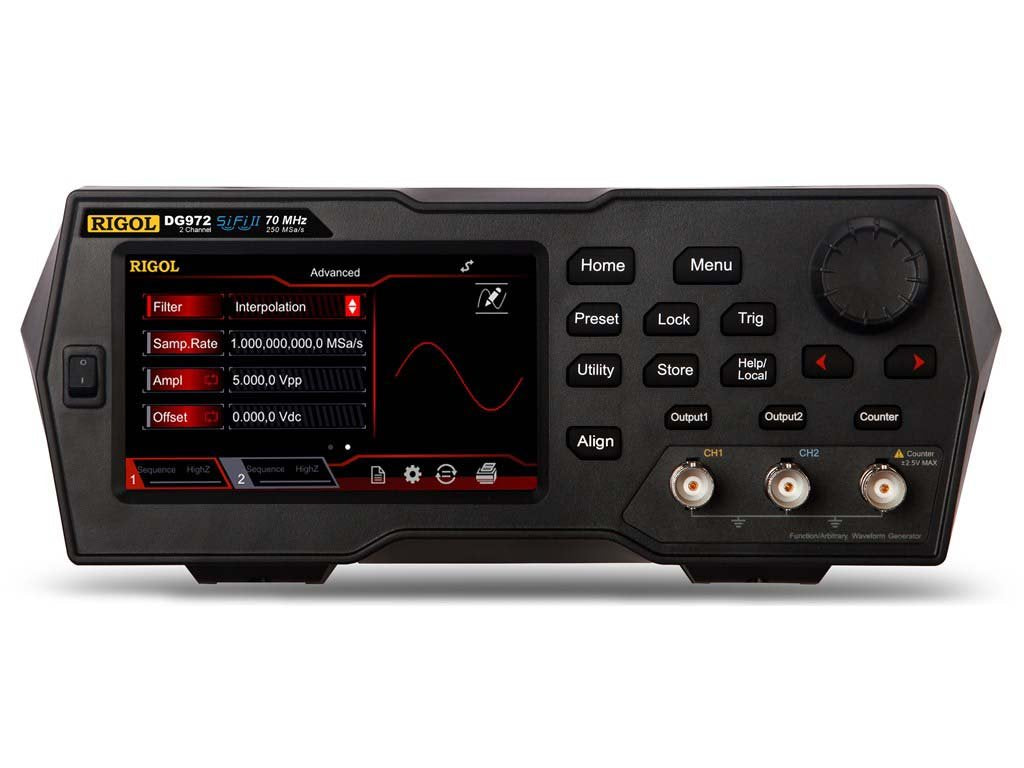

Rigol DG972 - Two Channel, 70 MHz Function / Arbitrary Waveform Generator

SKU: 01DG972

  • Sale
  • Regular price $959.00

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG900 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG900 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market. The intuitive touchscreen control and compact fanless design make it the perfect choice for your desk, bench, or lab.



  • 70 MHz function / arbitrary waveform generator
  • 16 Mpts memory depth per channel for arbitrary waveforms
  • Dual-channel performance is equivalent to two independent signal sources
  • High frequency stability: 1 ppm; low phase noise: -105 dBc/Hz
  • Built-in high-order harmonic generator (at most 8-order harmonics)
  • Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
  • 160 built-in arbitrary waveforms, covering common signals in engineering, medical and automotive electronics, math processing, and more
  • Sample rate up to 250 MSa/s, vertical resolution 16 bits
  • Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through PC software
  • Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM
  • Standard waveform combine function - capable of outputting specified waveforms combined with basic waveforms
  • Standard channel tracking function - when enabled, all parameters of both channels are updated based on users' configurations
  • USB HOST and DEVICE interface (standard);
  • USB-GPIB function supported
  • 4.3" TFT color touch screen
  • RS232, PRBS, and Dual-tone outputs supported
